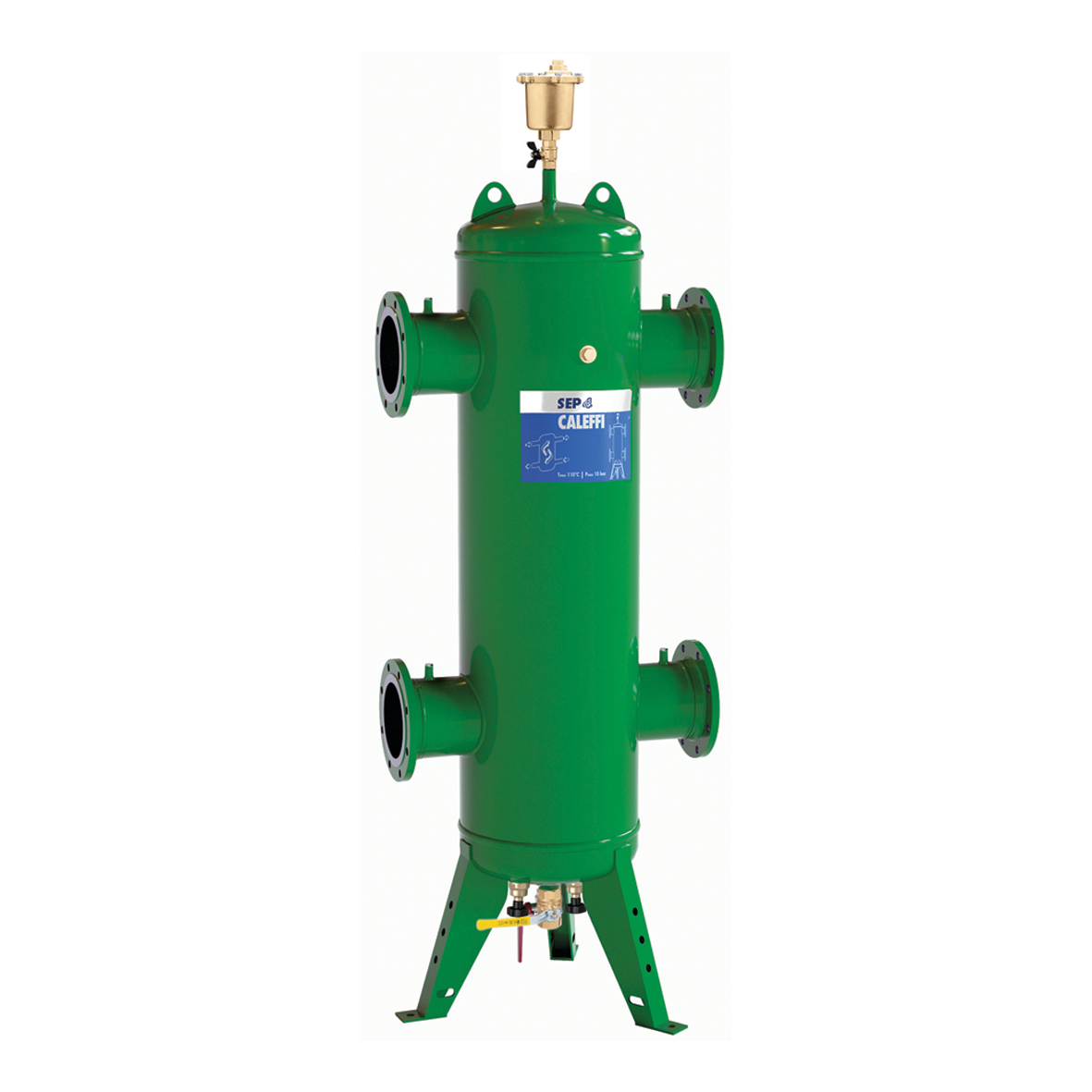

SEP4™, 4-in-1 Hydraulic Separators (ANSI flange ASME, 8-14")
Product Description
4-in-1 Hydraulic Separators (ANSI flange ASME, 8-14")
Combination: air, hydraulic, dirt, and magnetic separation
Complete with:
- Air vent isolation valve
- Drain valve
- Thermometer pockets (NPT): ½" inlet/outlet flanges, ¾" front center
Technical data
Maximum operating pressure:
150 psi
Fluid temperature range:
32–270 °F
Material:
steel
Note
NA prefix indicates ASME U-stamp tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered through 12"
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| NA549200AM | 8'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
4-in-1 Hydraulic Separators (ANSI flange ASME, 8-14")
Combination 1. air, 2. hydraulic and 3. dirt separation, plus 4. magnetic separation.
Complete with:
automatic air vent (code 501502A);
air vent shut-off valve (code NA39589);
1" drain valve NA39753 (2"— 4" sizes)
1 1/4" drain valve NA39588 (5"–6" sizes)
Three neodymium magnet assemblies. Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center. CRN registered through 12". Consult factory for 14". Connection: 8'' ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–270 °F. Material: steel.
|
|||
| NA549250AM | 10'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
4-in-1 Hydraulic Separators (ANSI flange ASME, 8-14")
Combination 1. air, 2. hydraulic and 3. dirt separation, plus 4. magnetic separation.
Complete with:
automatic air vent (code 501502A);
air vent shut-off valve (code NA39589);
1" drain valve NA39753 (2"— 4" sizes)
1 1/4" drain valve NA39588 (5"–6" sizes)
Three neodymium magnet assemblies. Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center. CRN registered through 12". Consult factory for 14". Connection: 10'' ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–270 °F.
|
|||
| NA549300AM | 12'' ANSI 150 flange ASME & CRN |
||
|
3D models
Tender text
4-in-1 Hydraulic Separators (ANSI flange ASME, 8-14")
Combination 1. air, 2. hydraulic and 3. dirt separation, plus 4. magnetic separation.
Complete with:
automatic air vent (code 501502A);
air vent shut-off valve (code NA39589);
1" drain valve NA39753 (2"— 4" sizes)
1 1/4" drain valve NA39588 (5"–6" sizes)
Three neodymium magnet assemblies. Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center. CRN registered through 12". Consult factory for 14". Connection: 12'' ANSI 150 flange, ASME & CRN. Maximum working pressure: 150 psi. Medium temperature range: 32–270 °F.
|
|||
| NA549350AM | 14'' ANSI 150 flange ASME |
||
|
3D models
Tender text
4-in-1 Hydraulic Separators (ANSI flange ASME, 8-14")
Combination 1. air, 2. hydraulic and 3. dirt separation, plus 4. magnetic separation.
Complete with:
automatic air vent (code 501502A);
air vent shut-off valve (code NA39589);
1" drain valve NA39753 (2"— 4" sizes)
1 1/4" drain valve NA39588 (5"–6" sizes)
Three neodymium magnet assemblies. Thermometer pockets (NPT):1/2" inlet/outlet flanges, 3/4" front center. CRN registered through 12". Consult factory for 14". Connection: 14'' ANSI 150 flange, ASME. Maximum working pressure: 150 psi. Medium temperature range: 32–270 °F.
|
|||
