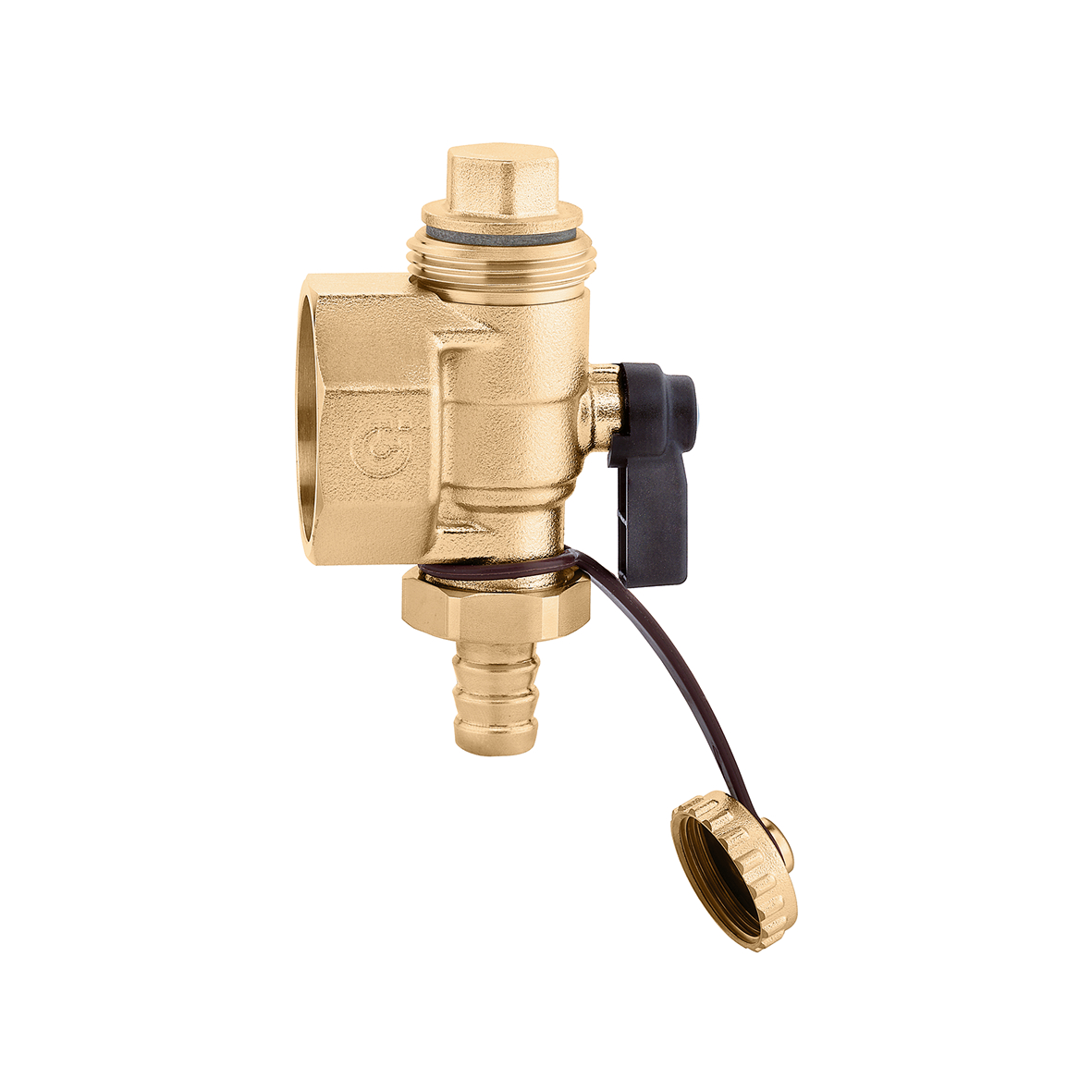

Return end fitting.
Product Description
Return end fitting.
Complete with:
- double radial fitting complete with three-position ball valve;
- by-pass connection with plug and filler/drain hose connection.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
0–100 °C
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 599675 | G 1 1/4" (ISO 228-1) F double radial connection |
||
|
3D models
Tender text
Return end fitting. Complete with:
- double radial fitting complete with three-position ball valve;
- by-pass connection with plug and filler/drain hose connection.
Connection: G 1 1/4" (ISO 228-1) F, double radial connection. Maximum working pressure: 10 bar. Medium temperature range: 0–100 °C.
SCIP code
b13006aa-a152-44d8-874f-a64ba7862fa8
|
|||
