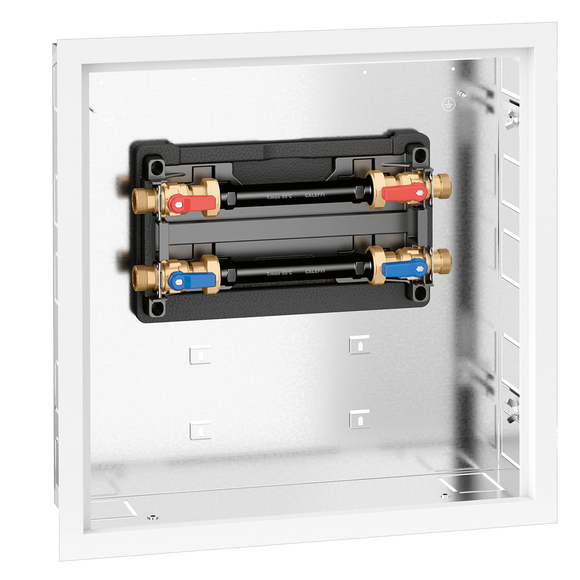

Recessed box with galvanised base and painted door for interiors.
Product Description
Recessed box with galvanised base and painted door for interiors.
Complete with:
- 2 pairs of 3/4" M ball valves;
- 2 flushing pipes for initial system cleaning. Tmax. 55°C;
- composite support bracket with thermal insulation;
- cardboard cover to protect from rubble generated during the completion of construction;
- 2 guides for positioning the 7000 series domestic water functions.
Equipped with finishing frame, the depth of which can be adjusted to between 130 and 160 mm.
For use in vertical and horizontal installations and with inlet on both the left- and right-hand side of the box.
With insulation.
Technical data
pdf
Drawings and specifications
| Part number | Connection | Use | Length |
|---|---|---|---|
| 700205 | G 3/4" A (ISO 228-1) M |
700213 007 | 480 mm |
|
Height
480 mm
|
|||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Recessed box with galvanised base and painted door for interiors. With insulation.
Complete with:
- 2 pairs of 3/4" M ball valves;
- 2 flushing pipes for initial system cleaning. Tmax. 55°C;
- composite support bracket with thermal insulation;
- cardboard cover to protect from rubble generated during the completion of construction;
- 2 guides for positioning the 7000 series domestic water functions.
Equipped with finishing frame, the depth of which can be adjusted to between 130 and 160 mm.
For use in vertical and horizontal installations and with inlet on both the left- and right-hand side of the box. Connection: G 3/4" A (ISO 228-1) M. Finish: white RAL 9010. Length: 480 mm. Depth: 130–160 mm. Height: 480 mm.
SCIP code
0965faca-641a-4792-9fb1-eac283b2893d
|
|||
