Series 6480

Pair of off-centre fittings.

Go to
Download high resolution

Product Description

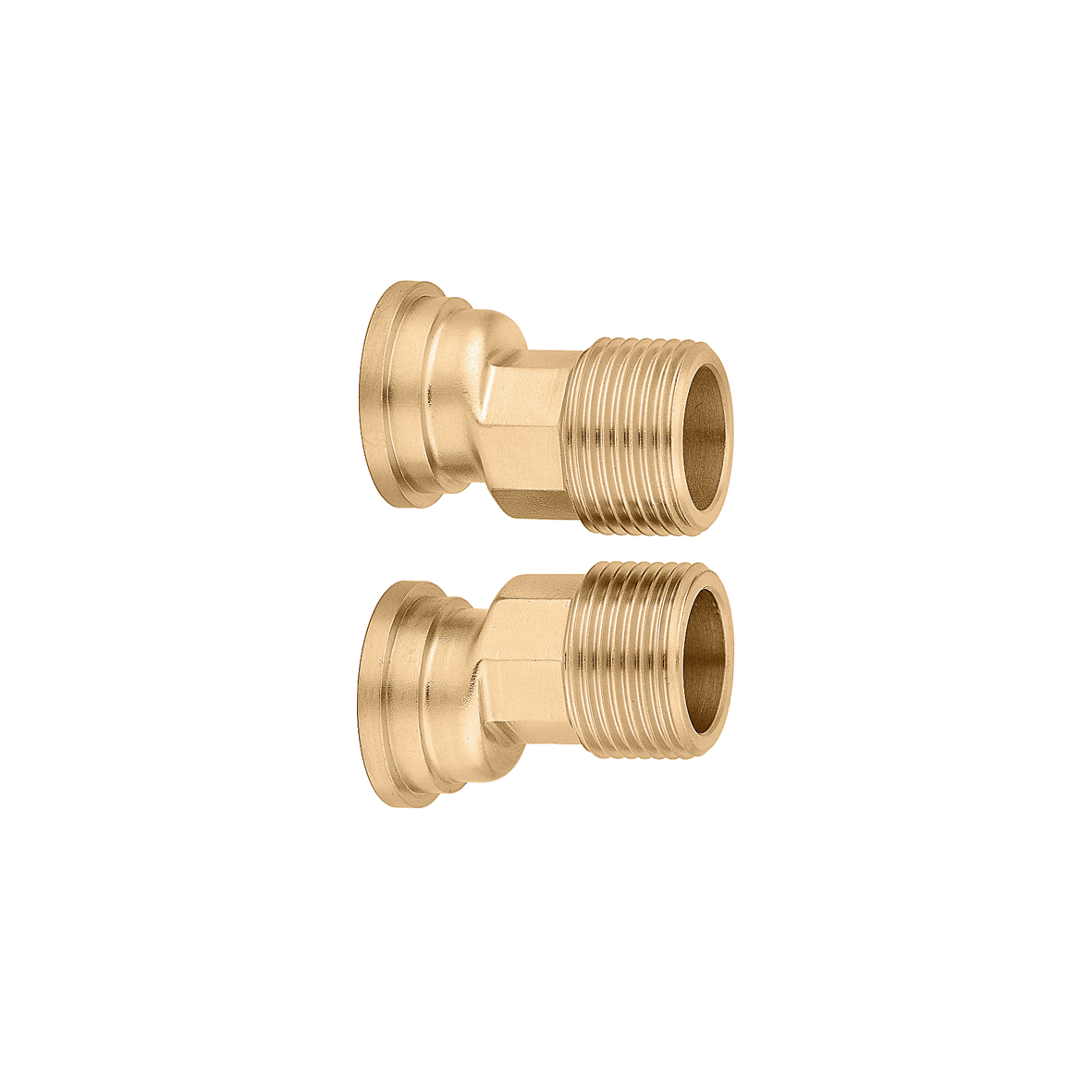

Pair of off-centre fittings.
For connecting zone valves unit 6480, 633 series and respective by-pass tee 6490, 635 series to any dual manifold with outlet centre distance between 100 and 120 mm.

Drawings and specifications

Part number Connection
3D models
Tender text
Pair of off-centre fittings. For connecting zone valves unit 6480, 633 series and respective by-pass tee 6490, 635 series to any dual manifold with outlet centre distance between 100 and 120 mm. Connection: Ga 3/4" (ISO 228-1) M.
3D models
Tender text
Pair of off-centre fittings. For connecting zone valves unit 6480, 633 series and respective by-pass tee 6490, 635 series to any dual manifold with outlet centre distance between 100 and 120 mm. Connection: Ga 1" (ISO 228-1) M.
