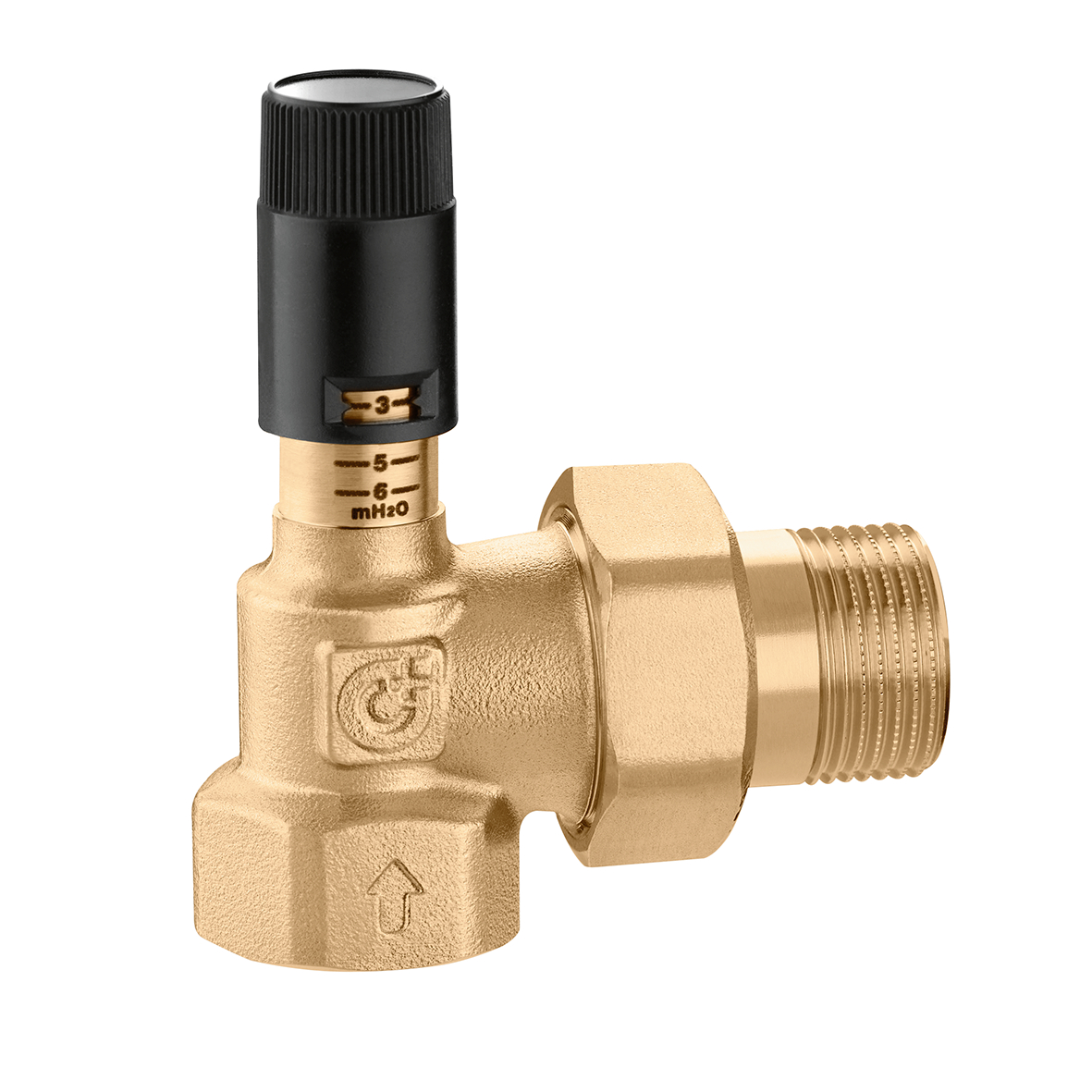

Differential by-pass valve, adjustable with graduated scale.
Product Description
Differential by-pass valve, adjustable with graduated scale.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
0–100 °C
Maximum percentage of glycol:
30 %
Medium:
water, glycol solutions
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 518500 | G 3/4" (ISO 228-1) F |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Differential by-pass valve, adjustable with graduated scale.
Connection: G 3/4" (ISO 228-1) F. Maximum working pressure: 10 bar. Medium temperature range: 0–100 °C. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions.
SCIP code
03f61e06-3fac-471c-a353-83a21cdddae6
|
|||
| 518002 | Ø 22 |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Differential by-pass valve, adjustable with graduated scale.
Connection: Ø 22. Maximum working pressure: 10 bar. Medium temperature range: 0–100 °C. Maximum percentage of glycol: 30 %. Medium: water, glycol solutions.
SCIP code
4405c52a-edc1-4a34-ab95-a371ee95b790
|
|||
