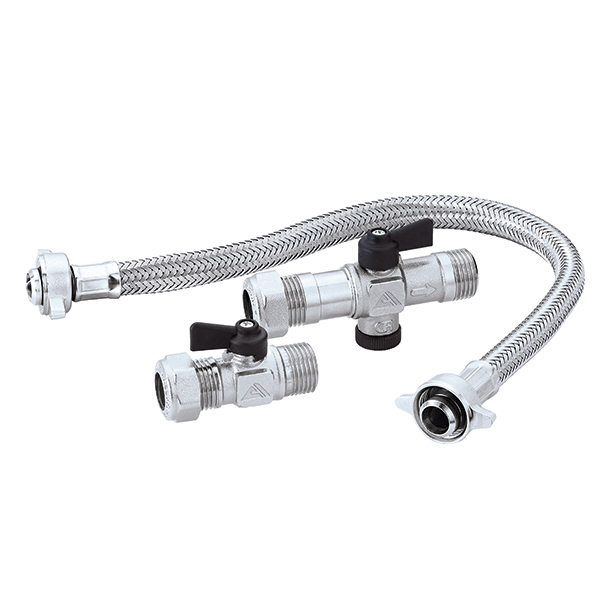

ROBOFIL, Boiler filling loop.
Product Description
Boiler filling loop.
Complete with:
- double check valve with shut-off valve;
- hose connection;
- shut-off valve.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
2–95 °C
Length hose:
0,4 m
Material:
dezincification resistant brass DR
Certifications
Download
pdf
Drawings and specifications
| Part number | |||
|---|---|---|---|
| 300600 | |||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Boiler filling loop.
Complete with:
- double check valve with shut-off valve;
- hose connection;
- shut-off valve.
Maximum working pressure: 10 bar. Medium temperature range: 2–95 °C. Length hose: 0,4 m. Material: dezincification resistant brass DR.
SCIP code
26191fd9-d162-48d4-bfa1-40c9ebcb906b
|
|||
