MINICAL, Automatic air vent.
Product Description

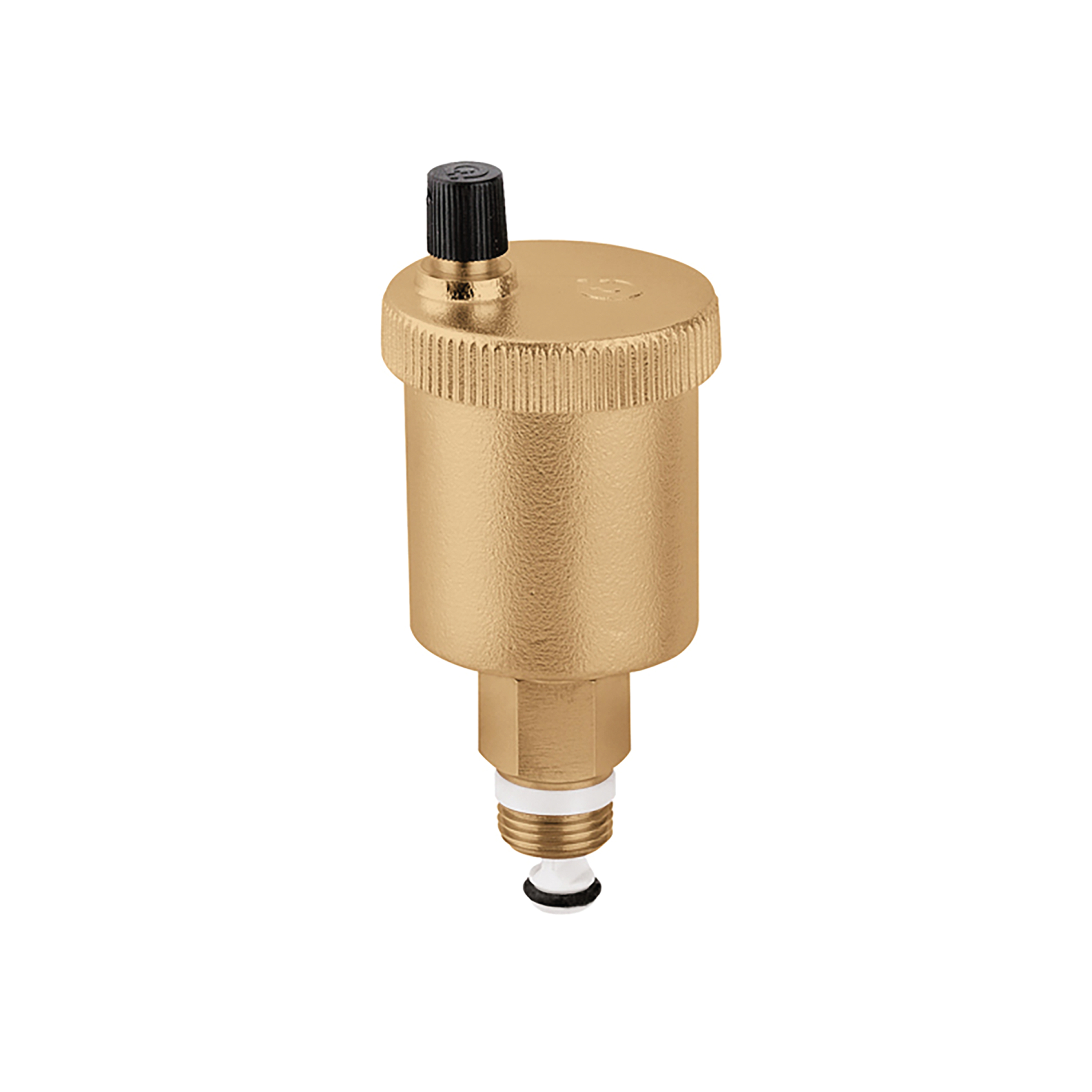

Automatic air vent.
PTFE seal connection.
With automatic shut-off cock.
Technical data
Maximum working pressure:
10 bar
Maximum air discharge pressure:
2,5 bar
Medium temperature range:
0–110 °C
Material:
brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 502130 | G 3/8" A (ISO 228-1) M |
- | |
|
2D drawings
dxf
Share this file
Download this file
dwg
Share this file
Download this file
3D models
Tender text
Automatic air vent. PTFE seal connection.
With automatic shut-off cock. Connection: G 3/8" A (ISO 228-1) M. Maximum working pressure: 10 bar. Maximum air discharge pressure: 2,5 bar. Medium temperature range: 0–110 °C. Material: brass.
SCIP code
892d1d6a-4a85-4419-a2f5-b8c767628077
|
|||
| 502140 | G 1/2" A (ISO 228-1) M |
Without PTFE seal | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Automatic air vent. PTFE seal connection.
With automatic shut-off cock. Connection: G 1/2" A (ISO 228-1) M. Maximum working pressure: 10 bar. Maximum air discharge pressure: 2,5 bar. Medium temperature range: 0–110 °C. Material: brass.
SCIP code
1312fc89-9959-4a86-8df3-b8035b9920ad
|
|||
