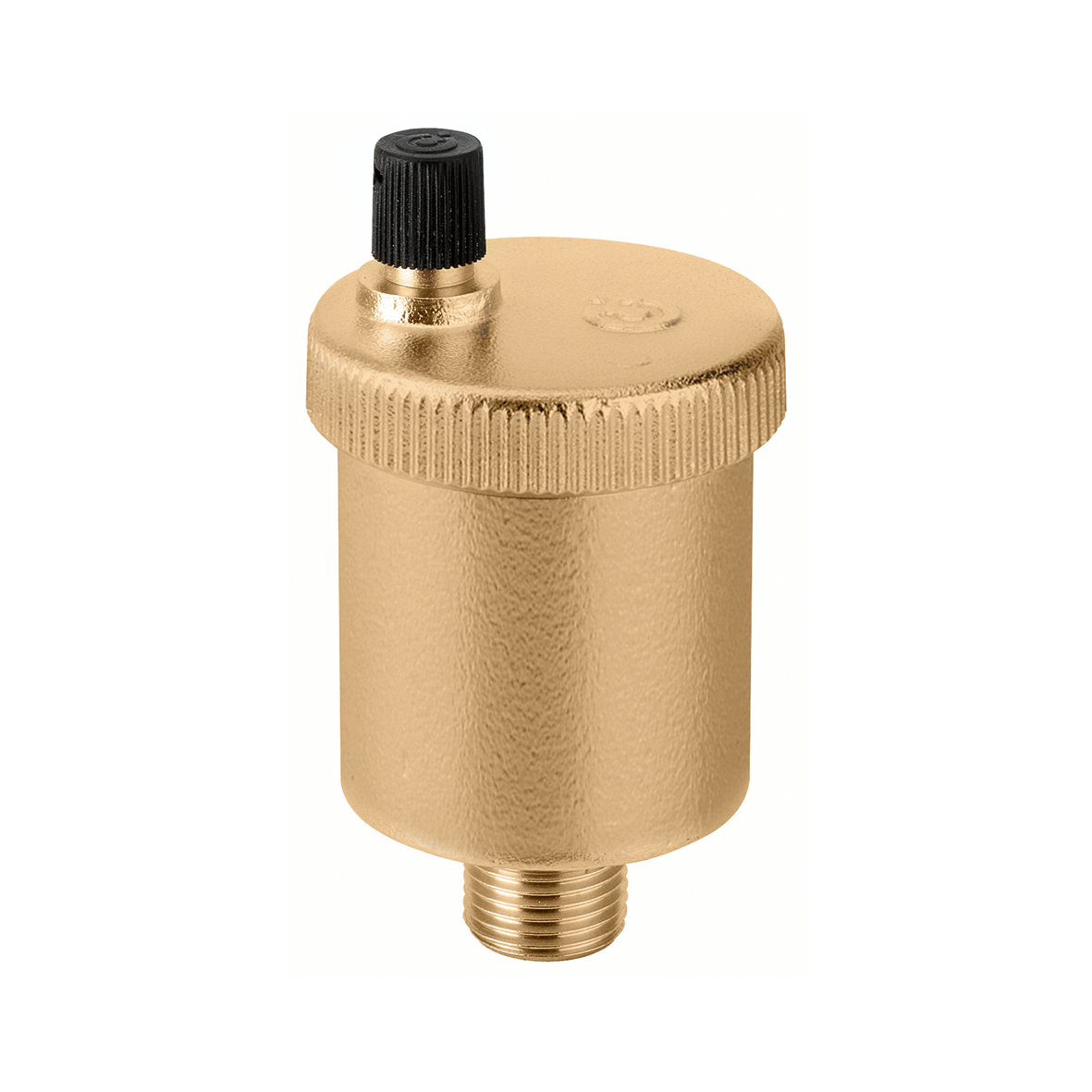

MINICAL, Automatic air vent.
Product Description
Automatic air vent.
Technical data
Maximum working pressure:
10 bar
Maximum air discharge pressure:
2,5 bar
Medium temperature range:
0–120 °C
Material:
brass
Note
The valve cap must be replaced with the Caleffi 5620 AQUASTOP® hygroscopic safety cap when installed in places that cannot be inspected.
Certifications
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 502030 | G 3/8" A (ISO 228-1) M |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
igs
Share this file
Download this file
igs
Share this file
Download this file
stp
Share this file
Download this file
stp
Share this file
Download this file
Tender text
Automatic air vent. Connection: G 3/8" A (ISO 228-1) M. Maximum working pressure: 10 bar. Maximum air discharge pressure: 2,5 bar. Medium temperature range: 0–120 °C. Material: brass.
SCIP code
cf525b49-421a-4caa-b27c-bfdde7893c2a
|
|||
| 502040 | G 1/2" A (ISO 228-1) M |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Automatic air vent. Connection: G 1/2" A (ISO 228-1) M. Maximum working pressure: 10 bar. Maximum air discharge pressure: 2,5 bar. Medium temperature range: 0–120 °C. Material: brass.
SCIP code
b52182ec-136b-46d7-b5b7-ac065b9c6d28
|
|||
bim
Pipe Sizer Caleffi
This application allows for sizing and making calculations for pipes and conduits carrying water or air, respectively for hydraulic or aeraulic plants.
