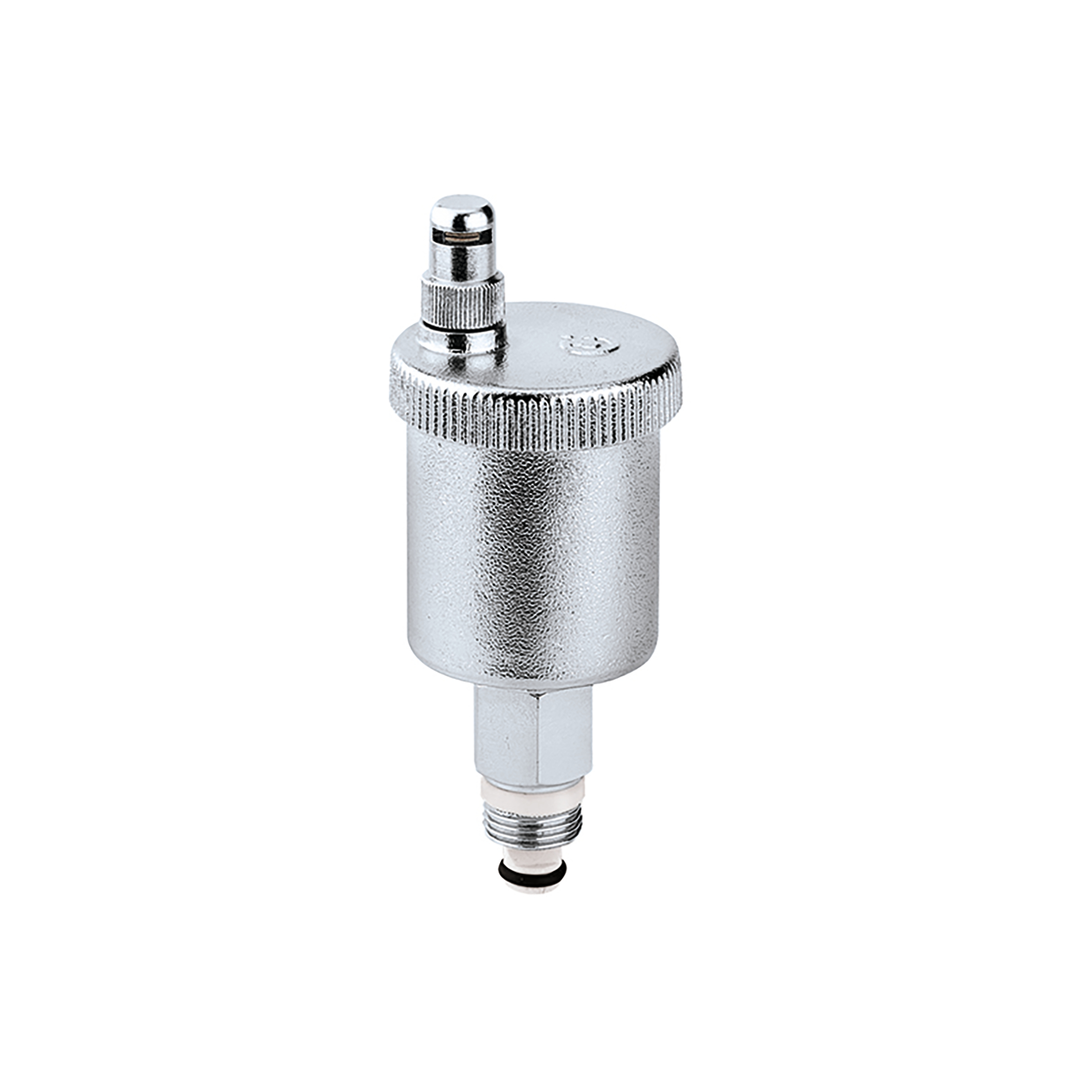

MINICAL, Automatic air vent.
Product Description
Automatic air vent.
PTFE seal connection.
With automatic shut-off cock and hygroscopic safety cap.
Technical data
Maximum working pressure:
10 bar
Maximum air discharge pressure:
2,5 bar
Medium temperature range:
0–110 °C
Finish:
nickel plated
Material:
brass
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 502132 | G 3/8" A (ISO 228-1) M |
- | |
|
3D models
Tender text
Automatic air vent. PTFE seal connection.
With automatic shut-off cock and hygroscopic safety cap. Connection: G 3/8" A (ISO 228-1) M. Maximum working pressure: 10 bar. Maximum air discharge pressure: 2,5 bar. Medium temperature range: 0–110 °C. Finish: nickel plated.
|
|||
| 502142 | G 1/2" A (ISO 228-1) M |
Without PTFE seal | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Automatic air vent. PTFE seal connection.
With automatic shut-off cock and hygroscopic safety cap. Connection: G 1/2" A (ISO 228-1) M. Maximum working pressure: 10 bar. Maximum air discharge pressure: 2,5 bar. Medium temperature range: 0–110 °C. Finish: nickel plated. Material: brass.
SCIP code
28b734b2-12f6-4c6d-b8ad-90edd0e0886d
|
|||
bim
igs
stp
