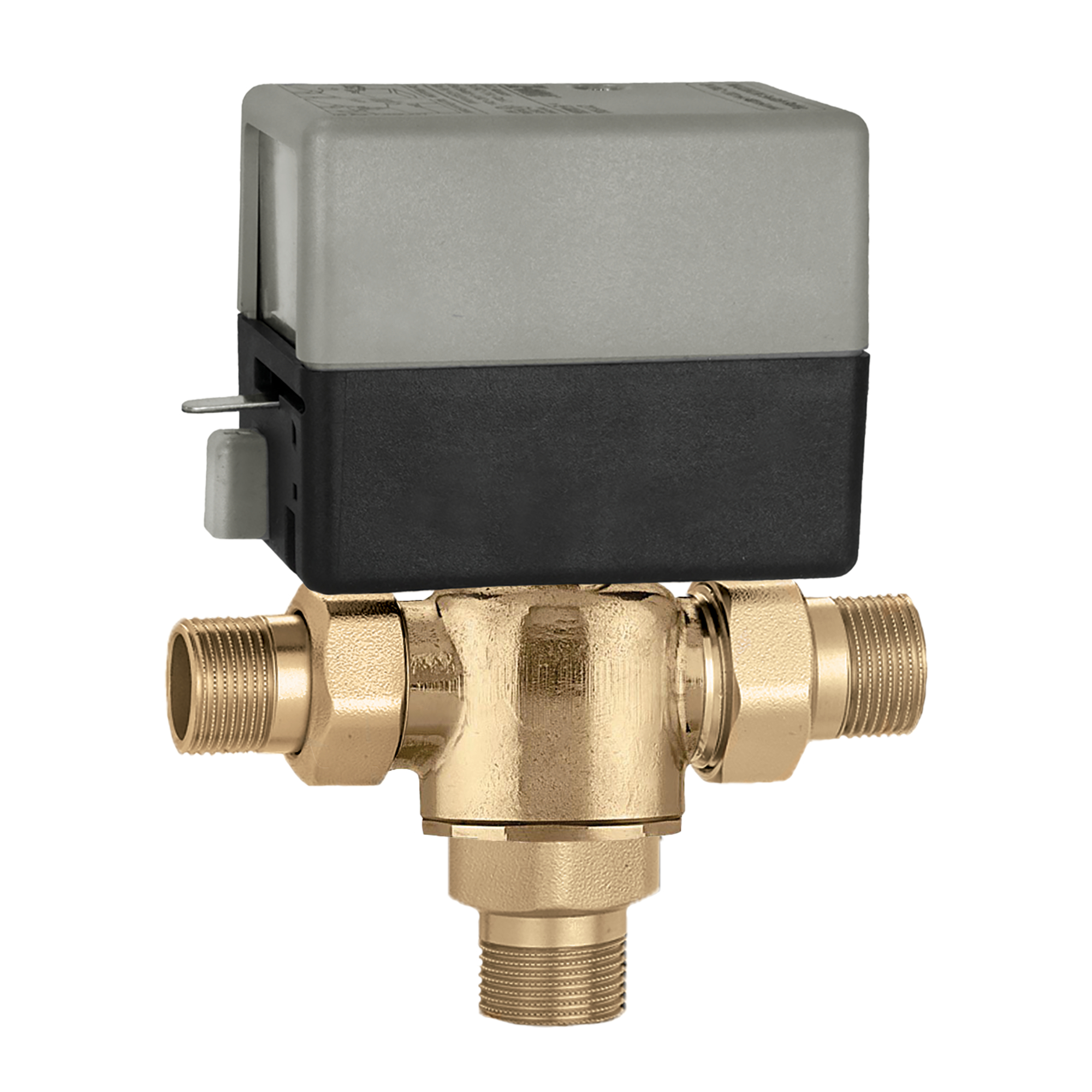

Z3 3-way diverting zone valve (low-lead)
Product Description
Z3 3-way diverting zone valve (low-lead)
Three-way on/off two position valve
Stainless steel stem
EPDM rubber seal and paddle
Technical data
Material:
brass
Medium temperature range:
32–240 °F
Maximum operating pressure:
300 psi
Certifications
pdf
Drawings and specifications
| Part number | Connection | Cv | Maximum △p |
|---|---|---|---|
| Z307433 | 1/2" sweat union |
3.5 | 30 psi |
|
3D models
Tender text
CALEFFI, Z307433.
Z3 3-way diverting zone valve (low-lead)
Three-way on/off two position valve
Stainless steel stem
EPDM rubber seal and paddle
connection: 1/2" sweat, union. Maximum operating pressure: 300 psi. Medium temperature range: 32–240 °F. Maximum △p: 30 psi. Cv: 3.5. Material: brass.
SCIP code
79cf5d9a-b286-4a9c-b143-14003d2b8555
|
|||
| Z307537 | 3/4" sweat union |
7.5 | 20 psi |
|
3D models
Tender text
CALEFFI, Z307537.
Z3 3-way diverting zone valve (low-lead)
Three-way on/off two position valve
Stainless steel stem
EPDM rubber seal and paddle
connection: 3/4" sweat, union. Maximum operating pressure: 300 psi. Medium temperature range: 32–240 °F. Maximum △p: 20 psi. Cv: 7.5. Material: brass.
SCIP code
b5747705-543f-4e9a-bc44-cacff65ebe19
|
|||
