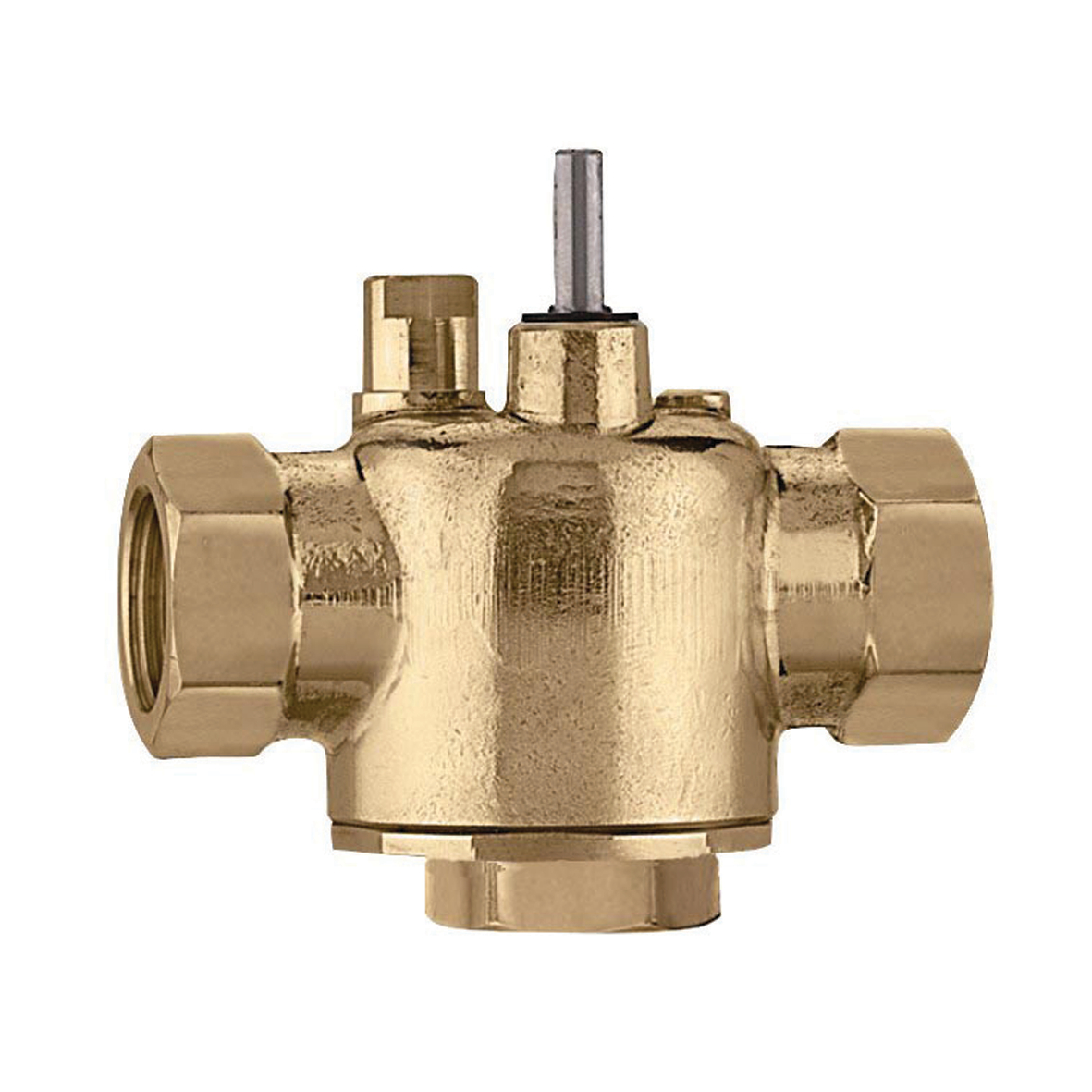

Z3 3-way diverting valve body for motorized zone valves
Product Description
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern.
Stainless steel stem.
EPDM rubber seals and paddle.
Technical data
Maximum operating pressure:
300 psi
Fluid temperature range:
32–240 °F
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | Maximum △p | Cv |
|---|---|---|---|
| Z300053 | 1/2" SAE flare |
30 psi | 3.5 gpm |
|
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" SAE flare. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 30 psi. Cv: 3.5 gpm.
|
|||
| Z300411 | 1/2" FNPT |
75 psi | 1.0 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" FNPT. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 75 psi. Cv: 1.0 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300412 | 1/2" FNPT |
50 psi | 2.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" FNPT. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 50 psi. Cv: 2.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300413 | 1/2" FNPT |
30 psi | 3.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" FNPT. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 30 psi. Cv: 3.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300431 | 1/2" sweat sweat |
75 psi | 1.0 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" sweat, sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 75 psi. Cv: 1.0 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300432 | 1/2" sweat sweat |
50 psi | 2.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" sweat, sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 50 psi. Cv: 2.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300512 | 3/4" FNPT |
50 psi | 2.5 gpm |
|
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" FNPT. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 50 psi. Cv: 2.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300513 | 3/4" FNPT |
30 psi | 3.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" FNPT. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 30 psi. Cv: 3.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300515 | 3/4" FNPT |
25 psi | 5.0 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" FNPT. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 25 psi. Cv: 5.0 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300517 | 3/4" FNPT |
20 psi | 7.5 gpm |
|
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" FNPT. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 20 psi. Cv: 7.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300532 | 3/4" sweat sweat |
50 psi | 2.5 gpm |
|
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" sweat, sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 50 psi. Cv: 2.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300533 | 3/4" sweat |
30 psi | 3.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 30 psi. Cv: 3.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300535 | 3/4" sweat |
25 psi | 5.0 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 25 psi. Cv: 5.0 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300617 | 1" FNPT |
20 psi | 7.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1" FNPT. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 20 psi. Cv: 7.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300635 | 1" sweat sweat |
25 psi | 5.0 gpm |
|
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1" sweat, sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 25 psi. Cv: 5.0 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300637 | 1" sweat sweat |
20 psi | 7.5 gpm |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1" sweat, sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 20 psi. Cv: 7.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
| Z300737 | 1 1/4" sweat sweat |
20 psi | 7.5 gpm |
|
3D models
Tender text
Z3 3-way diverting valve body for motorized zone valves
Three-way on/off two position valve.
Diverting flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1 1/4" sweat, sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Maximum △p: 20 psi. Cv: 7.5 gpm. Material: brass.
SCIP code
897c5cee-31e0-438c-b068-fb1afaa2699e
|
|||
