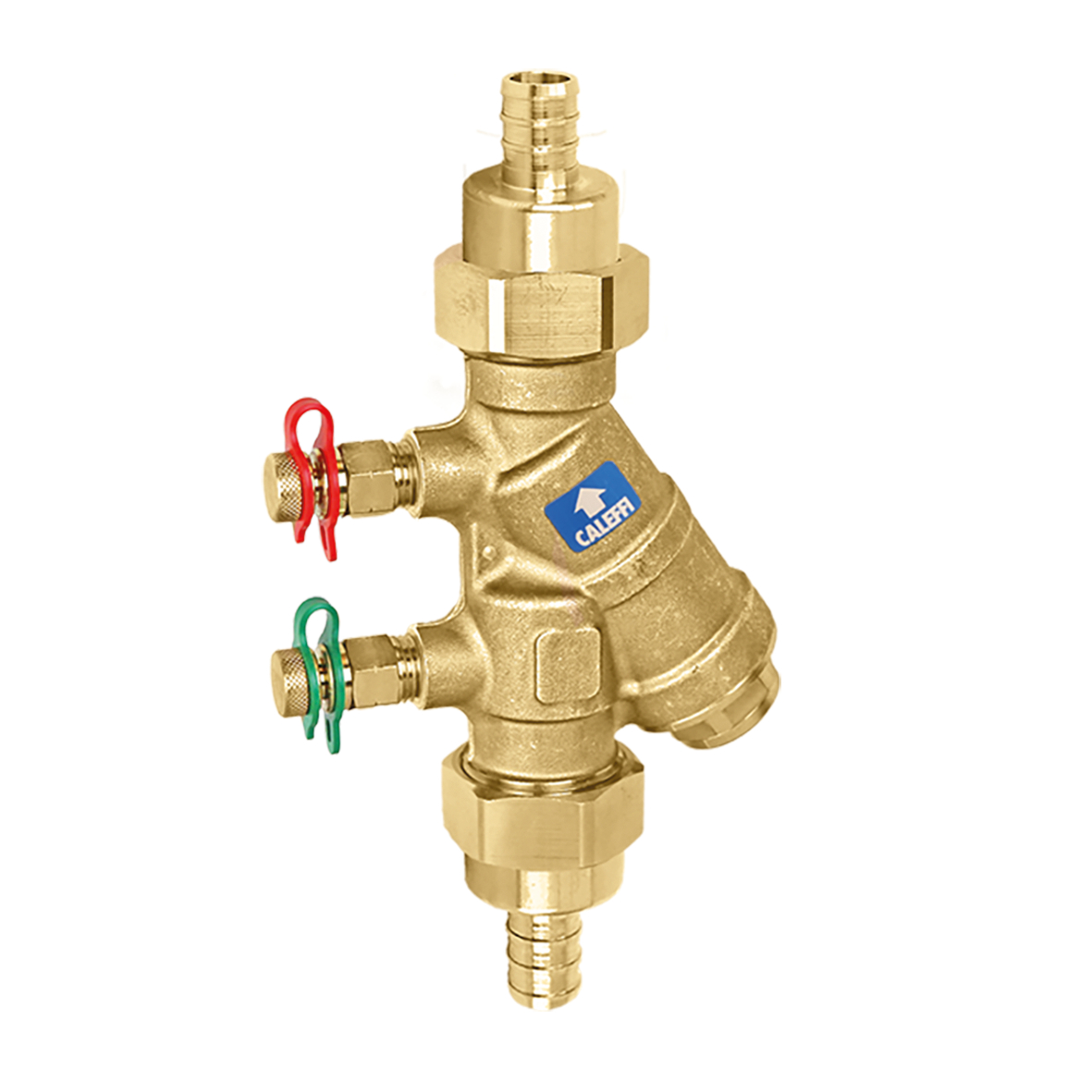

FlowCal™ PEX, Y-body automatic balancing valves.
Product Description
Y-body automatic balancing valves.
Patented anti-scale, low noise polymer FlowCal™cartridge.
PT ports included.
1⁄2" FNPT plugged blowdown port.
PEX crimp: ASTM F1807. PEX expansion: ASTM F1960.
Technical data
Maximum operating pressure:
400 psi
Medium temperature range:
32–212 °F
Maximum glycol %:
50 %
Medium:
water, glycol solutions
Flow rate working range:
0.35–10 gpm
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 128544AF*** | 1/2" PRS PEX crimp union |
PT ports | |
|
3D models
Tender text
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1/2", PEX crimp union.
|
|||
| 128554AF*** | 3/4" PRS PEX crimp union |
PT ports | |
|
3D models
Tender text
CALEFFI, 128554AF***, FlowCal™ PEX.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 3/4" PRS, PEX crimp union.
|
|||
| 128564AF*** | 1" PRS PEX crimp union |
PT ports | |
|
3D models
Tender text
CALEFFI, 128564AF***, FlowCal™ PEX.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1" PRS, PEX crimp union.
|
|||
| 128542AF*** | 1/2" PRS PEX expansion union |
PT ports | |
|
3D models
Tender text
CALEFFI, 128542AF***, FlowCal™ PEX.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1/2" PRS, PEX expansion union.
|
|||
| 128552AF*** | 3/4" PRS PEX expansion union |
PT ports | |
|
3D models
Tender text
CALEFFI, 128552AF***, FlowCal™ PEX.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 3/4" PRS, PEX expansion union.
|
|||
| 128562AF*** | 1" PRS PEX expansion union |
PT ports | |
|
3D models
Tender text
CALEFFI, 128562AF***, FlowCal™ PEX.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. PEX crimp: ASTM F1807. PEX expansion: ASTM F1960. connection: 1" PRS, PEX expansion union.
|
|||
