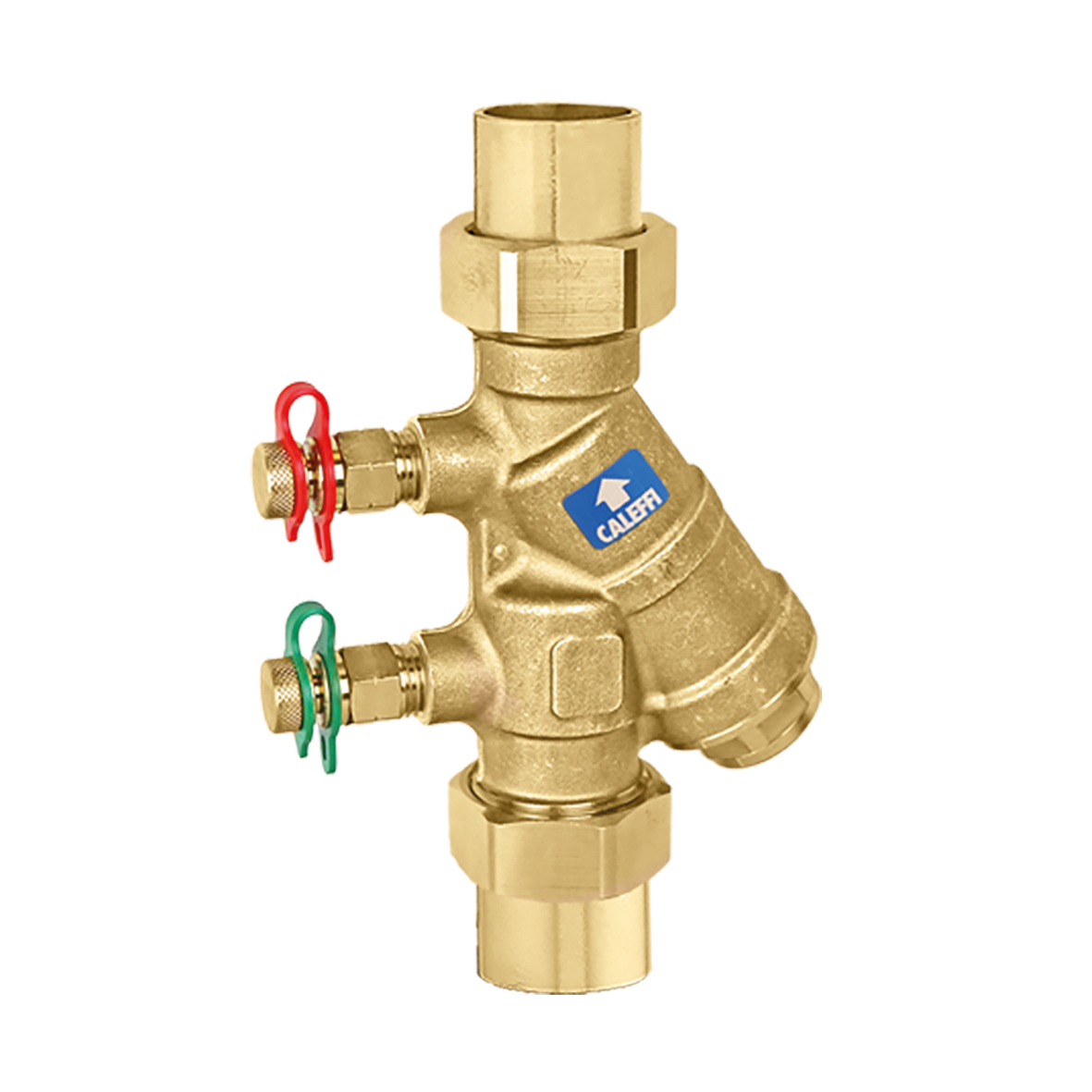

FlowCal™ sweat, Y-body automatic balancing valves.
Product Description
Y-body automatic balancing valves.
Patented anti-scale, low noise polymer FlowCal™cartridge.
PT ports included.
1⁄2" FNPT plugged blowdown port.
Technical data
Maximum operating pressure:
400 psi
Medium temperature range:
32–212 °F
Maximum glycol %:
50 %
Medium:
water, glycol solutions
Flow rate working range:
0.35–10 gpm
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 128549AF*** | 1/2" SWT union |
PT ports, check | |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 128549AF***, FlowCal™ sweat.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. connection: 1/2" SWT, union.
|
|||
| 128559AF*** | 3/4" SWT union |
PT ports, check | |
|
3D models
Tender text
CALEFFI, 128559AF***, FlowCal™ sweat.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. connection: 3/4" SWT, union.
|
|||
| 128569AF*** | 1" SWT union |
PT ports, check | |
|
3D models
Tender text
CALEFFI, 128569AF***, FlowCal™ sweat.
Y-body automatic balancing valves. Patented anti-scale, low noise polymer FlowCal™cartridge. PT ports included. 1⁄2" FNPT plugged blowdown port. connection: 1" SWT, union.
|
|||
