Solar pump station (single and dual line)
Product Description
Solar pump station (single and dual line)
Solar pump stations are pre-assembled and leak-tested. Safety relief valve.
Ball valves with built-in flow checks in return (and flow for dual-line models). Temperature gauges in return (and flow for dual-line models). Pressure gauge. Manual air vent (dual-line models only). Expansion tank connection. Connections for flushing and filling.
Pump: three speed. Pump performance: 19 ft head/8 gpm.
Technical data
Maximum operating pressure:
145 psi
Medium temperature range:
14–350 °F
Medium temperature range - Note:
without ice
Safety relief valve set:
90 psi
Flow meter scale:
1–8 gpm
pdf
Drawings and specifications
| Part number | Note | ||
|---|---|---|---|

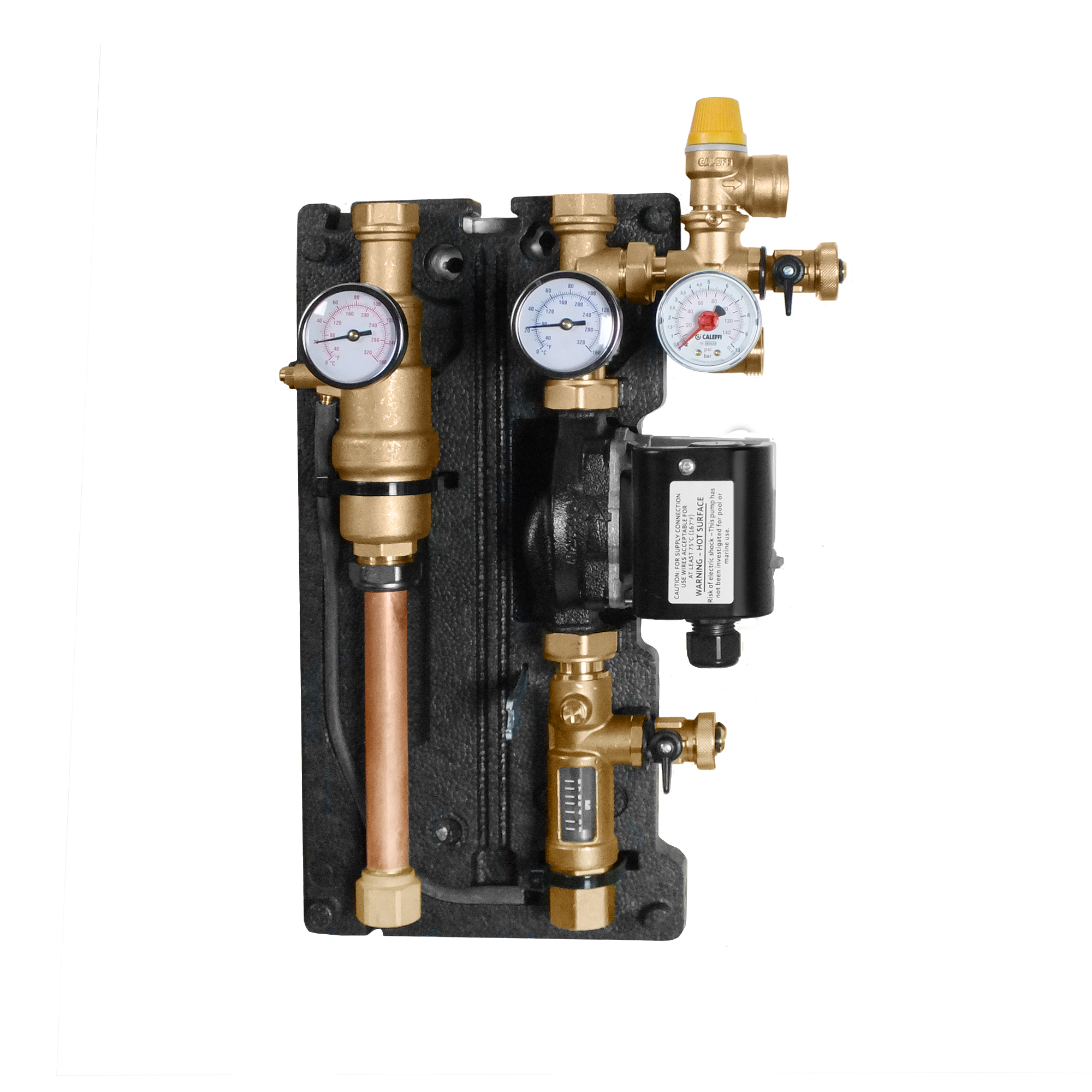

| 279051A | Dual-line solar pump station | ||
|
3D models
Tender text
Solar pump station (single and dual line)
Solar pump stations are pre-assembled and leak-tested. Safety relief valve.
Ball valves with built-in flow checks in return (and flow for dual-line models). Temperature gauges in return (and flow for dual-line models). Pressure gauge. Manual air vent (dual-line models only). Expansion tank connection. Connections for flushing and filling. Pump: three speed. Pump performance: 19 ft head/8 gpm. Maximum working pressure: 145 psi. Medium temperature range: 14–350 °F (without ice). Safety relief valve set: 90 psi. Flow meter scale: 1–8 gpm.
|
|||
| 279051 | Dual-line solar station w/o pump | ||
|
3D models
Tender text
Solar pump station (single and dual line)
Solar pump stations are pre-assembled and leak-tested. Safety relief valve.
Ball valves with built-in flow checks in return (and flow for dual-line models). Temperature gauges in return (and flow for dual-line models). Pressure gauge. Manual air vent (dual-line models only). Expansion tank connection. Connections for flushing and filling. Pump: three speed. Pump performance: 19 ft head/8 gpm. Maximum working pressure: 145 psi. Medium temperature range: 14–350 °F (without ice). Safety relief valve set: 90 psi. Flow meter scale: 1–8 gpm.
SCIP code
0e5c3dab-7e6f-4fb7-afe9-a1c14ec2ab10
|
|||
| 278751A | Single-line solar pump station | ||
|
3D models
Tender text
Solar pump station (single and dual line)
Solar pump stations are pre-assembled and leak-tested. Safety relief valve.
Ball valves with built-in flow checks in return (and flow for dual-line models). Temperature gauges in return (and flow for dual-line models). Pressure gauge. Manual air vent (dual-line models only). Expansion tank connection. Connections for flushing and filling. Pump: three speed. Pump performance: 19 ft head/8 gpm. Maximum working pressure: 145 psi. Medium temperature range: 14–350 °F (without ice). Safety relief valve set: 90 psi. Flow meter scale: 1–8 gpm.
|
|||
| 278751 | Single-line solar station w/o pump | ||
|
3D models
Tender text
Solar pump station (single and dual line)
Solar pump stations are pre-assembled and leak-tested. Safety relief valve.
Ball valves with built-in flow checks in return (and flow for dual-line models). Temperature gauges in return (and flow for dual-line models). Pressure gauge. Manual air vent (dual-line models only). Expansion tank connection. Connections for flushing and filling. Pump: three speed. Pump performance: 19 ft head/8 gpm. Maximum working pressure: 145 psi. Medium temperature range: 14–350 °F (without ice). Safety relief valve set: 90 psi. Flow meter scale: 1–8 gpm.
|
|||
| 278011 | Controller housing | ||
|
3D models
Tender text
Solar pump station (single and dual line)
Solar pump stations are pre-assembled and leak-tested. Safety relief valve.
Ball valves with built-in flow checks in return (and flow for dual-line models). Temperature gauges in return (and flow for dual-line models). Pressure gauge. Manual air vent (dual-line models only). Expansion tank connection. Connections for flushing and filling. Pump: three speed. Pump performance: 19 ft head/8 gpm. Maximum working pressure: 145 psi. Medium temperature range: 14–350 °F (without ice). Safety relief valve set: 90 psi. Flow meter scale: 1–8 gpm.
SCIP code
4d191769-7e8f-4b8d-8c42-d0a03cd3085a
|
|||
