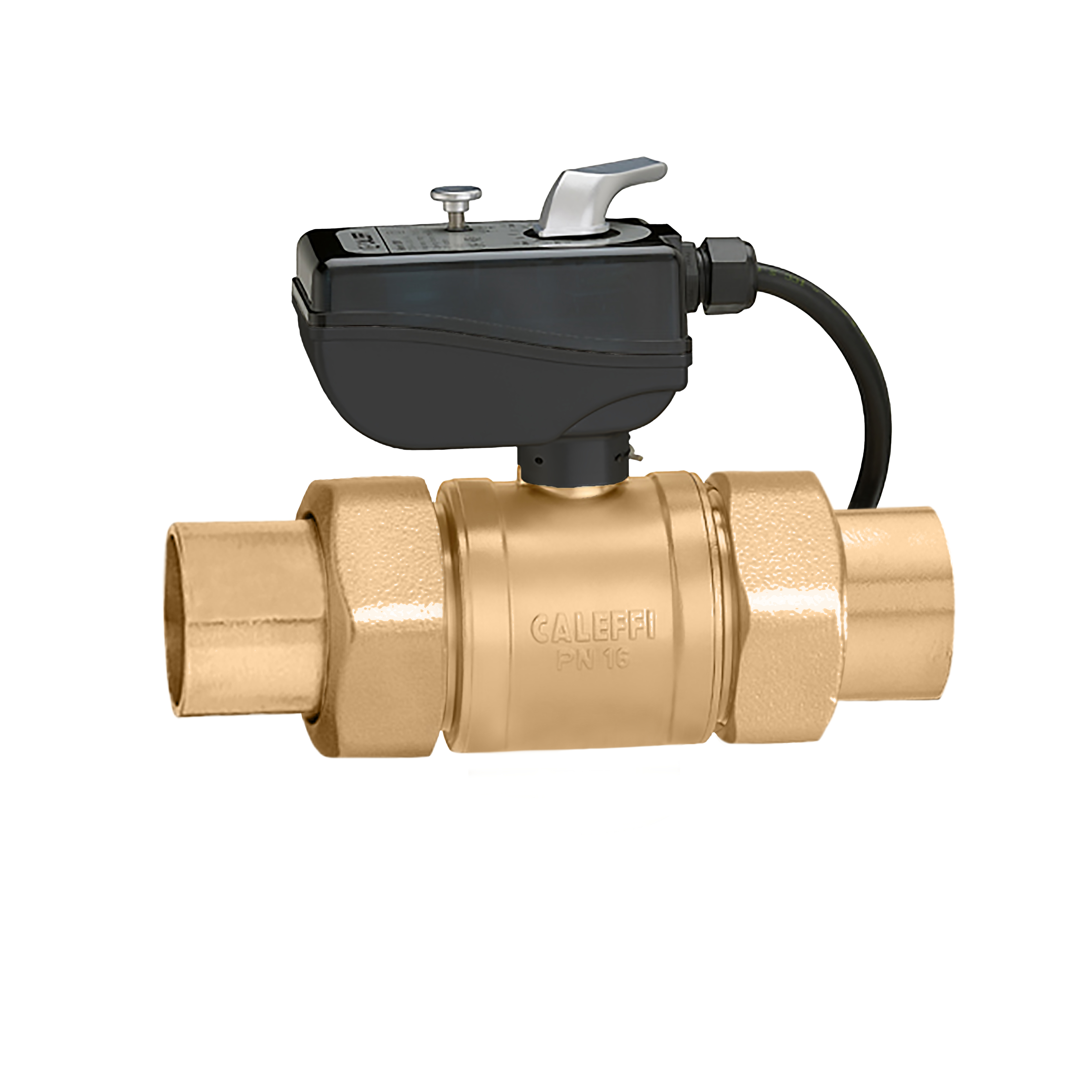

Motorized 2-way ball valve (sweat)
Product Description
Motorized 2-way ball valve (sweat)
Includes 3-wire floating actuator.
With auxiliary microswitch.
Technical data
Maximum operating pressure:
230 psi
Medium temperature range:
14 – 230 °F
Ambient temperature range:
14 – 230 °F
Protection class:
IP 65
Auxiliary microswitch contact rating (24 V):
6 A
Maximum glycol %:
50 %
Medium:
water, glycol solutions
pdf
Drawings and specifications
| Part number | Connection | Cv | |
|---|---|---|---|
| 638054A 109 | 3/4" PRS sweat union |
20 | |
|
3D models
Tender text
CALEFFI, 638054A 109.
Motorized 2-way ball valve (sweat)
With auxiliary microswitch.
Includes 3-wire floating actuator.
connection: 3/4" PRS, sweat union. Maximum operating pressure: 230 psi. Medium temperature range: 14 – 230 °F. Ambient temperature range: 14 – 230 °F. Protection class: IP 65. Auxiliary microswitch contact rating (24 V): 6 A. Maximum glycol %: 50 %. Medium: water, glycol solutions. Cv: 20.
|
|||
| 638064A 109 | 1" PRS sweat union |
42 | |
|
3D models
Tender text
CALEFFI, 638064A 109.
Motorized 2-way ball valve (sweat)
With auxiliary microswitch.
Includes 3-wire floating actuator.
connection: 1" PRS, sweat union. Cv: 42.
|
|||
| 638074A 109 | 1 1/4" PRS sweat union |
56 | |
|
3D models
Tender text
CALEFFI, 638074A 109.
Motorized 2-way ball valve (sweat)
With auxiliary microswitch.
Includes 3-wire floating actuator.
connection: 1 1/4" PRS, sweat union. Cv: 56.
|
|||
| 638084A 109 | 1 1/2" PRS sweat union |
89 | |
|
3D models
Tender text
CALEFFI, 638084A 109.
Motorized 2-way ball valve (sweat)
With auxiliary microswitch.
Includes 3-wire floating actuator.
connection: 1 1/2" PRS, sweat union. Cv: 89.
|
|||
| 638094A 109 | 2" PRS sweat union |
162 | |
|
3D models
Tender text
CALEFFI, 638094A 109.
Motorized 2-way ball valve (sweat)
With auxiliary microswitch.
Includes 3-wire floating actuator.
connection: 2" PRS, sweat union. Cv: 162.
|
|||
