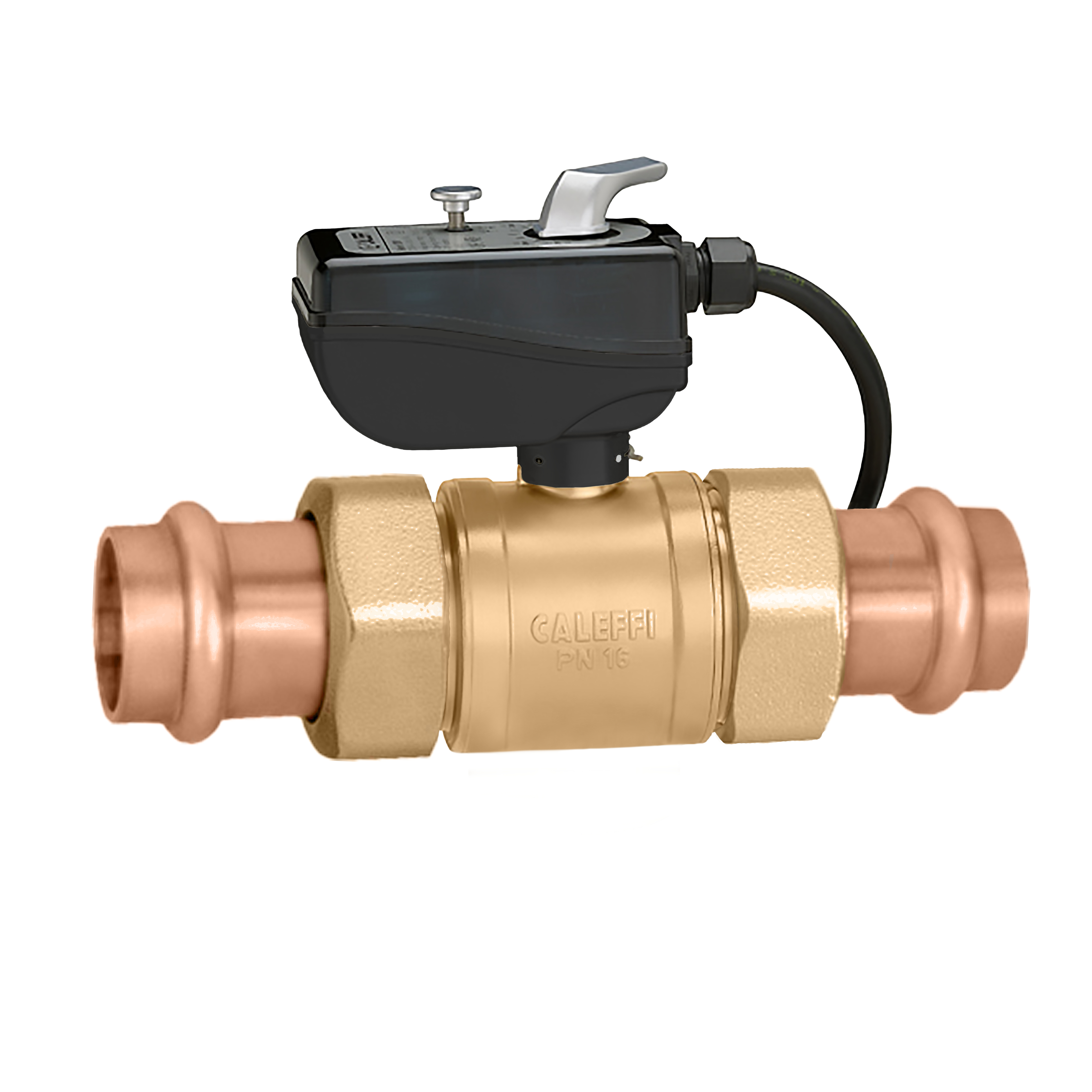

Motorized 2-way ball valve (press)
Product Description
Motorized 2-way ball valve (press)
Includes 3-wire floating actuator
With auxiliary microswitch.
Technical data
Maximum operating pressure:
200 psi
Medium temperature range:
14 – 230 °F
Ambient temperature range:
14 – 230 °F
Protection class:
IP 65
Auxiliary microswitch contact rating (24 V):
6 A
Maximum glycol %:
50 %
Medium:
water, glycol solutions
Download
Drawings and specifications
Part number | Connection | Cv | |
---|---|---|---|
638054A 106 | 3/4" press union |
20 | |
3D models
Tender text
Motorized 2-way ball valve (press)
With auxiliary microswitch.
Includes 3-wire floating actuator
connection: 3/4", press union. Maximum operating pressure: 200 psi. Medium temperature range: 14 – 230 °F. Ambient temperature range: 14 – 230 °F. Protection class: IP 65. Auxiliary microswitch contact rating (24 V): 6 A. Maximum glycol %: 50 %. Medium: water, glycol solutions. Cv: 20.
|
|||
638064A 106 | 1" press union |
42 | |
3D models
Tender text
Motorized 2-way ball valve (press)
With auxiliary microswitch.
Includes 3-wire floating actuator
connection: 1", press union. Cv: 42.
|
|||
638074A 106 | 1 1/4" press union |
56 | |
3D models
Tender text
Motorized 2-way ball valve (press)
With auxiliary microswitch.
Includes 3-wire floating actuator
connection: 1 1/4", press union. Cv: 56.
|
|||
638084A 106 | 1 1/2" press union |
89 | |
3D models
Tender text
Motorized 2-way ball valve (press)
With auxiliary microswitch.
Includes 3-wire floating actuator
connection: 1 1/2", press union. Cv: 89.
|
|||
638094A 106 | 2" press union |
162 | |
3D models
Tender text
Motorized 2-way ball valve (press)
With auxiliary microswitch.
Includes 3-wire floating actuator
connection: 2", press union. Cv: 162.
|
