Series 5517

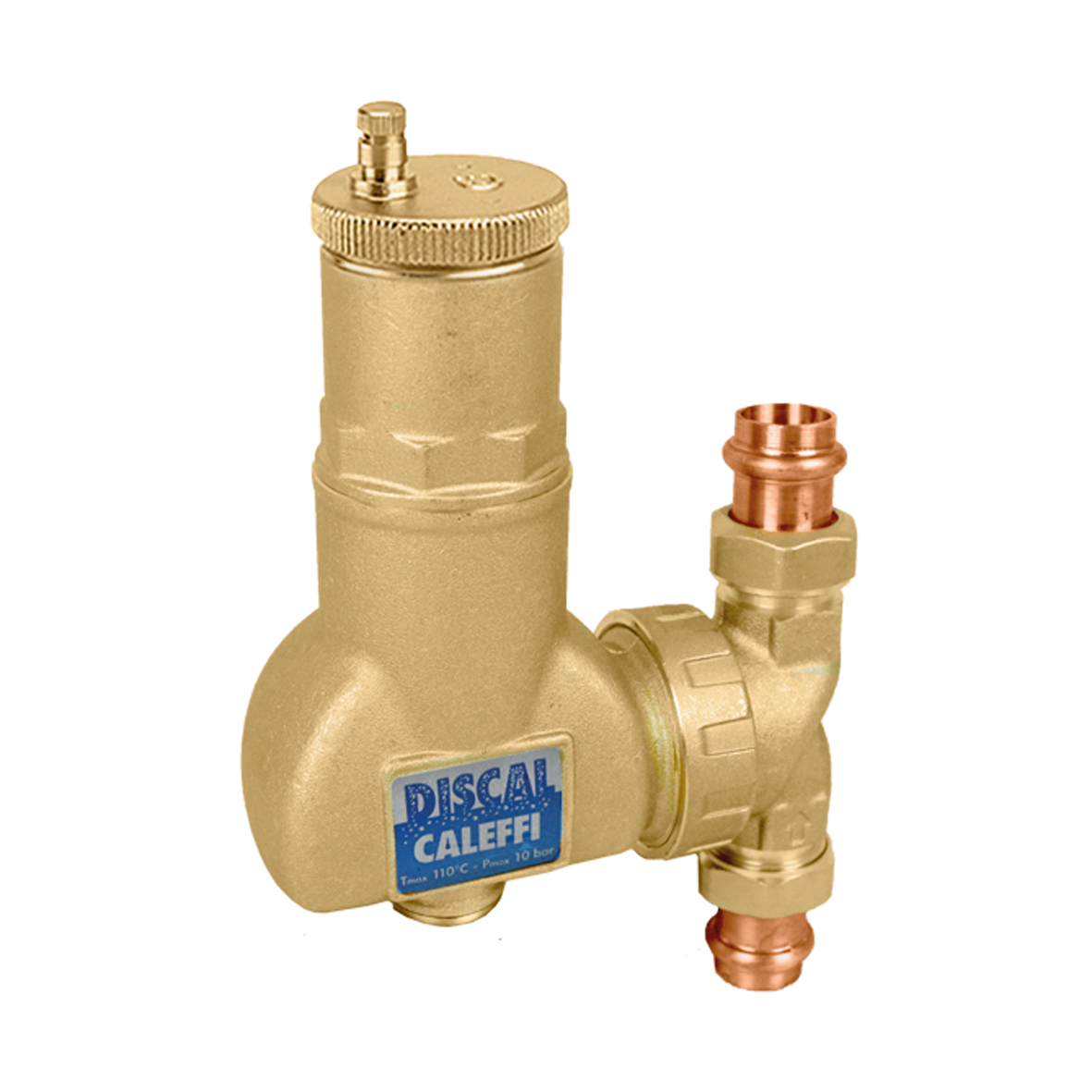

DISCAL®, Air separator with rotating collar

Go to
Download high resolution

Product Description

Air separator with rotating collar
Stainless steel float guide pin and linkage
Stainless steel mesh internal element

Technical data

Maximum operating pressure: 150 psi
Fluid temperature range: 32–250 °F
Material: brass
Find us in MasterSpec

Download

01060_NA.pdf pdf
Technical brochure
Download
38456_NA.pdf pdf
Instruction sheet
Download
NA11042.pdf pdf
In-depth guide
Revit Content Instruction Guide
Download
Idronics_15_NA_Separation in hydronic systems.pdf pdf
Idronics
Idronics 15 - Separation in Hydronic Systems
Download
02904-01_NA.pdf pdf
Submittal data
Download

Drawings and specifications

Part number Connection
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
Air separator with rotating collar Stainless steel float guide pin and linkage Stainless steel mesh internal element connection: 3/4" MNPT, union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F. Material: brass.
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
Air separator with rotating collar Stainless steel float guide pin and linkage Stainless steel mesh internal element connection: 3/4", press union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F. Material: brass.
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
Air separator with rotating collar Stainless steel float guide pin and linkage Stainless steel mesh internal element connection: 3/4", sweat union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F. Material: brass.
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
Air separator with rotating collar Stainless steel float guide pin and linkage Stainless steel mesh internal element connection: 1" MNPT, union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F. Material: brass.
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
Air separator with rotating collar Stainless steel float guide pin and linkage Stainless steel mesh internal element connection: 1", press union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F. Material: brass.
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
Air separator with rotating collar Stainless steel float guide pin and linkage Stainless steel mesh internal element connection: 1", sweat union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–250 °F. Material: brass.
