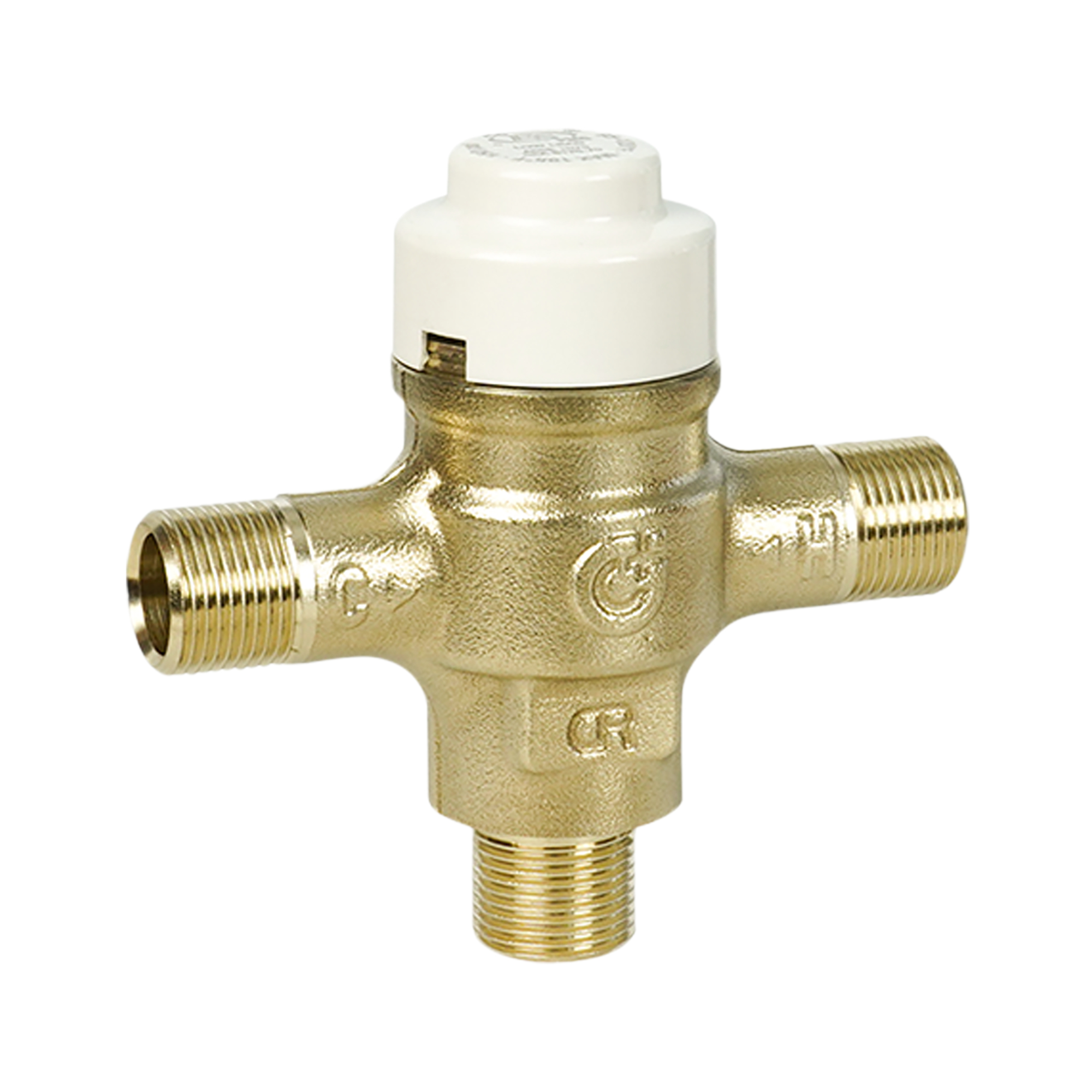

Series 5212

SinkMixer™, 3-port

Go to
Download high resolution

Product Description

3-port
Adjustable thermostatic mixing valve for under sink scald protection
Complete with inlet check valves

Technical data

Material: DZR low lead brass
Minimum flow rate: 0.35 gpm
Maximum inlet temperature: 195 °F
Adjustment temperature range: 95 – 120 °F
Maximum operating pressure: 150 psi
Low Lead

Certifications

ASSE 1070
NSF/ANSI/CAN 61
NSF/ANSI/CAN 372
CSA B125.70
CSA B125.3

Download

01364_NA.pdf pdf
Technical brochure
Download
H0007288_NA.pdf pdf
Instruction sheet
Download
03681_NA.pdf pdf
Sell sheet
Download
Idronics_26_NA_Pipe joining for plumbing and heating systems.pdf pdf
Idronics
Idronics 26 - Pipe joining for plumbing and heatin...
Download
03706-1_NA.pdf pdf
Submittal data
Download

Drawings and specifications

Part number Connection Note Cv
3D models
Caleffi BIM bim
Caleffi BIM
Tender text
CALEFFI, 521204A, SinkMixer™. 3-port Adjustable thermostatic mixing valve for under sink scald protection Complete with inlet check valves connection: 3/8" compression. Maximum operating pressure: 150 psi. Adjustment temperature range: 95 – 120 °F. Maximum inlet temperature: 195 °F. Minimum flow rate: 0.35 gpm. Cv: 0.52. Material: DZR low lead brass.
