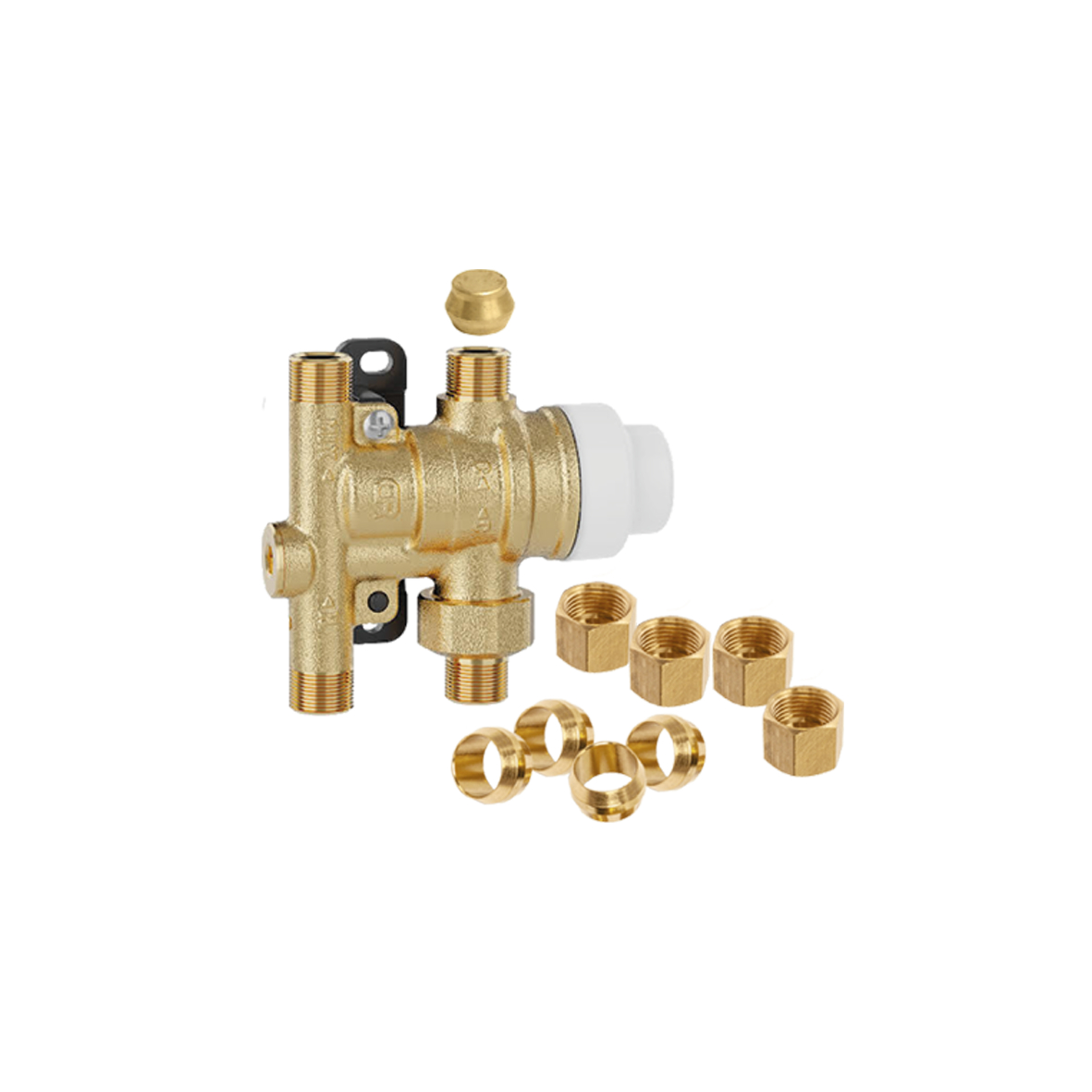

SinkMixer™, 4-port scald protection point-of-use mixing valve
Product Description
4-port scald protection point-of-use mixing valve
Thermostatic mixing valve for under sink and under counter applications where the user must be protected from the danger of scalding caused by excessively hot water.
Cold inlet temperature: Min. 39°F; max. 85°F. Hot inlet temperature: Min. 120°F; max. 195°F.
Technical data
Adjustment temperature range:
95–120 °F
Flow rate working range:
0.35–2.3 gpm
Certifications
pdf
Drawings and specifications
| Part number | Connection | Note | Cv |
|---|---|---|---|
| 521201A | 3/8" compression |
- | 0.52 |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
4-port scald protection point-of-use mixing valve
Thermostatic mixing valve for under sink and under counter applications where the user must be protected from the danger of scalding caused by excessively hot water.
Cold inlet temperature: Min. 39°F; max. 85°F. Hot inlet temperature: Min. 120°F; max. 195°F. connection: 3/8", compression. Adjustment temperature range: 95–120 °F. Flow rate working range: 0.35–2.3 gpm. Cv: 0.52.
SCIP code
117ff071-348f-48c0-83d2-23b5c9fcbf52
|
|||
| 521201AP | 3/8" compression |
Plug/fittings | 0.52 |
|
3D models
Tender text
4-port scald protection point-of-use mixing valve
Thermostatic mixing valve for under sink and under counter applications where the user must be protected from the danger of scalding caused by excessively hot water.
Cold inlet temperature: Min. 39°F; max. 85°F. Hot inlet temperature: Min. 120°F; max. 195°F. connection: 3/8", compression. Adjustment temperature range: 95–120 °F. Flow rate working range: 0.35–2.3 gpm. Cv: 0.52.
|
|||
igs
stp
bim
