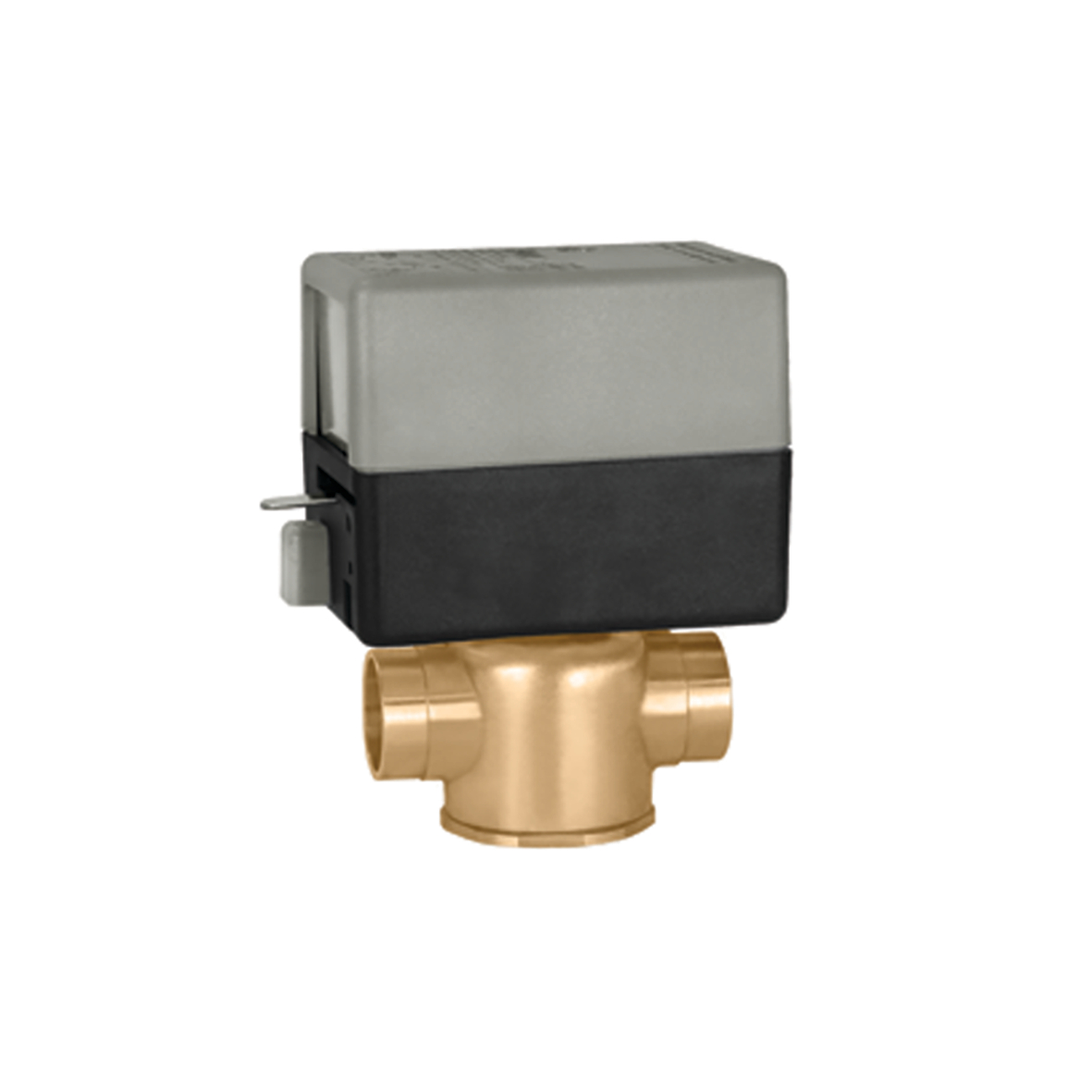

Z-one™, 2-way motorized zone valve (sweat and flare)
Product Description
2-way motorized zone valve (sweat and flare)
UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251.
Normally closed actuator: Z111000.
Spring return.
Auxiliary micro-switch.
With auxiliary microswitch.
Technical data
Maximum operating pressure:
300 psi
Fluid temperature range:
32–240 °F
Electric supply:
24 V (AC)
Power consumption at full capacity:
7 VA
Auxiliary microswitch contact rating (24 V):
0.4 A
Maximum glycol %:
50 %
Medium:
water, glycol solutions, vapor (max. 15 psi)
pdf
Drawings and specifications
| Part number | Connection | Note | Maximum △p |
|---|---|---|---|
| Z40 | Inverted flare | 30 psi | 3.5 gpm |
|
3D models
Tender text
2-way motorized zone valve (sweat and flare)
With auxiliary microswitch.
UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Normally closed actuator: Z111000. Spring return. Auxiliary micro-switch. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 7 VA. Auxiliary microswitch contact rating (24 V): 0.4 A. Maximum glycol %: 50 %. Medium: water, glycol solutions, vapor (max. 15 psi). Maximum △p: 30 psi. Cv: 3.5 gpm.
|
|||
| Z40F | 3/4" |
Inv flare | 30 psi |
|
Cv
3.5 gpm
|
|||
|
3D models
Tender text
2-way motorized zone valve (sweat and flare)
With auxiliary microswitch.
UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Normally closed actuator: Z111000. Spring return. Auxiliary micro-switch. connection: 3/4". Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 7 VA. Auxiliary microswitch contact rating (24 V): 0.4 A. Maximum glycol %: 50 %. Medium: water, glycol solutions, vapor (max. 15 psi). Maximum △p: 30 psi. Cv: 3.5 gpm.
|
|||
| Z42 | 1/2" SAE flare |
30 psi | 3.5 gpm |
|
3D models
Tender text
2-way motorized zone valve (sweat and flare)
With auxiliary microswitch.
UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Normally closed actuator: Z111000. Spring return. Auxiliary micro-switch. connection: 1/2" SAE flare. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 7 VA. Auxiliary microswitch contact rating (24 V): 0.4 A. Maximum glycol %: 50 %. Medium: water, glycol solutions, vapor (max. 15 psi). Maximum △p: 30 psi. Cv: 3.5 gpm.
|
|||
| Z44 | 1/2" sweat |
50 psi | 2.5 gpm |
|
3D models
Tender text
2-way motorized zone valve (sweat and flare)
With auxiliary microswitch.
UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Normally closed actuator: Z111000. Spring return. Auxiliary micro-switch. connection: 1/2", sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 7 VA. Auxiliary microswitch contact rating (24 V): 0.4 A. Maximum glycol %: 50 %. Medium: water, glycol solutions, vapor (max. 15 psi). Maximum △p: 50 psi. Cv: 2.5 gpm.
|
|||
| Z45 | 3/4" sweat |
20 psi | 7.5 gpm |
|
3D models
Tender text
2-way motorized zone valve (sweat and flare)
With auxiliary microswitch.
UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Normally closed actuator: Z111000. Spring return. Auxiliary micro-switch. connection: 3/4", sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 7 VA. Auxiliary microswitch contact rating (24 V): 0.4 A. Maximum glycol %: 50 %. Medium: water, glycol solutions, vapor (max. 15 psi). Maximum △p: 20 psi. Cv: 7.5 gpm.
|
|||
| Z46 | 1" sweat |
20 psi | 7.5 gpm |
|
3D models
Tender text
2-way motorized zone valve (sweat and flare)
With auxiliary microswitch.
UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Normally closed actuator: Z111000. Spring return. Auxiliary micro-switch. connection: 1", sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 7 VA. Auxiliary microswitch contact rating (24 V): 0.4 A. Maximum glycol %: 50 %. Medium: water, glycol solutions, vapor (max. 15 psi). Maximum △p: 20 psi. Cv: 7.5 gpm.
|
|||
| Z47 | 1 1/4" sweat |
20 psi | 7.5 gpm |
|
3D models
Tender text
2-way motorized zone valve (sweat and flare)
With auxiliary microswitch.
UL873, cULus Listed & CE. UL 1995 sec. 18 air plenums and ducts.U.S. Patent 7,048,251. Normally closed actuator: Z111000. Spring return. Auxiliary micro-switch. connection: 1 1/4", sweat. Maximum operating pressure: 300 psi. Fluid temperature range: 32–240 °F. Electric supply: 24 V (AC). Power consumption at full capacity: 7 VA. Auxiliary microswitch contact rating (24 V): 0.4 A. Maximum glycol %: 50 %. Medium: water, glycol solutions, vapor (max. 15 psi). Maximum △p: 20 psi. Cv: 7.5 gpm.
|
|||
