Series 145

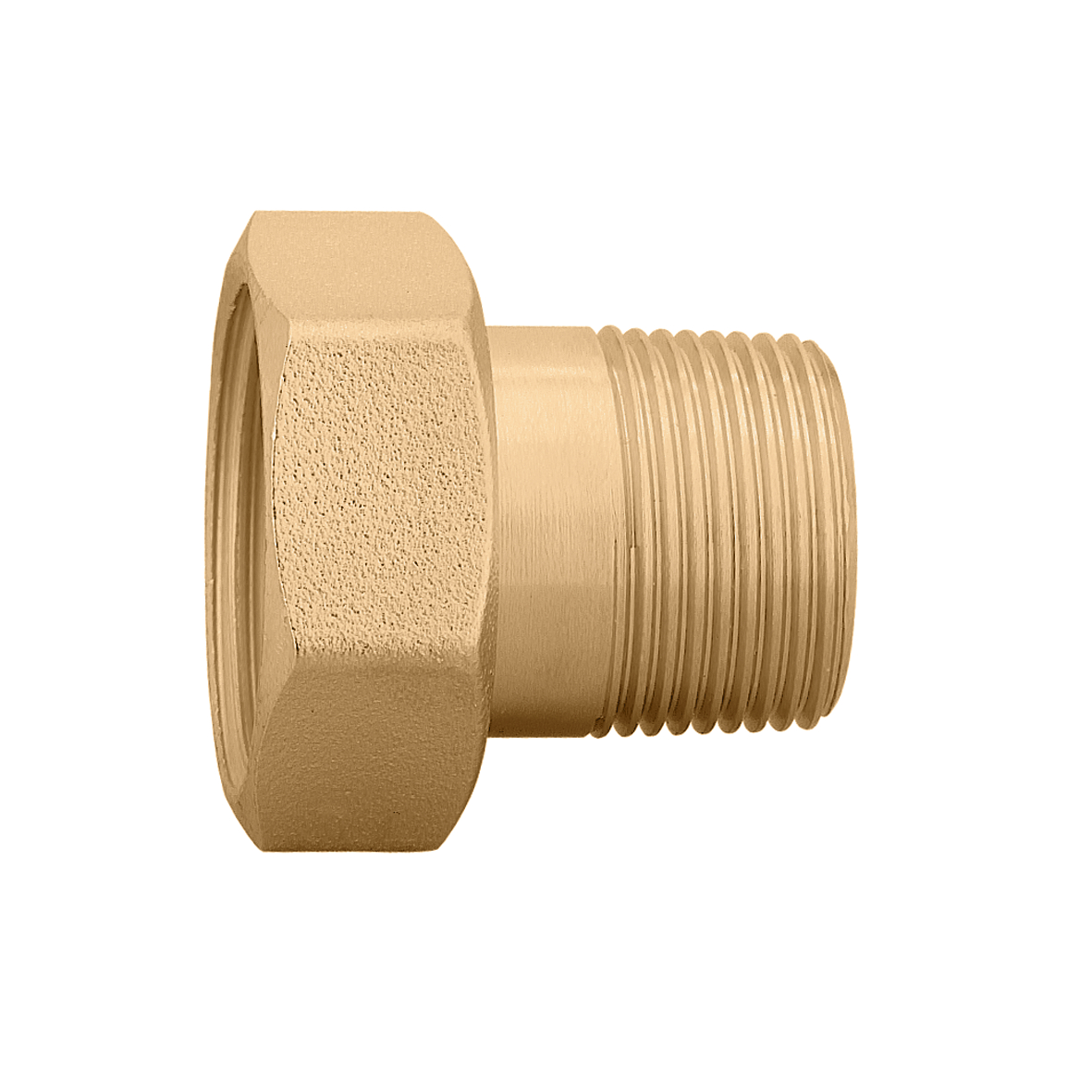

Union with gasket.

Name: 145001Union with gasket.
Brand: Caleffi S.p.A.
SKU: 145001

Download high resolution

Product Description

Union with gasket.

Download

Drawings and specifications

Part number	Inlet connection	Outlet connection
145001	G 1/2" (ISO 228-1) F inlet	R 3/8" (EN 10226-1) M end outlet
3D models bim Tender text Union with gasket. Inlet connection: G 1/2" (ISO 228-1) F, inlet, Flat seat. Outlet connection: R 3/8" (EN 10226-1) M, end outlet. SCIP code 5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
145003	G 3/4" (ISO 228-1) F	R 1/2" (EN 10226-1) M
3D models bim Tender text Union with gasket. Inlet connection: G 3/4" (ISO 228-1) F, Flat seat. Outlet connection: R 1/2" (EN 10226-1) M. SCIP code 5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
145005	G 1" (ISO 228-1) F inlet	R 3/4" (EN 10226-1) M end outlet
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/145005%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/145005%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/145005%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/145005%20%28stp%29.stp bim Tender text Union with gasket. Inlet connection: G 1" (ISO 228-1) F, inlet, Flat seat. Outlet connection: R 3/4" (EN 10226-1) M, end outlet. SCIP code 5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
145006	G 1" (ISO 228-1) F inlet	R 1" (EN 10226-1) M end outlet
3D models bim Tender text Union with gasket. Inlet connection: G 1" (ISO 228-1) F, inlet, Flat seat. Outlet connection: R 1" (EN 10226-1) M, end outlet. SCIP code 5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
145007	G 1 1/4" (ISO 228-1) F inlet	R 1" (EN 10226-1) M end outlet
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/145007%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/145007%20%28dxf%29.dxf pdf Download this file 3D models bim Tender text Union with gasket. Inlet connection: G 1 1/4" (ISO 228-1) F, inlet, Flat seat. Outlet connection: R 1" (EN 10226-1) M, end outlet. SCIP code 5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
145008	G 1 1/4" (ISO 228-1) F	R 1 1/4" (EN 10226-1) M
3D models bim Tender text Union with gasket. Inlet connection: G 1 1/4" (ISO 228-1) F, Flat seat. Outlet connection: R 1 1/4" (EN 10226-1) M. SCIP code 5a99dfbe-4dcc-4bed-8b25-9bbc7c443cc9
