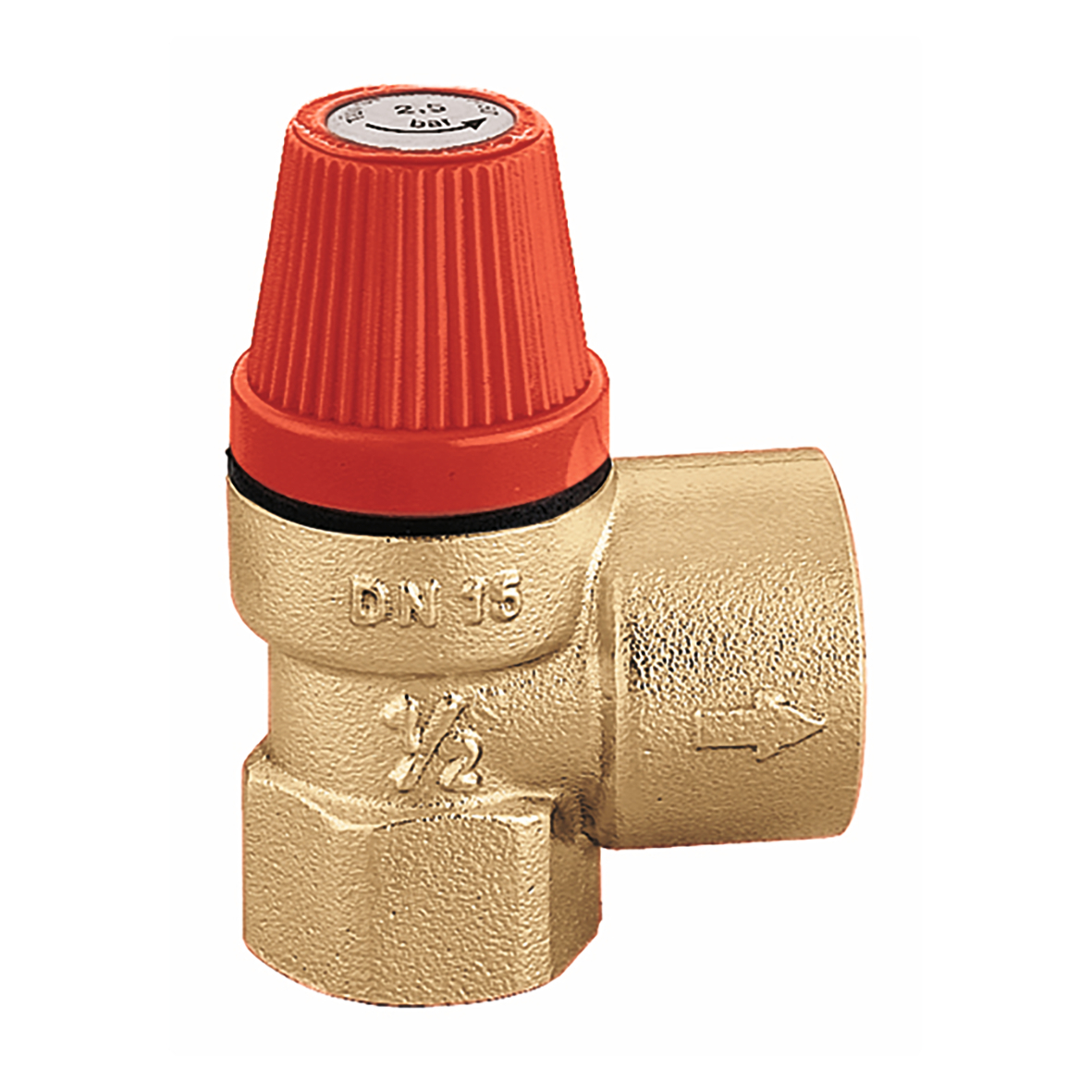

Safety relief valve.
Product Description
Safety relief valve.
Discharge overpressure: 20 %.
Closing differential: 20 %.
Technical data
Medium temperature range:
5–120 °C
Maximum discharge rating:
50 kW
Maximum percentage of glycol:
50 %
Medium:
glycol solutions, water
Certifications
pdf
Drawings and specifications
| Part number | IN connection | OUT connection | Setting |
|---|---|---|---|
| 532042 | G 1/2" (ISO 228-1) F |
G 3/4" (ISO 228-1) F |
2,5 bar |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Safety relief valve. Discharge overpressure: 20 %.
Closing differential: 20 %. IN connection: G 1/2" (ISO 228-1) F. OUT connection: G 3/4" (ISO 228-1) F. Medium temperature range: 5–120 °C. Setting: 2,5 bar. Maximum discharge rating: 50 kW. Maximum percentage of glycol: 50 %. Medium: glycol solutions, water.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
| 532043 | G 1/2" (ISO 228-1) F |
G 3/4" (ISO 228-1) F |
3 bar |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Safety relief valve. Discharge overpressure: 20 %.
Closing differential: 20 %. IN connection: G 1/2" (ISO 228-1) F. OUT connection: G 3/4" (ISO 228-1) F. Medium temperature range: 5–120 °C. Setting: 3 bar. Maximum discharge rating: 50 kW. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions.
SCIP code
5cca1801-24ed-4bee-b22a-d766f72274eb
|
|||
