Series 7000

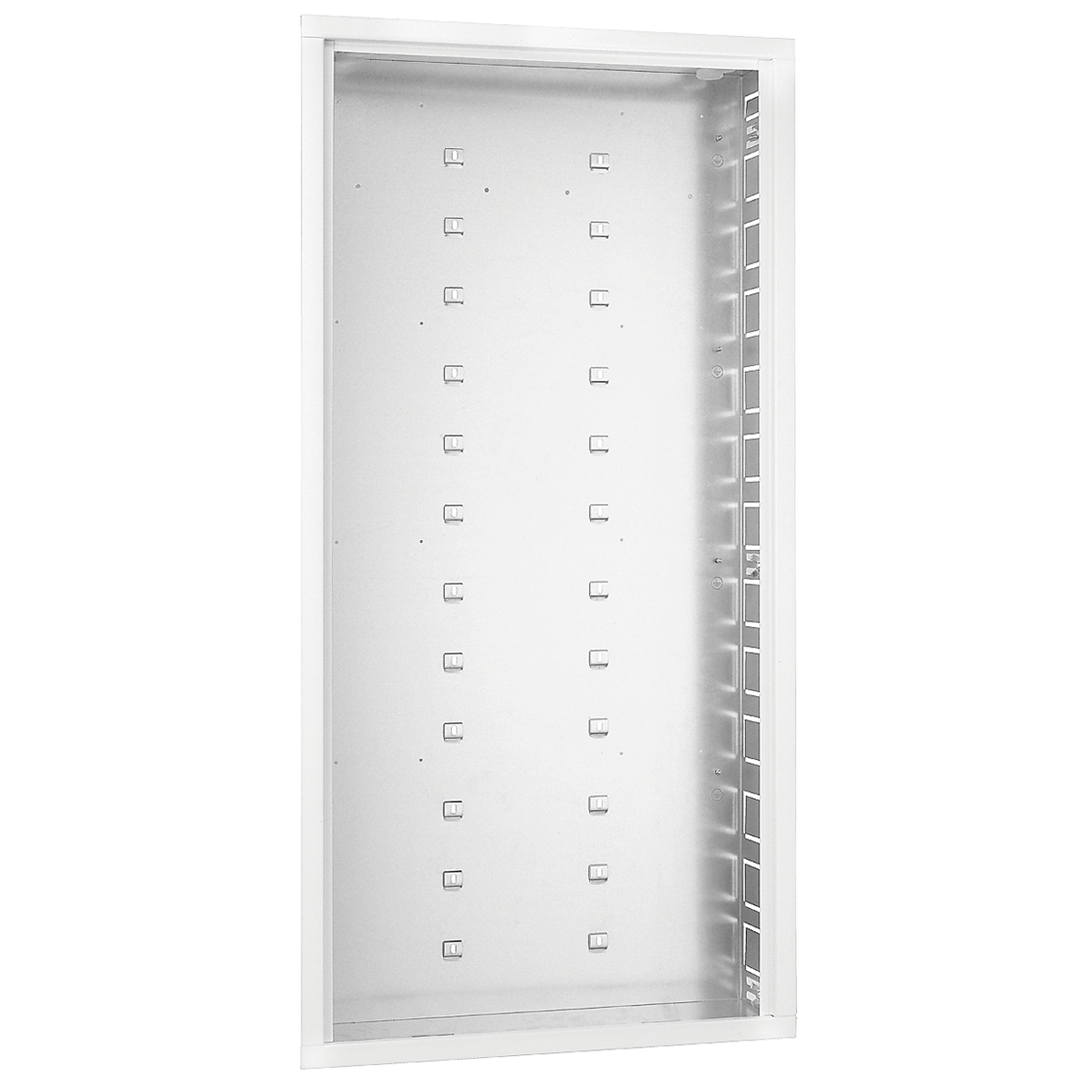

Recessed box with painted door for interior installation.

Go to

Download high resolution

Product Description

Recessed box with painted door for interior installation.
12 positioning hooks.

Technical data

Depth: 140–180 mm

Height: 1175 mm

Width: 550 mm

Download

Drawings and specifications

Part number
700025
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/700025%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/700025%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/700025%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/700025%20%28stp%29.stp bim Tender text Recessed box with painted door for interior installation. 12 positioning hooks. Depth: 140–180 mm. Height: 1175 mm. Width: 550 mm. SCIP code CODICE IN FASE DI ANALISI
