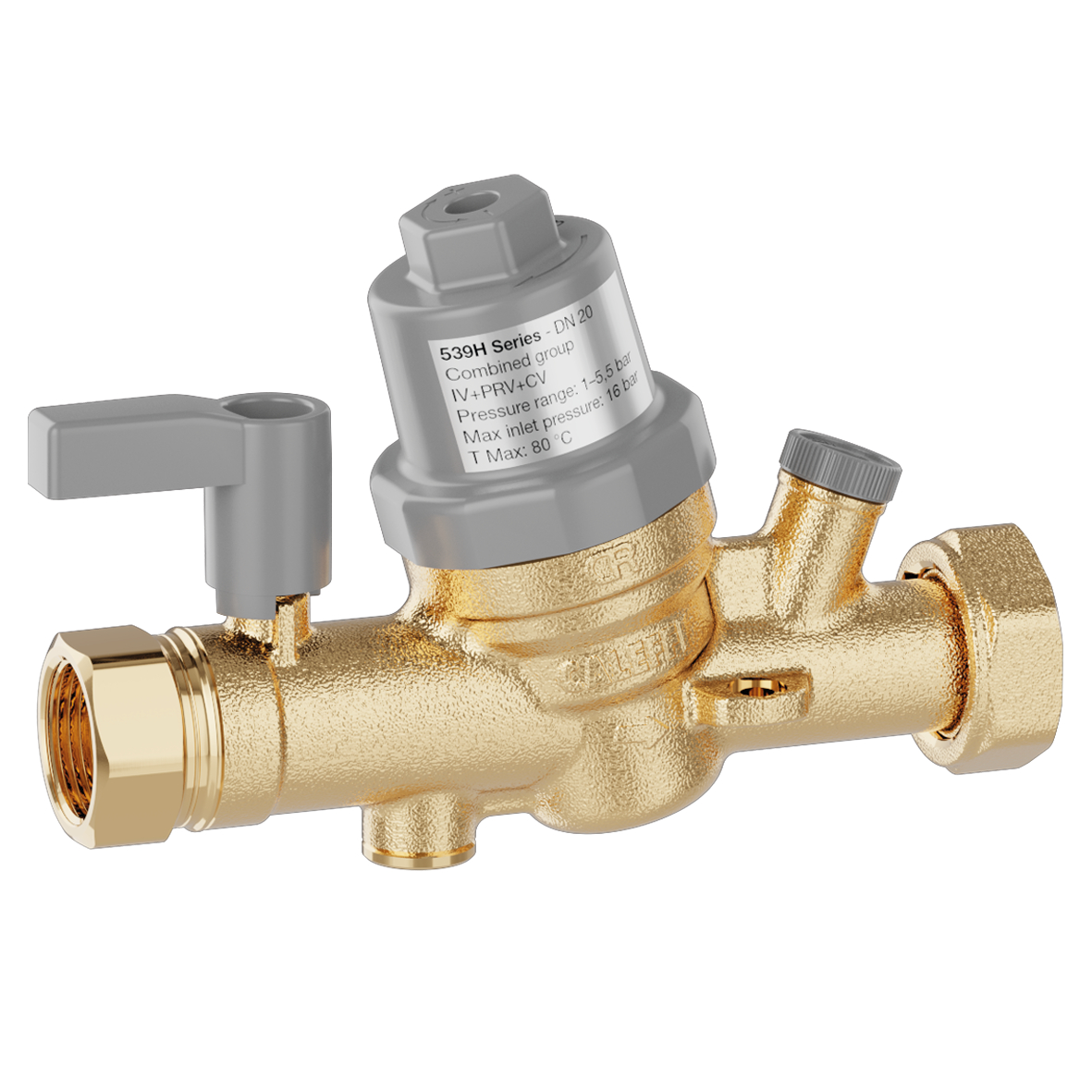

Combined group for pressure control in domestic water systems.
Product Description
Combined group for pressure control in domestic water systems.
Replaceable cartridge.
For high temperature.
Shut-off valve with extended lever.
EA type check valve.
With G 1/4" upstream and downstream pressure test ports.
Pressure reducing valve certified to EN 1567.
Check valve certified to EN 13959.
PATENT PENDING
Technical data
Maximum upstream pressure:
16 bar
Medium temperature range:
2–80 °C
Adjustment pressure range:
1–5,5 bar
Material:
dezincification resistant brass DR "low lead"
Certifications
pdf
Drawings and specifications
| Part number | Inlet Connection | Outlet connection | |
|---|---|---|---|
| 539050H | Rp 3/4" (EN 10226-1) F |
G 1" (ISO 228-1) F captive nut |
|
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Combined group for pressure control in domestic water systems.
Replaceable cartridge.
For high temperature.
Shut-off valve with extended lever.
EA type check valve.
With G 1/4" upstream and downstream pressure test ports.
Pressure reducing valve certified to EN 1567.
Check valve certified to EN 13959.
Inlet Connection: Rp 3/4" (EN 10226-1) F. Outlet connection: G 1" (ISO 228-1) F, captive nut. Maximum upstream pressure: 16 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 1–5,5 bar. Material: dezincification resistant brass DR "low lead".
SCIP code
7f243fae-ae78-43b6-bc86-1e84fcb07c52
|
|||
igs
stp
bim
