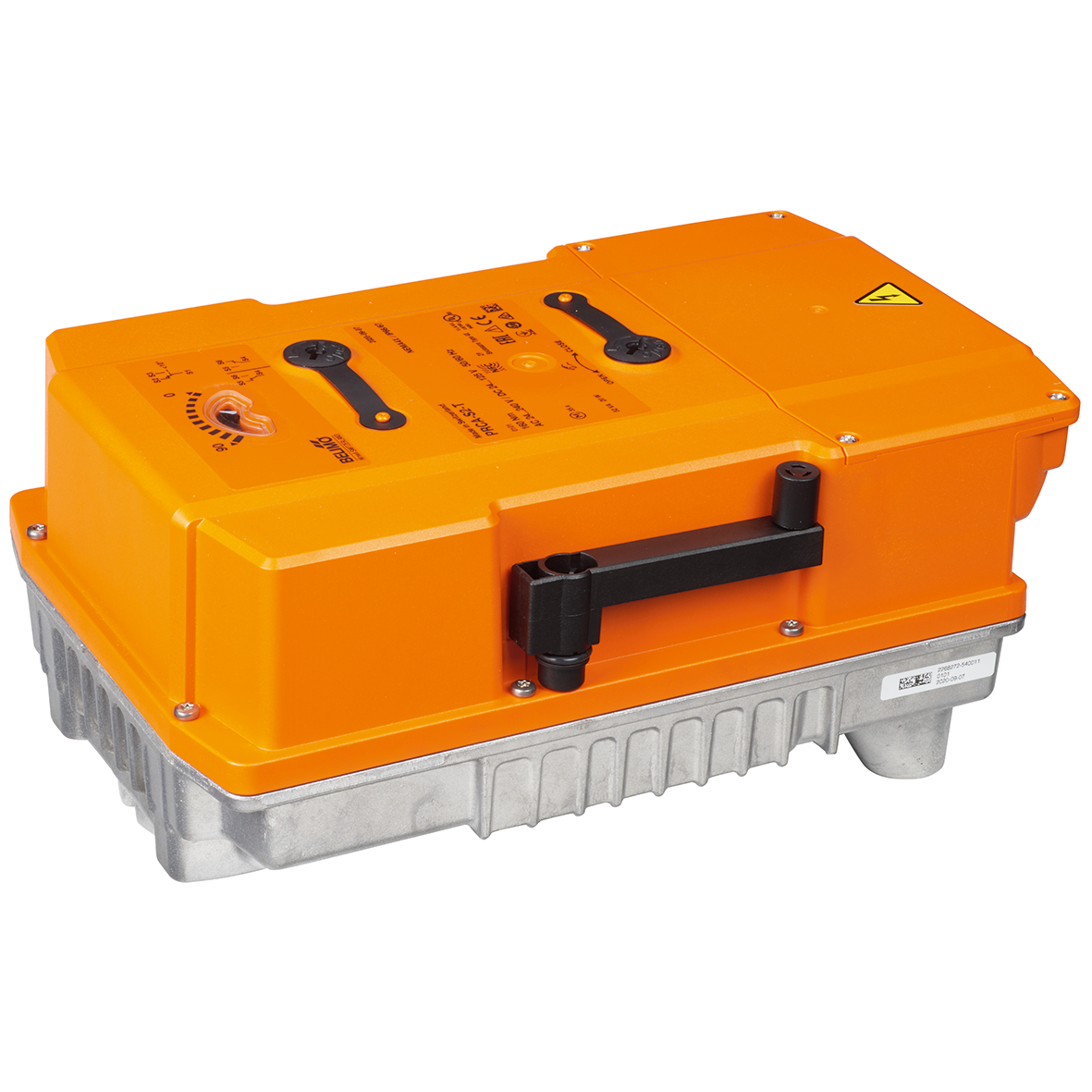

Actuator for 639 series butterfly valve DN 150.
Product Description
Actuator for 639 series butterfly valve DN 150.
Adjustable points of intervention.
Operating time (90° rotation): 30–120s.
With double auxiliary microswitch.
Technical data
Ambient temperature range:
-30–50 °C
Warehouse storage temperature range:
-40–80 °C
Control signal:
ON/OFF, 3 point
Protection class:
IP 67, IP 66
Auxiliary microswitch contact rating (250 V):
1 mA...3 (0,5) A
△p max.:
3 bar
closing △p max.:
12 bar
Certifications
pdf
Drawings and specifications
| Part number | Note | Use | Electric supply |
|---|---|---|---|
| 639942 | DN 150 | 639150, 639151 | 230 V (AC) |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Actuator for 639 series butterfly valve DN 150. With double auxiliary microswitch.
Adjustable points of intervention.
Operating time (90° rotation): 30–120s. Ambient temperature range: -30–50 °C. Warehouse storage temperature range: -40–80 °C. Electric supply: 230 V (AC). Control signal: ON/OFF, 3 point. Protection class: IP 67, IP 66. Auxiliary microswitch contact rating (250 V): 1 mA...3 (0,5) A.
