Series Z2

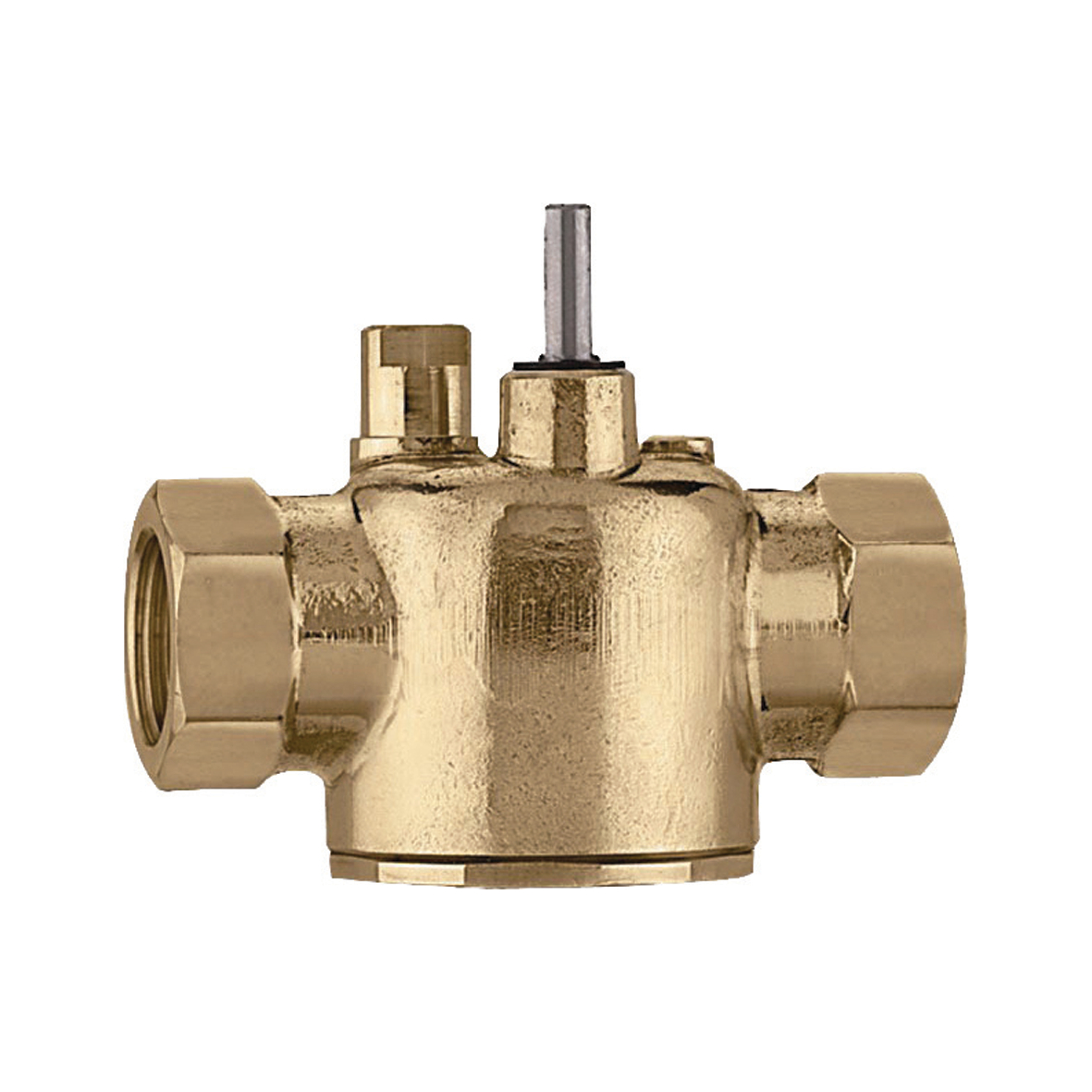

Z2 2-way straight valve body for motorized zone valves

Download high resolution

Product Description

Z2 2-way straight valve body for motorized zone valves
Two-way on/off two position valve.
Straight-through flow pattern.
Stainless steel stem.
EPDM rubber seals and paddle.

Technical data

Maximum working pressure: 300 psi

Medium temperature range: 32–240 °F

Material: brass

Download

Drawings and specifications

Part number	Connection	Note	△p max.
Z200041	Inverted flare	75 psi	1.0 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 75 psi. Cv: 1.0 gpm. Material: brass.
Z200042	Inverted flare	50 psi	2.5 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 50 psi. Cv: 2.5 gpm. Material: brass.
Z200043	Inverted flare	30 psi	3.5 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 30 psi. Cv: 3.5 gpm. Material: brass.
Z200053	1/2" SAE flare	SAE Flare	30 psi
Cv 3.5 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" SAE flare. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 30 psi. Cv: 3.5 gpm.
Z200411	1/2" FNPT	75 psi	1.0 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200411%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200411%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200411%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200411%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" FNPT. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 75 psi. Cv: 1.0 gpm. Material: brass.
Z200412	1/2" FNPT	50 psi	2.5 gpm
2D drawings dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200412%20%28dxf%29.dxf pdf Download this file dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200412%20%28dwg%29.dwg 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200412%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200412%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" FNPT. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 50 psi. Cv: 2.5 gpm. Material: brass.
Z200413	1/2" FNPT	30 psi	3.5 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200413%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200413%20%28dxf%29.dxf pdf Download this file 3D models stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200413%20%28stp%29.stp igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200413%20%28igs%29.igs bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" FNPT. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 30 psi. Cv: 3.5 gpm. Material: brass.
Z200431	1/2" sweat	75 psi	1.0 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200431%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200431%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200431%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200431%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" sweat. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 75 psi. Cv: 1.0 gpm. Material: brass.
Z200432	1/2" sweat	50 psi	2.5 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200432%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200432%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200432%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200432%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1/2" sweat. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 50 psi. Cv: 2.5 gpm. Material: brass.
Z200512	3/4" FNPT	50 psi	2.5 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" FNPT. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 50 psi. Cv: 2.5 gpm. Material: brass.
Z200513	3/4" FNPT	30 psi	3.5 gpm
2D drawings pdf Download this file dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200513%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200513%20%28dxf%29.dxf 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200513%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200513%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" FNPT. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 30 psi. Cv: 3.5 gpm. Material: brass.
Z200515	3/4" FNPT	25 psi	5.0 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200515%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200515%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200515%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200515%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" FNPT. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 25 psi. Cv: 5.0 gpm. Material: brass.
Z200517	3/4" FNPT	20 psi	7.5 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" FNPT. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 20 psi. Cv: 7.5 gpm. Material: brass.
Z200532	3/4" sweat	50 psi	2.5 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" sweat. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 50 psi. Cv: 2.5 gpm. Material: brass.
Z200535	3/4" sweat	25 psi	5.0 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200535%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200535%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200535%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200535%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" sweat. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 25 psi. Cv: 5.0 gpm. Material: brass.
Z200537	3/4" sweat	20 psi	7.5 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 3/4" sweat. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 20 psi. Cv: 7.5 gpm. Material: brass.
Z200617	1" FNPT	20 psi	7.5 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200617%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200617%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200617%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200617%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1" FNPT. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 20 psi. Cv: 7.5 gpm. Material: brass.
Z200635	1" sweat	25 psi	5.0 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1" sweat. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 25 psi. Cv: 5.0 gpm. Material: brass.
Z200637	1" sweat	20 psi	7.5 gpm
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200637%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200637%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200637%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/Z200637%20%28stp%29.stp bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1" sweat. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 20 psi. Cv: 7.5 gpm. Material: brass.
Z200737	1 1/4" sweat	20 psi	7.5 gpm
3D models bim Tender text Z2 2-way straight valve body for motorized zone valves Two-way on/off two position valve. Straight-through flow pattern. Stainless steel stem. EPDM rubber seals and paddle. connection: 1 1/4" sweat. Maximum working pressure: 300 psi. Medium temperature range: 32–240 °F. △p max.: 20 psi. Cv: 7.5 gpm. Material: brass.
