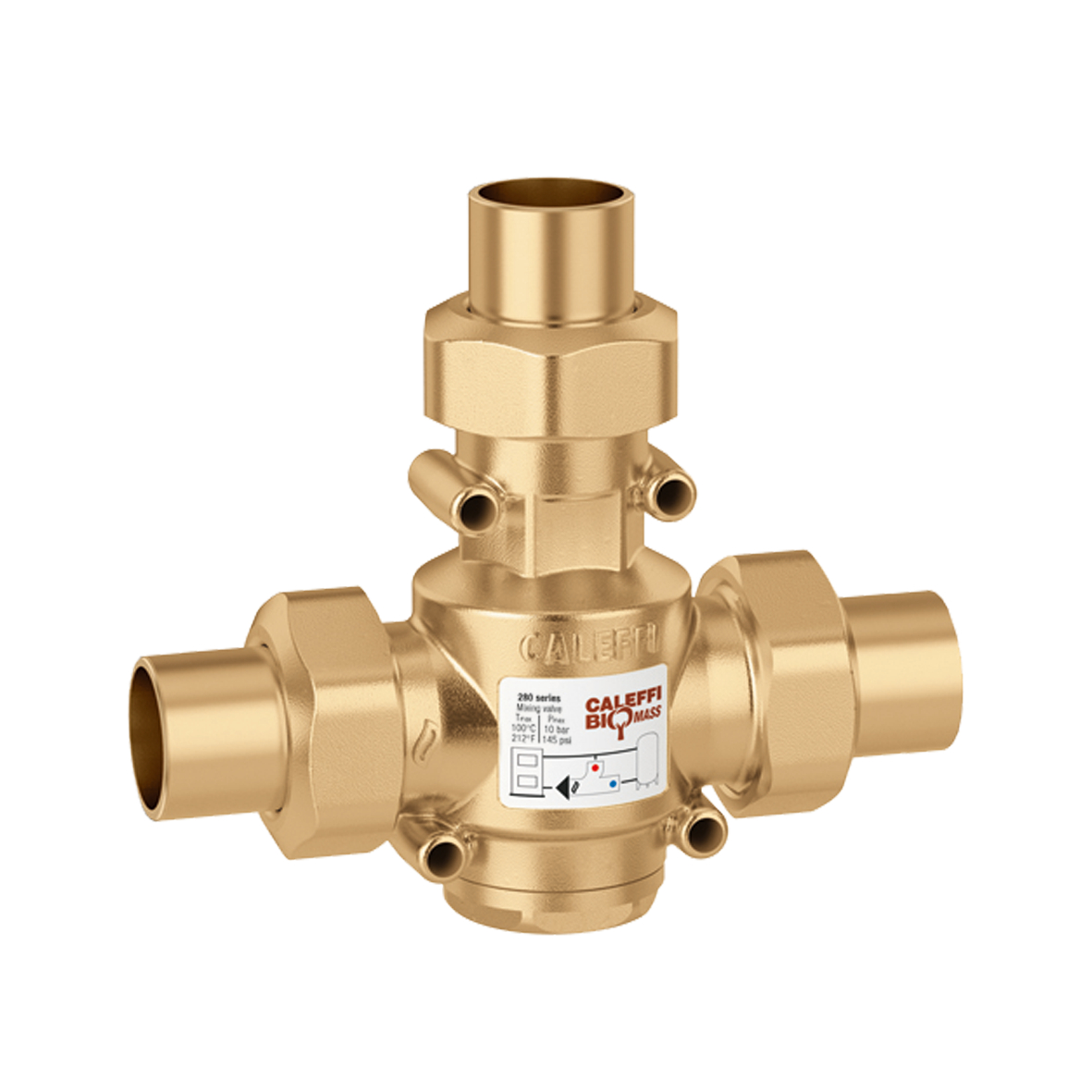

ThermoProtec™, Thermostatic mixing valve (high-flow)
Product Description
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable).
Brass lower plug.
By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F).
Technical data
Maximum operating pressure:
150 psi
Medium temperature range:
40–212 °F
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | Setting | |
|---|---|---|---|
| 280965A | 1" Press sweat union |
130 °F | |
|
3D models
Tender text
CALEFFI, 280965A, ThermoProtec™.
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable). Brass lower plug. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). connection: 1" Press, sweat union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Setting: 130 °F. Material: brass.
|
|||
| 280165A | 1" FNPT union |
130 °F | |
|
3D models
Tender text
CALEFFI, 280165A, ThermoProtec™.
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable). Brass lower plug. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). connection: 1" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Setting: 130 °F. Material: brass.
|
|||
| 280966A | 1" Press sweat union |
140 °F | |
|
3D models
Tender text
CALEFFI, 280966A, ThermoProtec™.
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable). Brass lower plug. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). connection: 1" Press, sweat union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Setting: 140 °F. Material: brass.
|
|||
| 280166A | 1" FNPT union |
140 °F | |
|
3D models
Tender text
CALEFFI, 280166A, ThermoProtec™.
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable). Brass lower plug. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). connection: 1" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Setting: 140 °F. Material: brass.
|
|||
| 280975A | 1 1/4" Press sweat union |
130 °F | |
|
3D models
Tender text
CALEFFI, 280975A, ThermoProtec™.
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable). Brass lower plug. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). connection: 1 1/4" Press, sweat union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Setting: 130 °F. Material: brass.
|
|||
| 280175A | 1 1/4" FNPT union |
130 °F | |
|
3D models
Tender text
CALEFFI, 280175A, ThermoProtec™.
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable). Brass lower plug. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). connection: 1 1/4" FNPT, union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Setting: 130 °F. Material: brass.
|
|||
| 280976A | 1 1/4" Press sweat union |
140 °F | |
|
3D models
Tender text
CALEFFI, 280976A, ThermoProtec™.
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable). Brass lower plug. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). connection: 1 1/4" Press, sweat union. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Setting: 140 °F. Material: brass.
|
|||
| 280176A | 1 1/4" FNPT |
140 °F | |
|
3D models
Tender text
CALEFFI, 280176A, ThermoProtec™.
Thermostatic mixing valve (high-flow)
Boiler protection high-flow thermostatic mixing valve.
Changeable thermostatic sensor cartridge. Thermostatic sensor cartridge: 130°F & 140°F Tset standard selections,see below. 115°F, 160°F Tset optional (field replaceable). Brass lower plug. By-pass from boiler complete closing temperature: Tset +18°F (ex. 130°+18°=148°F). connection: 1 1/4" FNPT. Maximum operating pressure: 150 psi. Medium temperature range: 40–212 °F. Setting: 140 °F. Material: brass.
|
|||
