Series 116

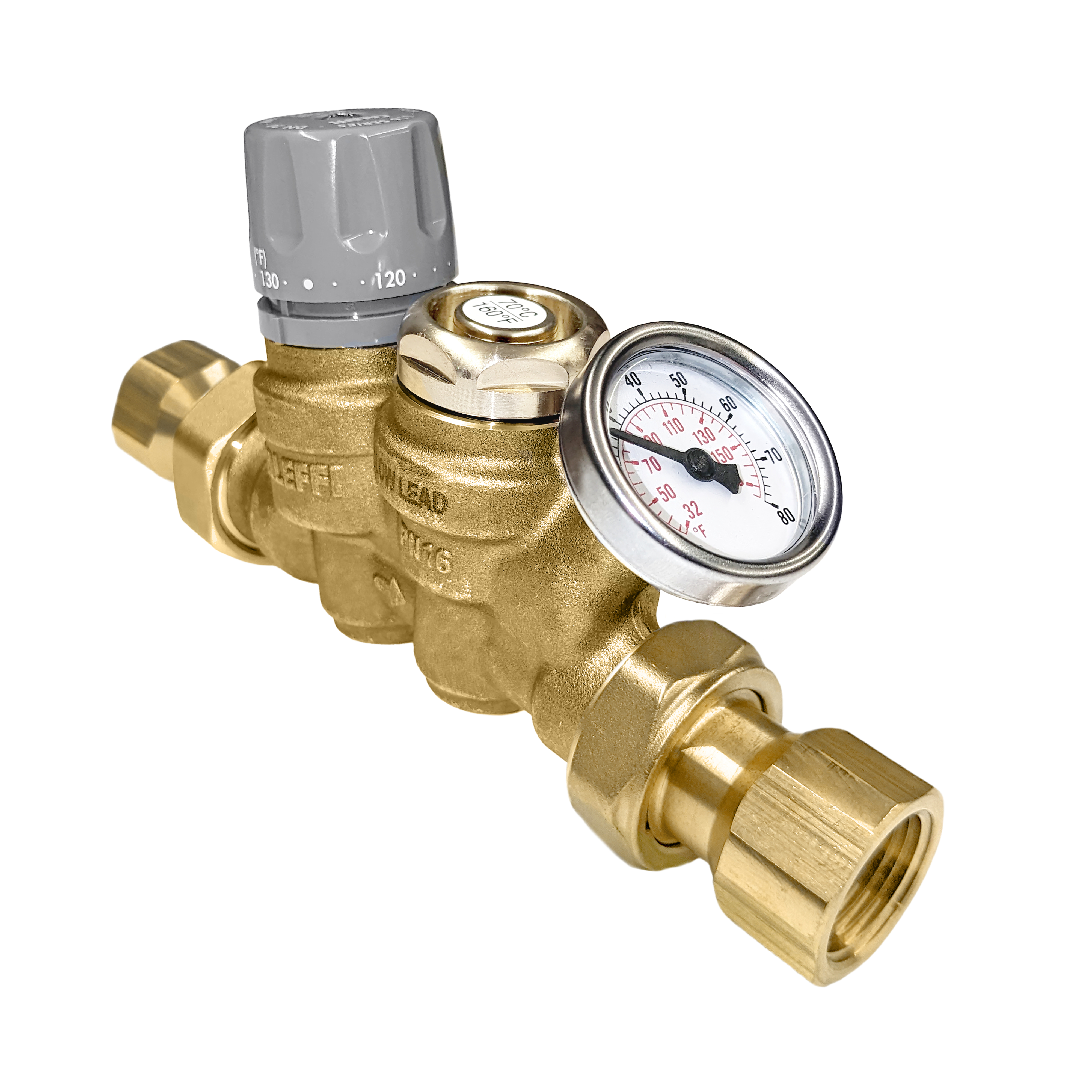

ThermoSetter™, Adjustable thermal balancing valve with disinfection bypass cartridge (NPT)

Go to

Download high resolution

Product Description

Adjustable thermal balancing valve with disinfection bypass cartridge (NPT)
For use in domestic hot water recirculation circuits
Dual union connections
Complete with:

Thermal disinfection bypass cartridge
Outlet check valve
Temperature gauge

Optional:

Union isolation valves

Technical data

Maximum operating pressure: 230 psi

Adjustment temperature range: 95 – 140 °F

Max Cv: 2.1

Min Cv: 0.23

Disinfection Cv: 1.2

Material: DZR low lead brass

Download

Drawings and specifications

Part number	Connection	Note
116240AC 002	1/2" FNPT union	160°F bypass
3D models bim Tender text Adjustable thermal balancing valve with disinfection bypass cartridge (NPT) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermal disinfection bypass cartridge Outlet check valve Temperature gauge Optional: Union isolation valves connection: 1/2" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116240AC 102	1/2" FNPT union	160°F bypass, with isolation valves
3D models bim Tender text Adjustable thermal balancing valve with disinfection bypass cartridge (NPT) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermal disinfection bypass cartridge Outlet check valve Temperature gauge Optional: Union isolation valves connection: 1/2" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116250AC 002	3/4" FNPT union	160°F bypass
3D models bim Tender text Adjustable thermal balancing valve with disinfection bypass cartridge (NPT) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermal disinfection bypass cartridge Outlet check valve Temperature gauge Optional: Union isolation valves connection: 3/4" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116250AC 102	3/4" FNPT union	160°F bypass, with isolation valves
3D models bim Tender text Adjustable thermal balancing valve with disinfection bypass cartridge (NPT) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermal disinfection bypass cartridge Outlet check valve Temperature gauge Optional: Union isolation valves connection: 3/4" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116640AC 002	1/2" FNPT union	140°F bypass
3D models bim Tender text Adjustable thermal balancing valve with disinfection bypass cartridge (NPT) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermal disinfection bypass cartridge Outlet check valve Temperature gauge Optional: Union isolation valves connection: 1/2" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116640AC 102	1/2" FNPT union	140°F bypass, with isolation valves
3D models bim Tender text Adjustable thermal balancing valve with disinfection bypass cartridge (NPT) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermal disinfection bypass cartridge Outlet check valve Temperature gauge Optional: Union isolation valves connection: 1/2" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116650AC 002	3/4" FNPT union	140°F bypass
3D models bim Tender text Adjustable thermal balancing valve with disinfection bypass cartridge (NPT) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermal disinfection bypass cartridge Outlet check valve Temperature gauge Optional: Union isolation valves connection: 3/4" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
116650AC 102	3/4" FNPT union	140°F bypass, with isolation valves
3D models bim Tender text Adjustable thermal balancing valve with disinfection bypass cartridge (NPT) For use in domestic hot water recirculation circuits Dual union connections Complete with: Thermal disinfection bypass cartridge Outlet check valve Temperature gauge Optional: Union isolation valves connection: 3/4" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 95 – 140 °F. Max Cv: 2.1. Min Cv: 0.23. Disinfection Cv: 1.2. Material: DZR low lead brass.
