Series 1164

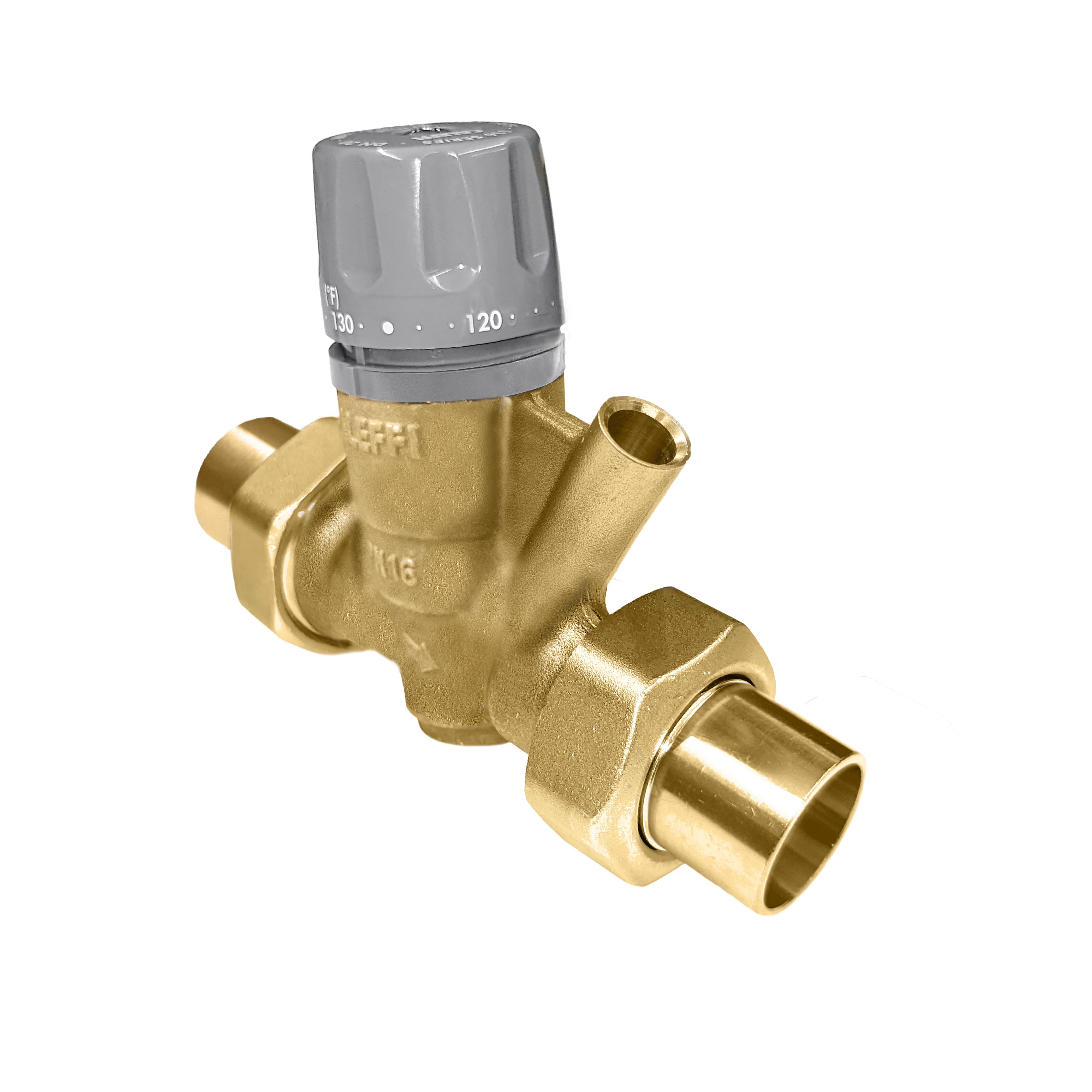

ThermoSetter™ Compact, Adjustable thermal balancing valve (sweat)

Go to

Download high resolution

Product Description

Adjustable thermal balancing valve (sweat)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:

Outlet check valve

Optional:

Union isolation valves
Temperature gauge

Technical data

Material: DZR low lead brass

Design Cv: 0.69

Min Cv: 0.35

Max Cv: 2.1

Adjustment temperature range: 105 – 150 °F

Maximum operating pressure: 230 psi

Download

Drawings and specifications

Part number	Connection	Note
116440AC 009	1/2" Press sweat union	-
3D models bim Tender text CALEFFI, 116440AC 009, ThermoSetter™ Compact. Adjustable thermal balancing valve (sweat) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2" Press, sweat union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116440AC 109	1/2" Press sweat union	With isolation valves
3D models bim Tender text CALEFFI, 116440AC 109, ThermoSetter™ Compact. Adjustable thermal balancing valve (sweat) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2" Press, sweat union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116441AC 009	1/2" Press sweat union	With temperature gauge
3D models bim Tender text CALEFFI, 116441AC 009, ThermoSetter™ Compact. Adjustable thermal balancing valve (sweat) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2" Press, sweat union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116441AC 109	1/2" Press sweat union	With temperature gauge and isolation valves
3D models bim Tender text CALEFFI, 116441AC 109, ThermoSetter™ Compact. Adjustable thermal balancing valve (sweat) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2" Press, sweat union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116450AC 009	3/4" Press sweat union	-
3D models bim Tender text CALEFFI, 116450AC 009, ThermoSetter™ Compact. Adjustable thermal balancing valve (sweat) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4" Press, sweat union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116450AC 109	3/4" Press sweat union	With isolation valves
3D models bim Tender text CALEFFI, 116450AC 109, ThermoSetter™ Compact. Adjustable thermal balancing valve (sweat) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4" Press, sweat union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116451AC 009	3/4" Press sweat union	With temperature gauge
3D models bim Tender text CALEFFI, 116451AC 009, ThermoSetter™ Compact. Adjustable thermal balancing valve (sweat) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4" Press, sweat union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116451AC 109	3/4" Press sweat union	With temperature gauge and isolation valves
3D models bim Tender text CALEFFI, 116451AC 109, ThermoSetter™ Compact. Adjustable thermal balancing valve (sweat) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4" Press, sweat union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
