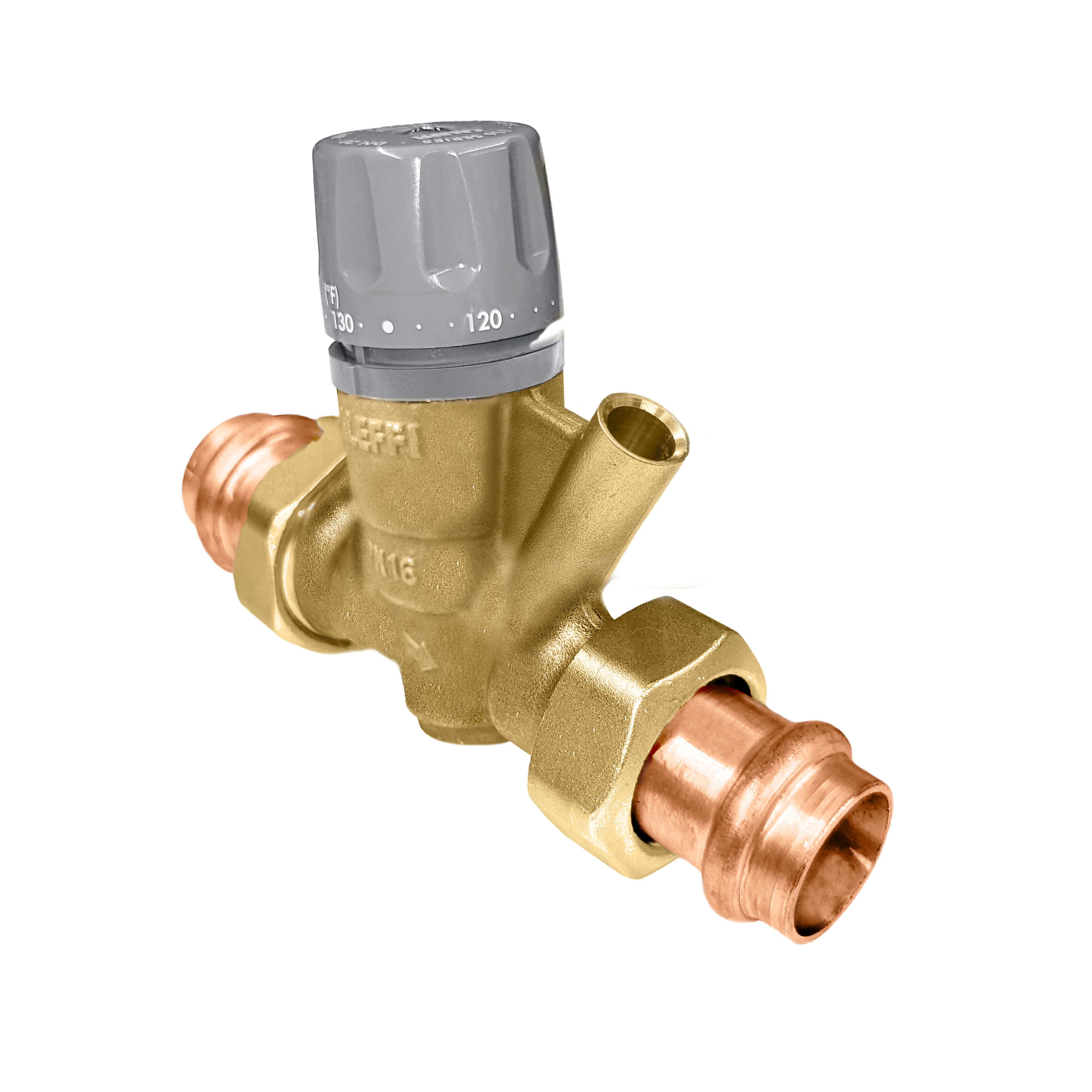

ThermoSetter™ Compact, Adjustable thermal balancing valve (press)
Product Description
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
- Outlet check valve
Optional:
- Union isolation valves
- Temperature gauge
Technical data
Maximum operating pressure:
230 psi
Adjustment temperature range:
105 – 150 °F
Max Cv:
2.1
Min Cv:
0.35
Design Cv:
0.69
Material:
DZR low lead brass
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 116440AC 006 | 1/2" press union |
- | |
|
3D models
Tender text
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
Outlet check valve
Optional:
Union isolation valves
Temperature gauge
connection: 1/2", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
|
|||
| 116440AC 106 | 1/2" press union |
With isolation valves | |
|
3D models
Tender text
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
Outlet check valve
Optional:
Union isolation valves
Temperature gauge
connection: 1/2", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
|
|||
| 116441AC 006 | 1/2" press union |
With temperature gauge | |
|
3D models
Tender text
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
Outlet check valve
Optional:
Union isolation valves
Temperature gauge
connection: 1/2", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
|
|||
| 116441AC 106 | 1/2" press union |
With temperature gauge and isolation valves | |
|
3D models
Tender text
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
Outlet check valve
Optional:
Union isolation valves
Temperature gauge
connection: 1/2", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
|
|||
| 116450AC 006 | 3/4" press union |
- | |
|
3D models
Tender text
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
Outlet check valve
Optional:
Union isolation valves
Temperature gauge
connection: 3/4", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
|
|||
| 116450AC 106 | 3/4" press union |
With isolation valves | |
|
3D models
Tender text
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
Outlet check valve
Optional:
Union isolation valves
Temperature gauge
connection: 3/4", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
|
|||
| 116451AC 006 | 3/4" press union |
With temperature gauge | |
|
3D models
Tender text
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
Outlet check valve
Optional:
Union isolation valves
Temperature gauge
connection: 3/4", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
|
|||
| 116451AC 106 | 3/4" press union |
With temperature gauge and isolation valves | |
|
3D models
Tender text
Adjustable thermal balancing valve (press)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:
Outlet check valve
Optional:
Union isolation valves
Temperature gauge
connection: 3/4", press union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
|
|||
