Series 1164

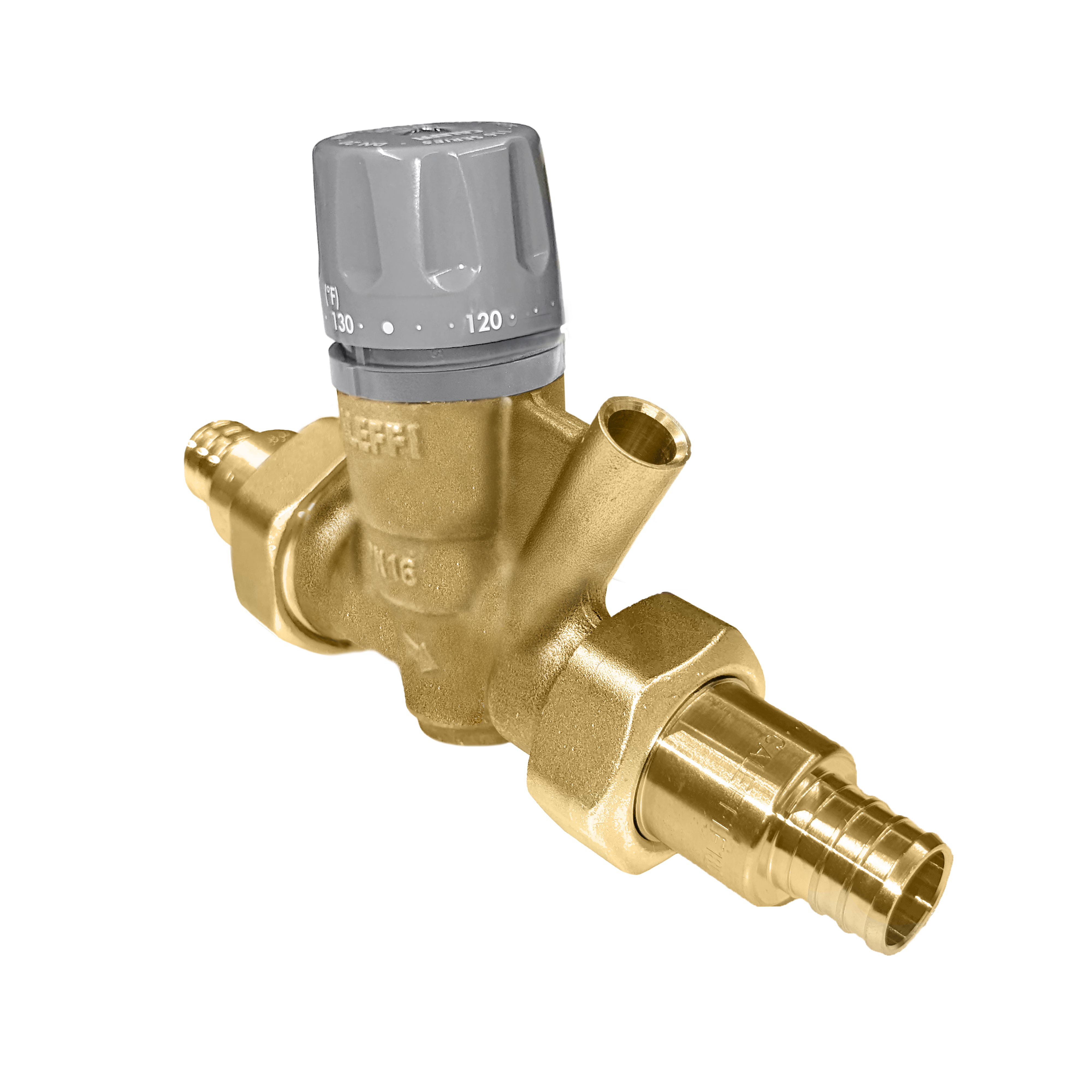

ThermoSetter™ Compact, Adjustable thermal balancing valve (PEX)

Go to

Download high resolution

Product Description

Adjustable thermal balancing valve (PEX)
For use in domestic hot water recirculation circuits
Compact design for installations not requiring thermal disinfection
Dual union connections
Complete with:

Outlet check valve

Optional:

Union isolation valves
Temperature gauge

Technical data

Maximum operating pressure: 230 psi

Adjustment temperature range: 105 – 150 °F

Max Cv: 2.1

Min Cv: 0.35

Design Cv: 0.69

Material: DZR low lead brass

Download

Drawings and specifications

Part number	Connection	Note
116440AC 007	1/2" PEX crimp union	-
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116440AC 008	1/2" PEX expansion union	-
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116440AC 107	1/2" PEX crimp union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116440AC 108	1/2" PEX expansion union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116441AC 007	1/2" PEX crimp union	With temperature gauge
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116441AC 008	1/2" PEX expansion union	With temperature gauge
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116441AC 107	1/2" PEX crimp union	With temperature gauge and isolation valves
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116441AC 108	1/2" PEX expansion union	With temperature gauge and isolation valves
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 1/2", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116450AC 007	3/4" PEX crimp union	-
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116450AC 008	3/4" PEX expansion union	-
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116450AC 107	3/4" PEX crimp union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116450AC 108	3/4" PEX expansion union	With isolation valves
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116451AC 007	3/4" PEX crimp union	With temperature gauge
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116451AC 008	3/4" PEX expansion union	With temperature gauge
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116451AC 107	3/4" PEX crimp union	With temperature gauge and isolation valves
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX crimp union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
116451AC 108	3/4" PEX expansion union	With temperature gauge and isolation valves
3D models bim Tender text Adjustable thermal balancing valve (PEX) For use in domestic hot water recirculation circuits Compact design for installations not requiring thermal disinfection Dual union connections Complete with: Outlet check valve Optional: Union isolation valves Temperature gauge connection: 3/4", PEX expansion union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 – 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69. Material: DZR low lead brass.
