ThermoSetter™ Compact, Thermal balancing valve (NPT).
Product Description
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Technical data
Maximum operating pressure:
230 psi
Adjustment temperature range:
105 - 150 °F, 105-150 °F
Download
Drawings and specifications
Code | Primary Connection | Note | Max Cv |
---|---|---|---|
116440AC 002 | 1/2" FNPT union |
- | 2.1 |
Min Cv
0.35
|
Design Cv
0.69
|
||
3D models
Tender text
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Primary Connection: 1/2" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 - 150 °F. Max Cv: 2.1. Min Cv: 0.35. Design Cv: 0.69.
|
|||
116440AC 102 | 1/2" FNPT union |
Includes isolation valves | 2.1 gpm |
Min Cv
0.35 gpm
|
Design Cv
0.69 gpm
|
||
3D models
Tender text
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Primary Connection: 1/2" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 - 150 °F. Max Cv: 2.1 gpm. Min Cv: 0.35 gpm. Design Cv: 0.69 gpm.
|
|||
116441AC 002 | 1/2" FNPT union |
Includes gauge | 2.1 gpm |
Min Cv
0.35 gpm
|
Design Cv
0.69 gpm
|
||
3D models
Tender text
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Primary Connection: 1/2" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 - 150 °F. Max Cv: 2.1 gpm. Min Cv: 0.35 gpm. Design Cv: 0.69 gpm.
|
|||
116441AC 102 | 1/2" FNPT union |
Includes isolation valves and gauge | 2.1 gpm |
Min Cv
0.35 gpm
|
Design Cv
0.69 gpm
|
||
3D models
Tender text
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Primary Connection: 1/2" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 - 150 °F. Max Cv: 2.1 gpm. Min Cv: 0.35 gpm. Design Cv: 0.69 gpm.
|
|||

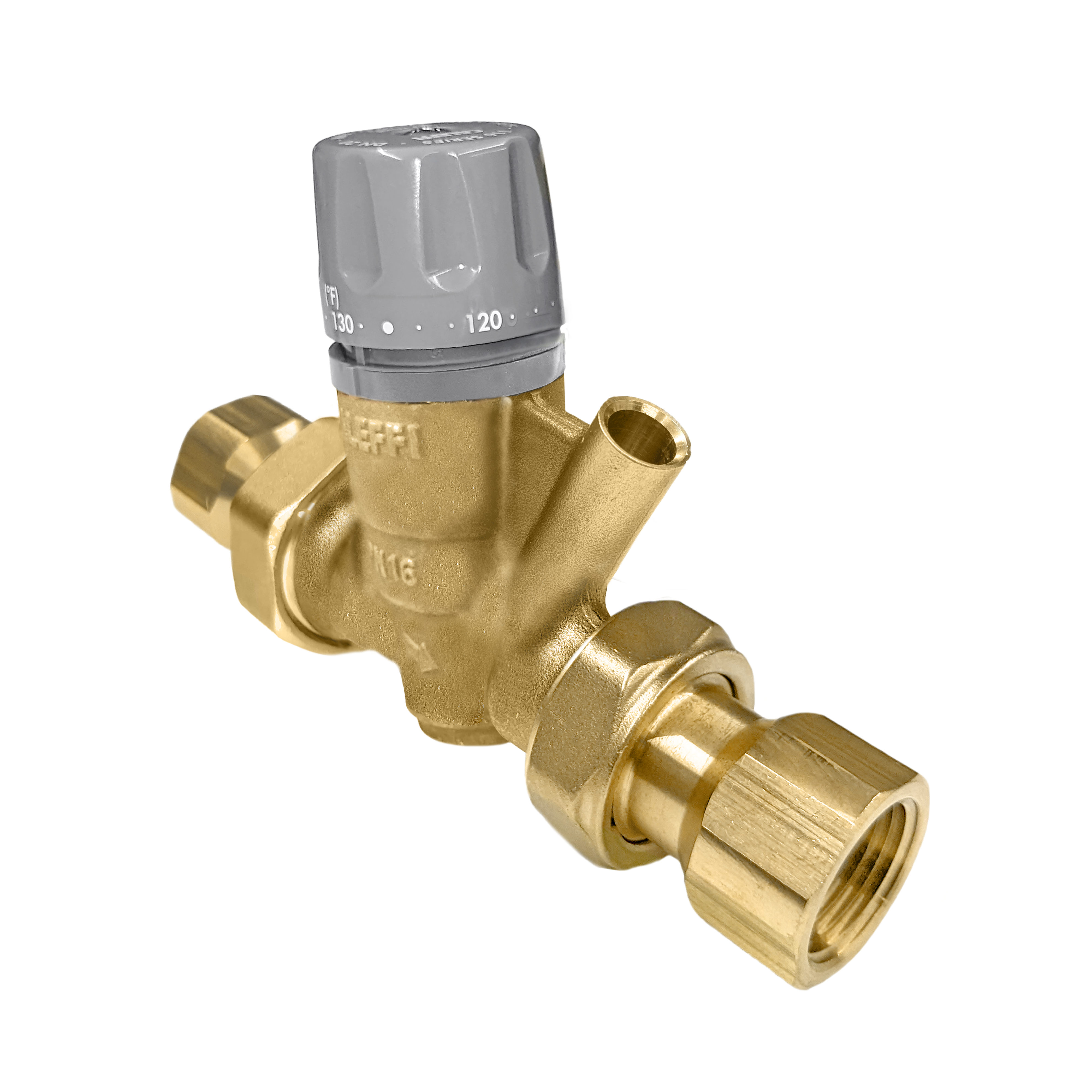

116450AC 002 | 3/4" FNPT union |
2.1 gpm | 0.35 gpm |
Design Cv
0.69 gpm
|
|||
3D models
Tender text
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Primary Connection: 3/4" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 - 150 °F. Max Cv: 2.1 gpm. Min Cv: 0.35 gpm. Design Cv: 0.69 gpm.
|
|||
116450AC 102 | 3/4" FNPT union |
Includes isolation valves | 2.1 gpm |
Min Cv
0.35 gpm
|
Design Cv
0.69 gpm
|
||
3D models
Tender text
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Primary Connection: 3/4" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 - 150 °F. Max Cv: 2.1 gpm. Min Cv: 0.35 gpm. Design Cv: 0.69 gpm.
|
|||
116451AC 002 | 3/4" FNPT union |
Includes gauge | 2.1 gpm |
Min Cv
0.35 gpm
|
Design Cv
0.69 gpm
|
||
3D models
Tender text
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Primary Connection: 3/4" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105-150 °F. Max Cv: 2.1 gpm. Min Cv: 0.35 gpm. Design Cv: 0.69 gpm.
|
|||
116451AC 102 | 3/4" FNPT union |
Includes isolation valves and gauge | 2.1 gpm |
Min Cv
0.35 gpm
|
Design Cv
0.69 gpm
|
||
3D models
Tender text
Thermal balancing valve (NPT).
Features union connections.
For domestic hot water recirculation circuits.
Drywell for optional temperature gauge or probe.
Primary Connection: 3/4" FNPT, union. Maximum operating pressure: 230 psi. Adjustment temperature range: 105 - 150 °F. Max Cv: 2.1 gpm. Min Cv: 0.35 gpm. Design Cv: 0.69 gpm.
|
