Code	Connection	Note	Flow rate working range
750410A	2 1/2" ANSI 150 flange	Energy meter	11–110 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 2 1/2" ANSI 150 flange. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 11–110 gpm. Material: brass. SCIP code e95ed7cd-3032-46b8-8631-b78c36d2f01b
750411A	3" ANSI 150 flange	Energy meter	14–140 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 3" ANSI 150 flange. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 14–140 gpm. Material: brass. SCIP code 8f1c8223-cd1c-4e92-bf1f-91a95e682271
750412A	4" ANSI 150 flange	Energy meter	22–220 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 4" ANSI 150 flange. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 22–220 gpm. Material: brass. SCIP code 95f120b9-aa34-40ce-9c5f-4529bd267dfd
750413A	5'' ANSI 150 flange	Energy meter	35–350 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 5'' ANSI 150 flange. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 35–350 gpm. Material: brass. SCIP code 4635e259-e387-44b8-afa1-c32c1abc9b57
750414A	6'' ANSI 150 flange	Energy meter	88–880 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 6'' ANSI 150 flange. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 88–880 gpm. Material: brass. SCIP code 146ee7ba-6c6c-4829-b17f-65c66c13e371
750415A	8'' ANSI 150 flange	Energy meter	100–1000 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 8'' ANSI 150 flange. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 100–1000 gpm. Material: brass. SCIP code 799d51ec-de97-4790-a045-7e07c890afc5
750440A	1/2" MNPT	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1/2" MNPT. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.
750446A	1/2" press	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1/2", press. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.

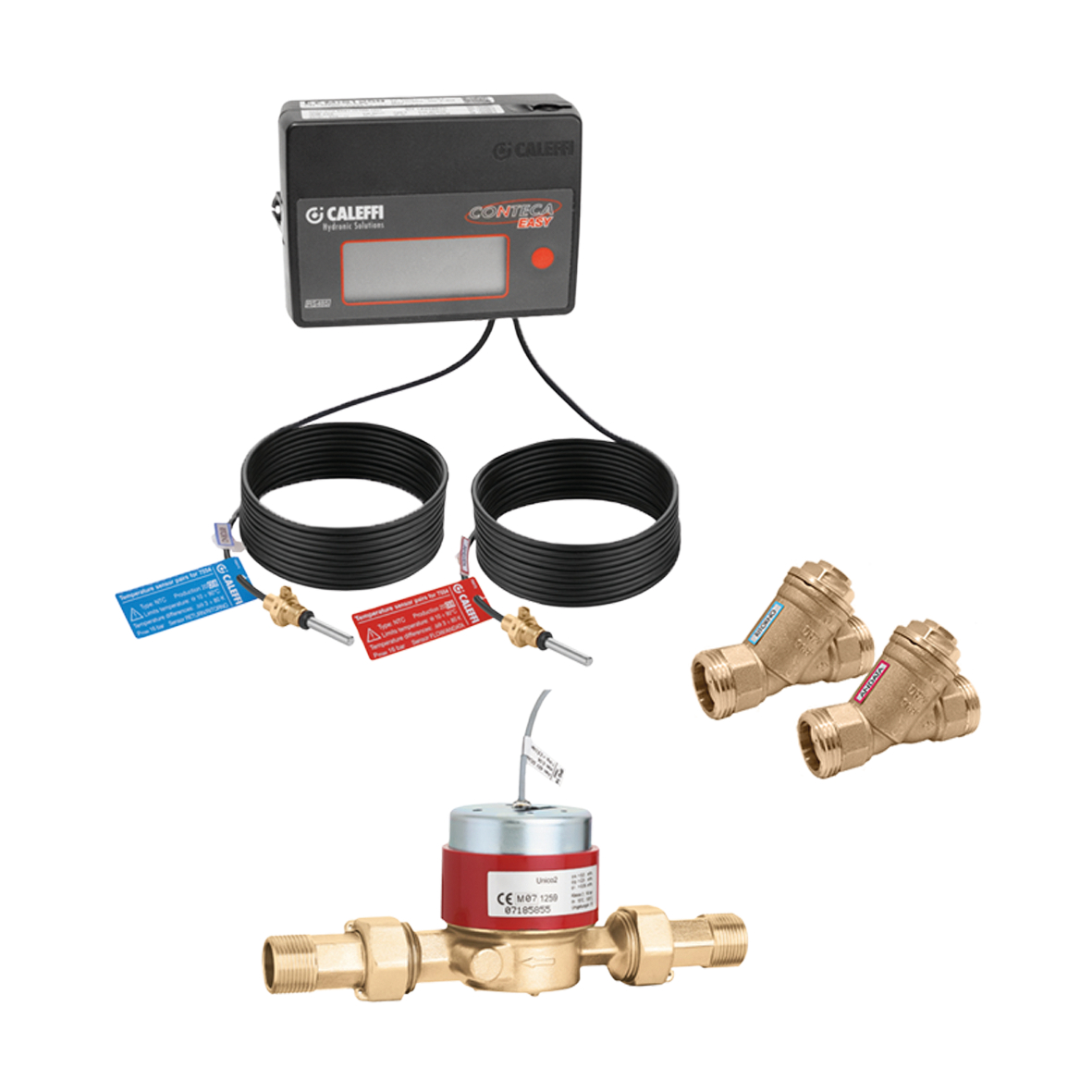

750449A	1/2" sweat	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1/2", sweat. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.
750450A	3/4" MNPT	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 3/4" MNPT. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.
750456A	3/4" press	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 3/4", press. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.
750459A	3/4" sweat	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 3/4", sweat. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.
750460A	1" MNPT	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1" MNPT. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.
750463A	1" FNPT	Energy meter	0.3–15 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1" FNPT. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.3–15 gpm.
750466A	1" press	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1", press. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.
750469A	1" sweat	Energy meter	0.25-10 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1", sweat. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.25-10 gpm.
750473A	1 1/4" FNPT	Energy meter	0.5–25 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1 1/4" FNPT. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 0.5–25 gpm.
750483A	1 1/2" FNPT	Energy meter	1-45 gpm
3D models bim Tender text Energy meter CONTECA is a direct heat meter designed to measure instantaneous and recorded history of thermal energy usage in residential and commercial buildings. Data transmission: 2-wire RS-485; selectable Modbus or M-bus (for use with Datalogger). Pulse inputs: Class 1B per EN 1434-2. Body threads: ISO 228 male straight. Environmental rating: NEMA 3S (IP 54). Sensor type: 100 kohm NTC matched. Temperature sensitivity: < 0.1°F. connection: 1 1/2" FNPT. Ambient temperature range: 40–113 °F. Electric supply: 24 V AC. Power consumption at full capacity: 1 W. Supply cable length: 8 m. Flow rate working range: 1-45 gpm.
