FlowCal™, Automatic flow balancing valve
Product Description

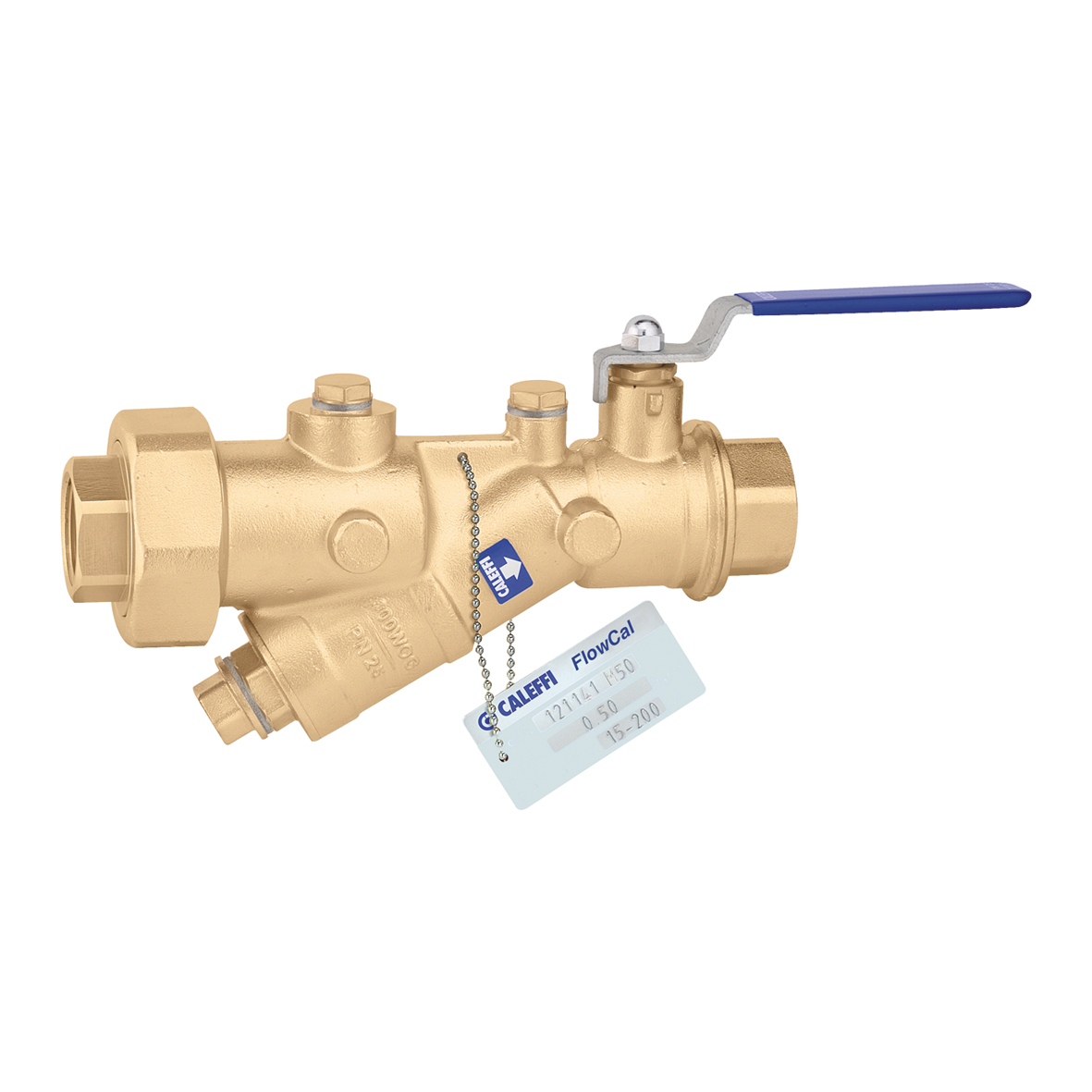

Automatic flow balancing valve
US Patent 7,246,635 B2.
Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge.
Available with optional factory-installed pressure and temperature test ports (1213xxx series).
Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid.
Flow rate: fixed flow rate settings ranging from 0.35—21 GPM.
Technical data
Maximum working pressure:
400 psi
Medium temperature range:
32–212 °F
Maximum percentage of glycol:
50 %
Medium:
water, glycol solutions
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | Note | |
|---|---|---|---|
| 121141A*** | 1/2" FNPT |
- | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1/2" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121149A*** | 1/2" sweat |
- | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1/2", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121151A*** | 3/4" FNPT |
- | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 3/4" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121159A*** | 3/4" sweat |
- | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 3/4", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121161A*** | 1" FNPT |
- | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121169A*** | 1" sweat |
- | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121171A*** | 1 1/4" FNPT |
- | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1 1/4" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121179A*** | 1 1/4" sweat |
- | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1 1/4", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121341A*** | 1/2" FNPT |
With PT test ports | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1/2" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121349A*** | 1/2" sweat |
With PT test ports | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1/2", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121351A*** | 3/4" FNPT |
With PT test ports | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 3/4" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121359A*** | 3/4" sweat |
With PT test ports | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 3/4", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121361A*** | 1" FNPT |
With PT test ports | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121369A*** | 1" sweat |
With PT test ports | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121371A*** | 1 1/4" FNPT |
With PT test ports | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1 1/4" FNPT. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
| 121379A*** | 1 1/4" sweat |
With PT test ports | |
|
3D models
Tender text
Automatic flow balancing valve
US Patent 7,246,635 B2. Automatic flow balancing valve with integral ball valve.
Patented anti-scale, low noise polymer FlowCal™ cartridge. Available with optional factory-installed pressure and temperature test ports (1213xxx series). Differential pressure control ranges: 2—14, 2—32, 4—34, 5—35 psid. Flow rate: fixed flow rate settings ranging from 0.35—21 GPM. Connection: 1 1/4", sweat. Maximum working pressure: 400 psi. Medium temperature range: 32–212 °F. Maximum percentage of glycol: 50 %. Medium: water, glycol solutions. Material: brass.
|
|||
