AutoFill™, Automatic filling valve (commercial applications)
Product Description

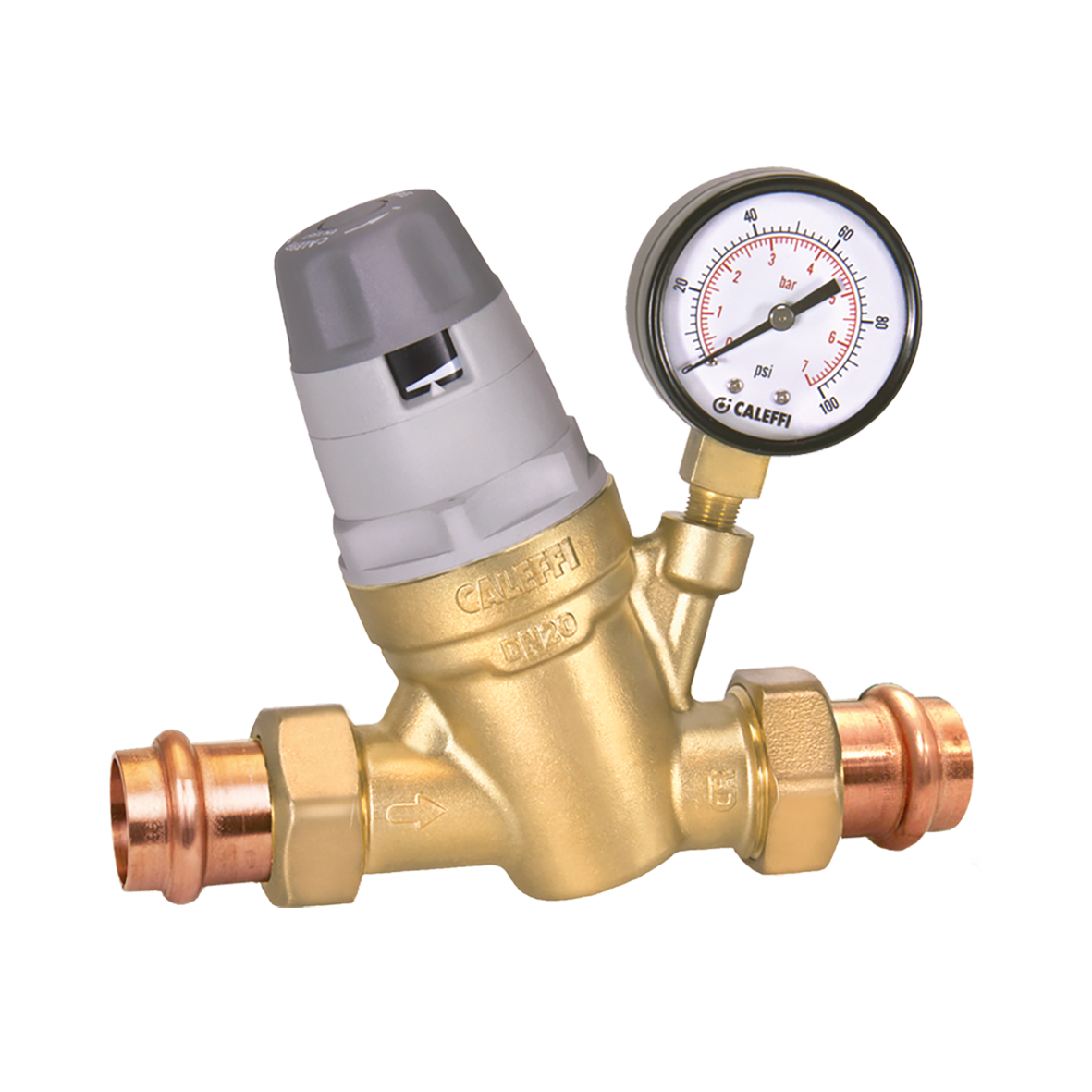

Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob.
Technical data
Maximum operating pressure:
365 psi
Maximum working temperature:
140 °F
Adjustment pressure range:
6–90 psi
Pressure gauge scale:
0–100 psi
Pressure gauge scale - Notes:
0–7 bar
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 535051A | 3/4" MNPT union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 3/4" MNPT, union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535056A | 3/4" sweat union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 3/4", sweat union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535057A | 3/4" PEX crimp union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 3/4", PEX crimp union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535058A | 3/4" PEX expansion union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 3/4", PEX expansion union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535059A | 3/4" sweat union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 3/4", sweat union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535061A | 1" M NPT union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 1" M NPT, union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535066A | 1" press union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 1", press union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535067A | 1" PEX crimp union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 1", PEX crimp union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535068A | 1" PEX expansion union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 1", PEX expansion union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
| 535069A | 1" sweat union |
||
|
3D models
Tender text
Automatic filling valve (commercial applications)
Complete with integral downstream pressure gauge and pressure setting adjustment knob. connection: 1", sweat union. Maximum operating pressure: 365 psi. Maximum working temperature: 140 °F. Adjustment pressure range: 6–90 psi. Pressure gauge scale: 0–100 psi (0–7 bar).
|
|||
