Series NA551

DISCAL®, Air separator (ANSI flange ASME & CRN, 8-12")

Go to
Download high resolution

Product Description

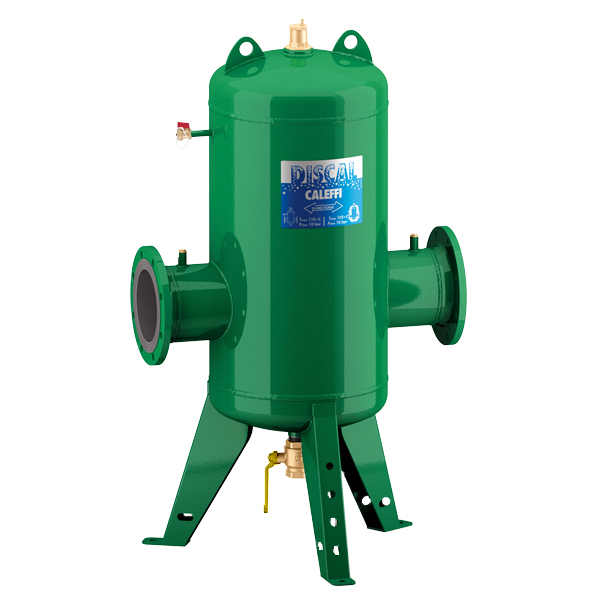

Air separator (ANSI flange ASME & CRN, 8-12")
Stainless steel float guide pin and linkage
Stainless steel mesh internal element
Complete with:

  • ½ MNPT side drain valve
  • 2" FNPT bottom drain valve
  • Thermometer pockets (NPT): ½" inlet/outlet flanges

Technical data

Maximum operating pressure: 200 psi
Fluid temperature range: 32–270 °F
Material: steel

Note

NA prefix indicates ASME U-stamp tagged and registered with the National Board of Boiler and Pressure Vessel Inspectors; CRN registered

Drawings and specifications

Code Connection
3D models
Tender text
Air separator (ANSI flange ASME & CRN, 8-12") Stainless steel float guide pin and linkage Stainless steel mesh internal element Complete with: ½ MNPT side drain valve 2" FNPT bottom drain valve Thermometer pockets (NPT): ½" inlet/outlet flanges connection: 8'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 200 psi. Fluid temperature range: 32–270 °F. Material: steel.
3D models
Tender text
Air separator (ANSI flange ASME & CRN, 8-12") Stainless steel float guide pin and linkage Stainless steel mesh internal element Complete with: ½ MNPT side drain valve 2" FNPT bottom drain valve Thermometer pockets (NPT): ½" inlet/outlet flanges connection: 10'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 200 psi. Fluid temperature range: 32–270 °F. Material: steel.
3D models
Tender text
Air separator (ANSI flange ASME & CRN, 8-12") Stainless steel float guide pin and linkage Stainless steel mesh internal element Complete with: ½ MNPT side drain valve 2" FNPT bottom drain valve Thermometer pockets (NPT): ½" inlet/outlet flanges connection: 12'' ANSI 150 flange, ASME & CRN. Maximum operating pressure: 200 psi. Fluid temperature range: 32–270 °F. Material: steel.
