TwisTop+™, 2-way thermo-electric zone valve (high performance)
Product Description
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator.
Pressure balanced body. 40% more flow, 75% more close-off.
Spring return. Normally closed.
Brass trim.
Power consumption: holding: 3 W. Power consumption: inrush: 6 VA.
Technical data
Maximum operating pressure:
150 psi
Fluid temperature range:
32-200 °F, 32–200 °F
Electric supply:
24 V (AC) / (DC)
Starting current:
≤ 250 mA
Auxiliary microswitch contact rating (24 V):
5 A
Maximum △p:
35 psi
Material:
brass
Download
Drawings and specifications
Code | Connection | Note | Cv |
---|---|---|---|
676746A | 1/2" press union |
5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: 1/2", press union. Maximum operating pressure: 150 psi. Fluid temperature range: 32-200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 35 psi. Cv: 5.6 gpm. Material: brass.
|
|||
676749A | 1/2" sweat union |
5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: 1/2", sweat union. Maximum operating pressure: 150 psi. Fluid temperature range: 32-200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 35 psi. Cv: 5.6 gpm. Material: brass.
|
|||
676748A | - | 5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. Maximum operating pressure: 150 psi. Fluid temperature range: 32-200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Cv: 5.6 gpm. Material: brass.
|
|||

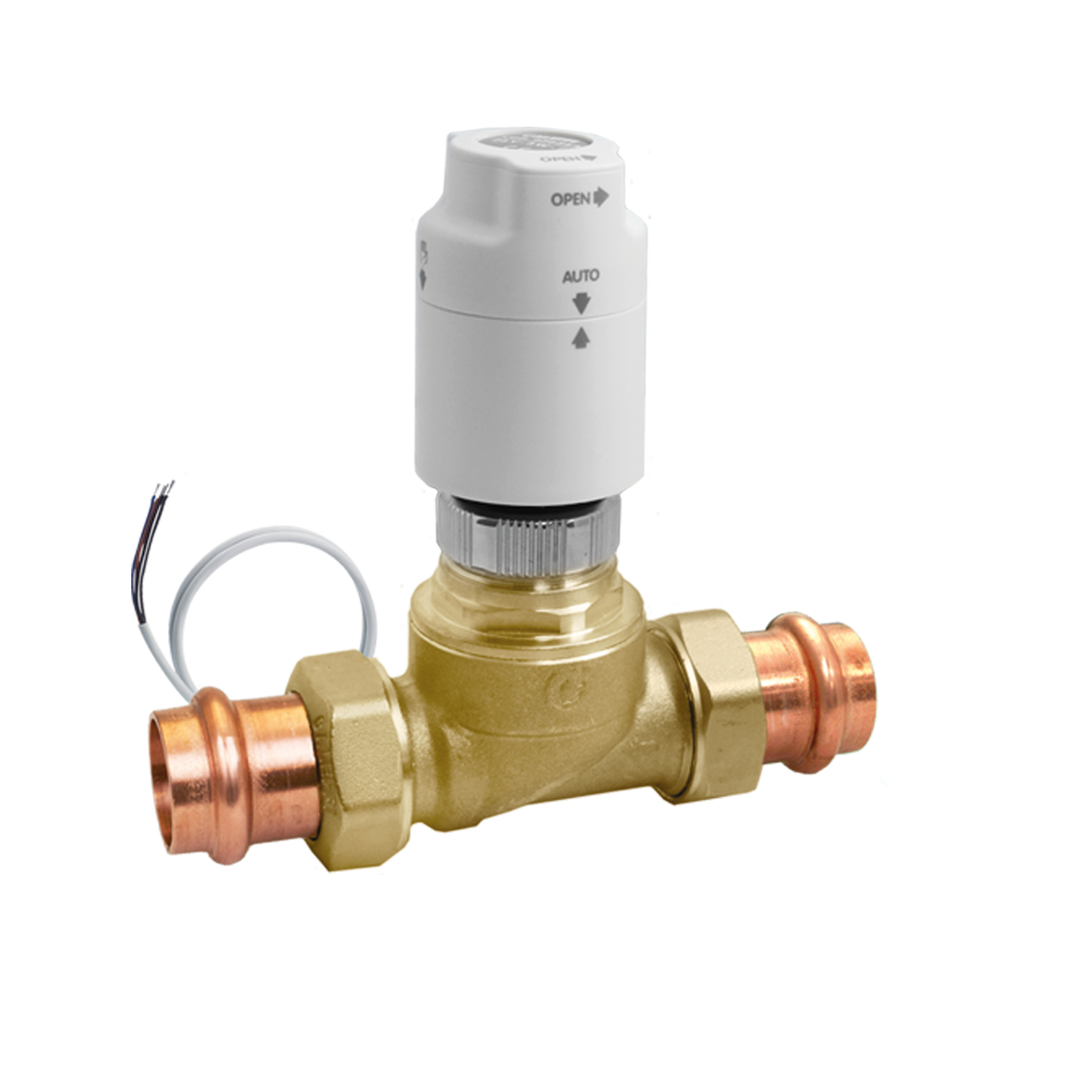

676756A | 3/4" press union |
5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: 3/4", press union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 35 psi. Cv: 5.6 gpm. Material: brass.
|
|||
676759A | 3/4" sweat union |
5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: 3/4", sweat union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 35 psi. Cv: 5.6 gpm. Material: brass.
|
|||
676758A | 3/4" PEX expansion union |
5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: 3/4", PEX expansion union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 35 psi. Cv: 5.6 gpm. Material: brass.
|
|||
676766A | 1" press union |
5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: 1", press union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 35 psi. Cv: 5.6 gpm. Material: brass.
|
|||
676769A | 1" sweat union |
5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: 1", sweat union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 35 psi. Cv: 5.6 gpm. Material: brass.
|
|||
676768A | 1" PEX expansion union |
5.6 gpm | $$ data missing $$ |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: 1", PEX expansion union. Maximum operating pressure: 150 psi. Fluid temperature range: 32–200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 35 psi. Cv: 5.6 gpm. Material: brass.
|
|||
676500A | - |
Body only, close-off | 5.6 gpm |
3D models
Tender text
2-way thermo-electric zone valve (high performance)
Complete with 656354 actuator. Pressure balanced body. 40% more flow, 75% more close-off. Spring return. Normally closed. Brass trim. Power consumption: holding: 3 W. Power consumption: inrush: 6 VA. connection: -. Maximum operating pressure: 150 psi. Fluid temperature range: 32–200 °F. Electric supply: 24 V (AC) / (DC). Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Cv: 5.6 gpm. Material: brass.
|
