TwisTop™, 2-way thermo-electric zone valve
Product Description
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
Technical data
Maximum operating pressure:
150 psi
Medium temperature range:
40 – 200 °F
Electric supply:
24 V AC/DC
Starting current:
≤ 250 mA
Auxiliary microswitch contact rating (24 V):
5 A
Maximum △p:
20 psi
Material:
brass
pdf
Drawings and specifications
| Part number | Connection | Note | Cv |
|---|---|---|---|
| 676246A | 1/2" Press press union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676246A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1/2" Press, press union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676247A | 1/2" Press PEX crimp union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676247A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1/2" Press, PEX crimp union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676248A | 1/2" Press PEX expansion union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676248A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1/2" Press, PEX expansion union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676249A | 1/2" Press sweat union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676249A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1/2" Press, sweat union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||

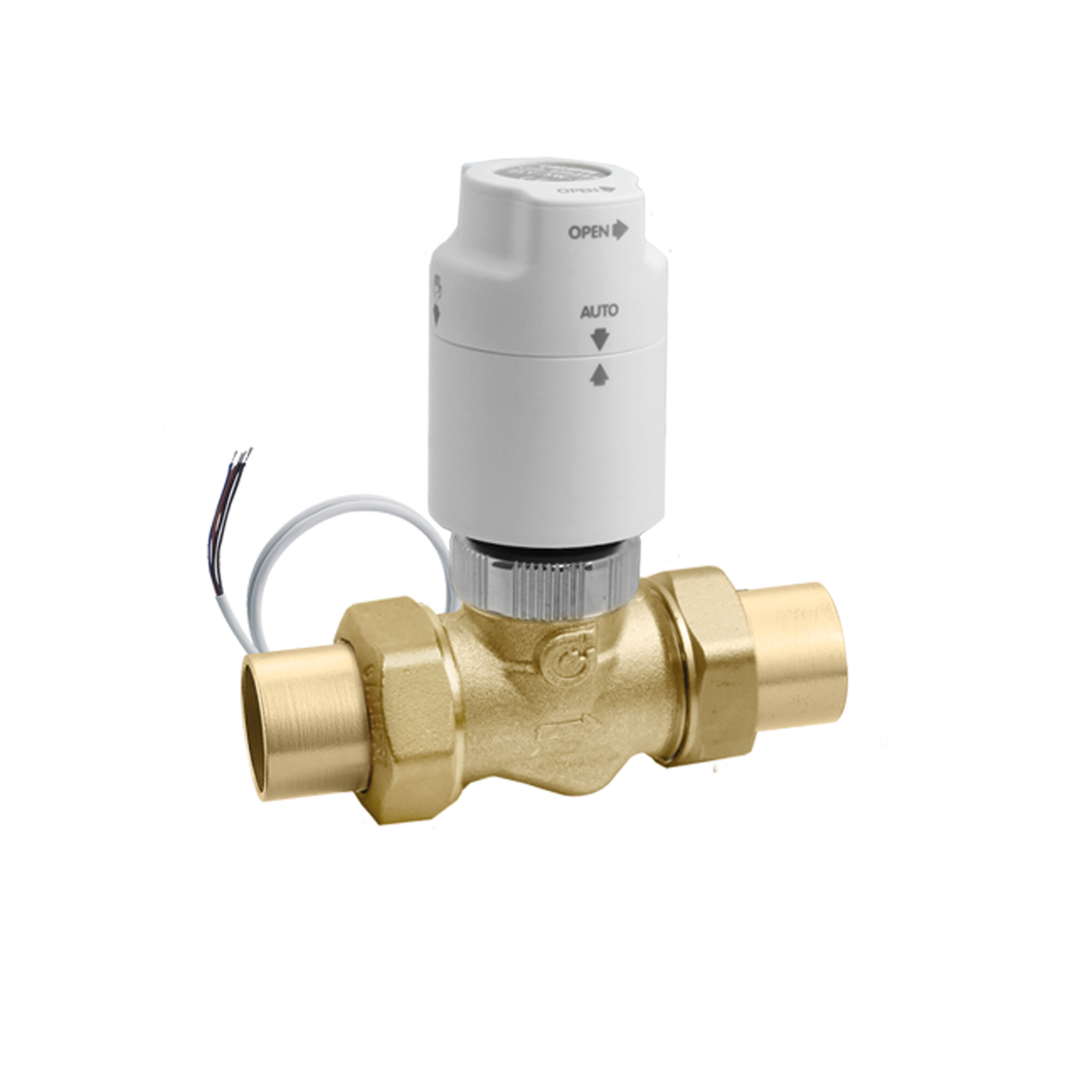

| 676256A | 3/4" Press press union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676256A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 3/4" Press, press union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676257A | 3/4" Press PEX crimp union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676257A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 3/4" Press, PEX crimp union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676258A | 3/4" Press PEX expansion union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676258A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 3/4" Press, PEX expansion union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676259A | 3/4" Press sweat union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676259A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 3/4" Press, sweat union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676266A | 1" Press press union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676266A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1" Press, press union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676267A | 1" Press PEX crimp union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676267A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1" Press, PEX crimp union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676268A | 1" Press PEX expansion union |
- | 4.0 |
|
3D models
Tender text
CALEFFI, 676268A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1" Press, PEX expansion union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676269A | 1" Press sweat union |
- | 4.0 |
|
2D drawings
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 676269A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1" Press, sweat union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
|
|||
| 676000A | 1" Press union |
Body only | 4.0 |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 676000A, TwisTop™.
2-way thermo-electric zone valve
Complete with TwisTop™ (code 656354) actuator
Normally closed
connection: 1" Press, union. Maximum operating pressure: 150 psi. Medium temperature range: 40 – 200 °F. Electric supply: 24 V AC/DC. Starting current: ≤ 250 mA. Auxiliary microswitch contact rating (24 V): 5 A. Maximum △p: 20 psi. Cv: 4.0. Material: brass.
SCIP code
f7f4be19-2f82-4777-b6e5-b89e5417a30f
|
|||
bim
igs
stp
