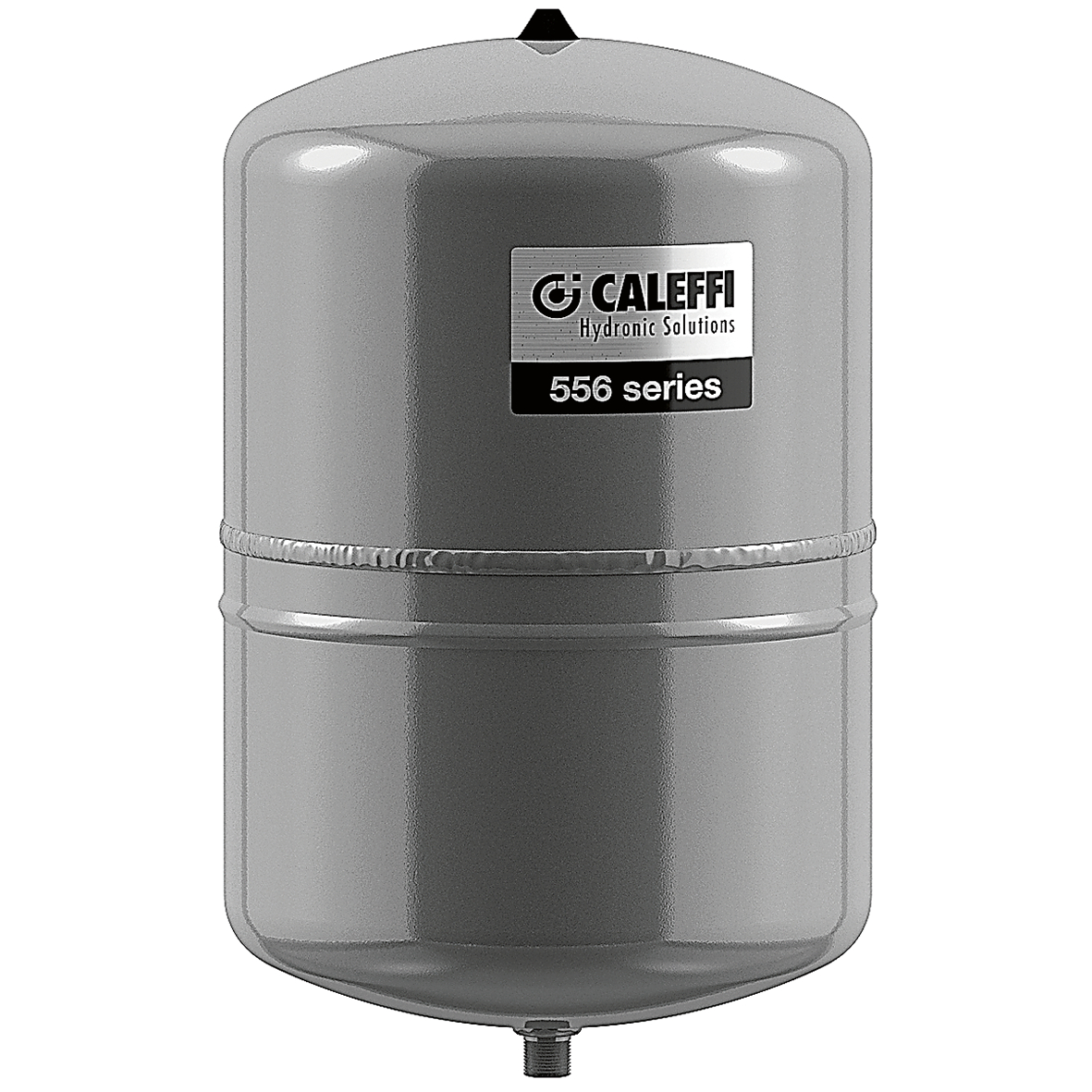

Series 556

Welded expansion vessel, for heating systems, EC certification.

Download high resolution

Product Description

Welded expansion vessel, for heating systems, EC certification.
Diaphragm membrane.
Conformity to EN 13831 standard.

Technical data

Maximum working pressure: 6 bar

System working temperature range: -10–120 °C

Diaphragm temperature range: -10–70 °C

Maximum percentage of glycol: 50 %

Medium: technical water, glycol solutions

Certifications

Download

Application diagrams

90.10 - CT con pompa di calore monoblocco e produzione ACS esterna

20.40 - CHS with biomass and traditional fuel boilers with DHW production in CH…

30.40 - CHS with biomass boiler and DHW production in CHS

30.45 - CHS with biomass boiler (no DHW production in CHS)

70.20 - Air-based heat pump system and boiler with instantaneous DHW production

70.30 - Floorstanding boiler system and external DHW production with storage (2…

75.20 - Air-based heat pump system and boiler with instantaneous DHW production

75.25 - Heating/cooling system with air-based heat pump and boiler with instant…

75.30 - Biomass and traditional fuel boiler system, inertial water storage with…

Drawings and specifications

Part number	Connection	Pre-charge	Volume
556008	R 3/4" (EN 10226-1) M	1,5 bar	8 l
2D drawings pdf Download this file dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556008%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556008%20%28dxf%29.dxf 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556008%20%28igs%29.igs bim Tender text Welded expansion vessel, for heating systems, EC certification. Diaphragm membrane. Conformity to EN 13831 standard. connection: R 3/4" (EN 10226-1) M. Maximum working pressure: 6 bar. System working temperature range: -10–120 °C. Diaphragm temperature range: -10–70 °C. Pre-charge: 1,5 bar. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Volume: 8 l.
556012	R 3/4" (EN 10226-1) M	1,5 bar	12 l
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556012%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556012%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556012%20%28igs%29.igs bim Tender text Welded expansion vessel, for heating systems, EC certification. Diaphragm membrane. Conformity to EN 13831 standard. connection: R 3/4" (EN 10226-1) M. Maximum working pressure: 6 bar. System working temperature range: -10–120 °C. Diaphragm temperature range: -10–70 °C. Pre-charge: 1,5 bar. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Volume: 12 l.
556018	R 3/4" (EN 10226-1) M	1,5 bar	18 l
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556018%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556018%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556018%20%28igs%29.igs bim Tender text Welded expansion vessel, for heating systems, EC certification. Diaphragm membrane. Conformity to EN 13831 standard. connection: R 3/4" (EN 10226-1) M. Maximum working pressure: 6 bar. System working temperature range: -10–120 °C. Diaphragm temperature range: -10–70 °C. Pre-charge: 1,5 bar. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Volume: 18 l.
556025	R 3/4" (EN 10226-1) M	1,5 bar	25 l
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556025%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556025%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556025%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/556025%20%28stp%29.stp bim Tender text Welded expansion vessel, for heating systems, EC certification. Diaphragm membrane. Conformity to EN 13831 standard. connection: R 3/4" (EN 10226-1) M. Maximum working pressure: 6 bar. System working temperature range: -10–120 °C. Diaphragm temperature range: -10–70 °C. Pre-charge: 1,5 bar. Maximum percentage of glycol: 50 %. Medium: technical water, glycol solutions. Volume: 25 l.
