Series 5450

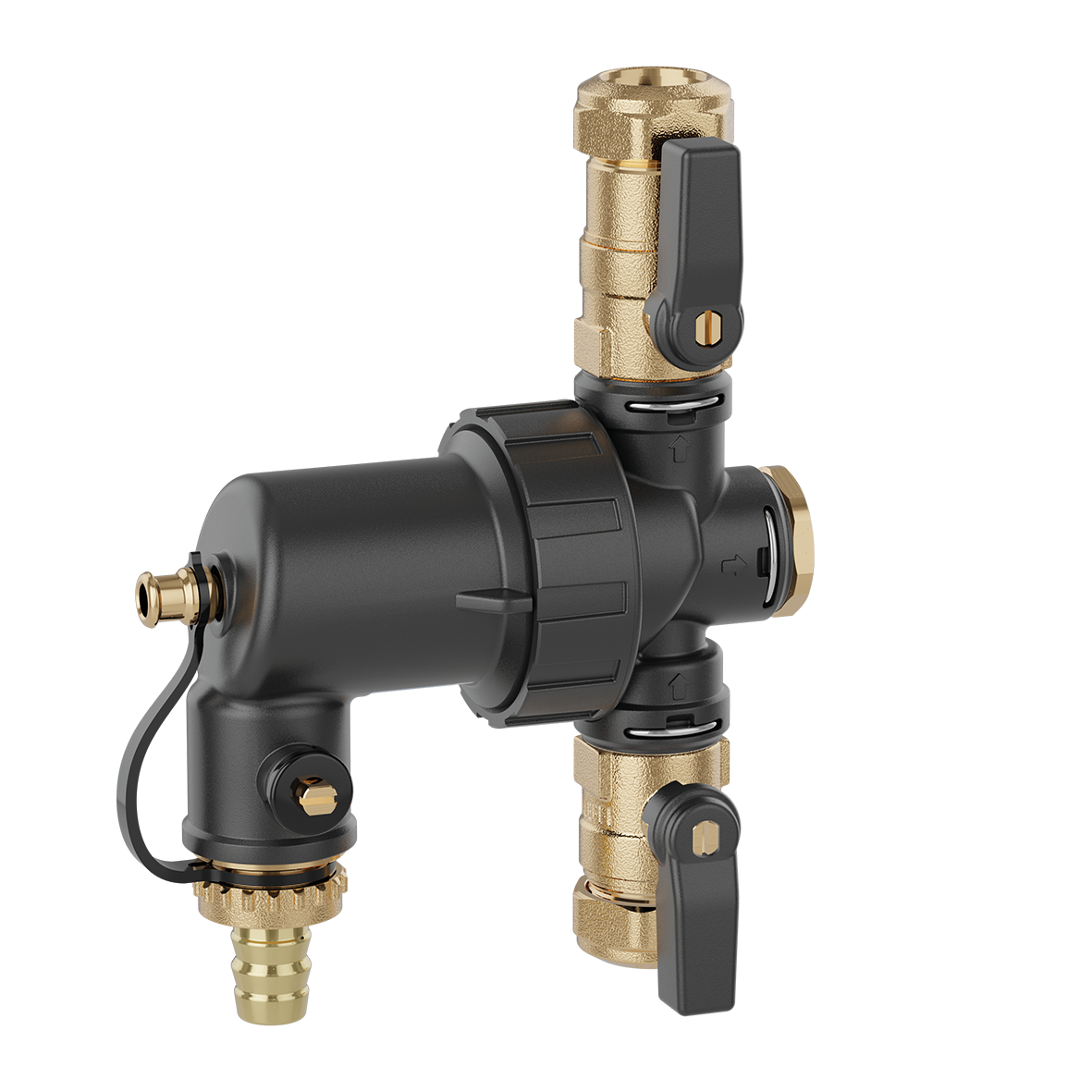

DIRTMAGMINI®, Under-boiler dirt separator strainer with magnet and shut-off valves.

Download high resolution

Product Description

Under-boiler dirt separator strainer with magnet and shut-off valves.
Drain cock with hose connection.
PATENT PENDING

Technical data

Maximum working pressure: 3 bar

Medium temperature range: 0–90 °C

Material: technopolymer

Download

Drawings and specifications

Part number	Connection
545022	Ø 22
2D drawings dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/545022%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/545022%20%28dxf%29.dxf pdf Download this file 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/545022%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/545022%20%28stp%29.stp bim Tender text Under-boiler dirt separator strainer with magnet and shut-off valves. Drain cock with hose connection. Connection: Ø 22. Maximum working pressure: 3 bar. Medium temperature range: 0–90 °C. Material: technopolymer. SCIP code 15103ef3-84a7-40bc-9d35-cb4da2b8c711
