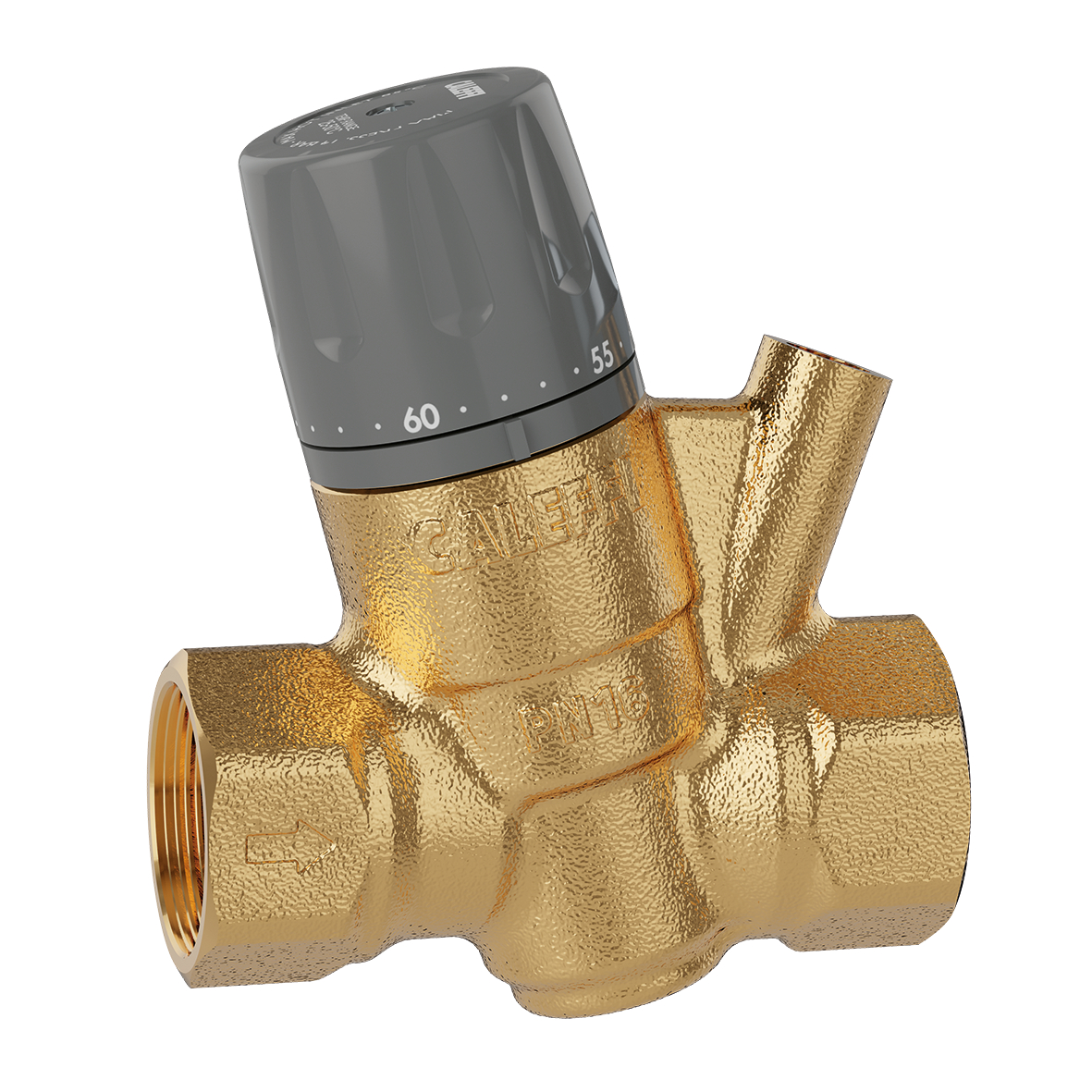

Thermostatic regulator for domestic hot water recirculation circuits.
Product Description
Thermostatic regulator for domestic hot water recirculation circuits.
With pocket for temperature gauge.
Technical data
Maximum working pressure:
16 bar
Material:
dezincification resistant brass DR "low lead"
Certifications
pdf
Drawings and specifications
| Part number | Connection | Adjustment temperature range | DN |
|---|---|---|---|
| 116440 | Rp 1/2" (EN 10226-1) F |
40–65 °C | DN 15 (body) |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Thermostatic regulator for domestic hot water recirculation circuits. With pocket for temperature gauge. Connection: Rp 1/2" (EN 10226-1) F. Maximum working pressure: 16 bar. Adjustment temperature range: 40–65 °C. DN: DN 15 (body). Material: dezincification resistant brass DR "low lead".
SCIP code
CODICE IN FASE DI ANALISI
|
|||
| 116450 | Rp 3/4" (EN 10226-1) F |
40–65 °C | DN 20 (body) |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Thermostatic regulator for domestic hot water recirculation circuits. With pocket for temperature gauge. Connection: Rp 3/4" (EN 10226-1) F. Maximum working pressure: 16 bar. Adjustment temperature range: 40–65 °C. DN: DN 20 (body). Material: dezincification resistant brass DR "low lead".
SCIP code
CODICE IN FASE DI ANALISI
|
|||
bim
igs
stp
