Series 630

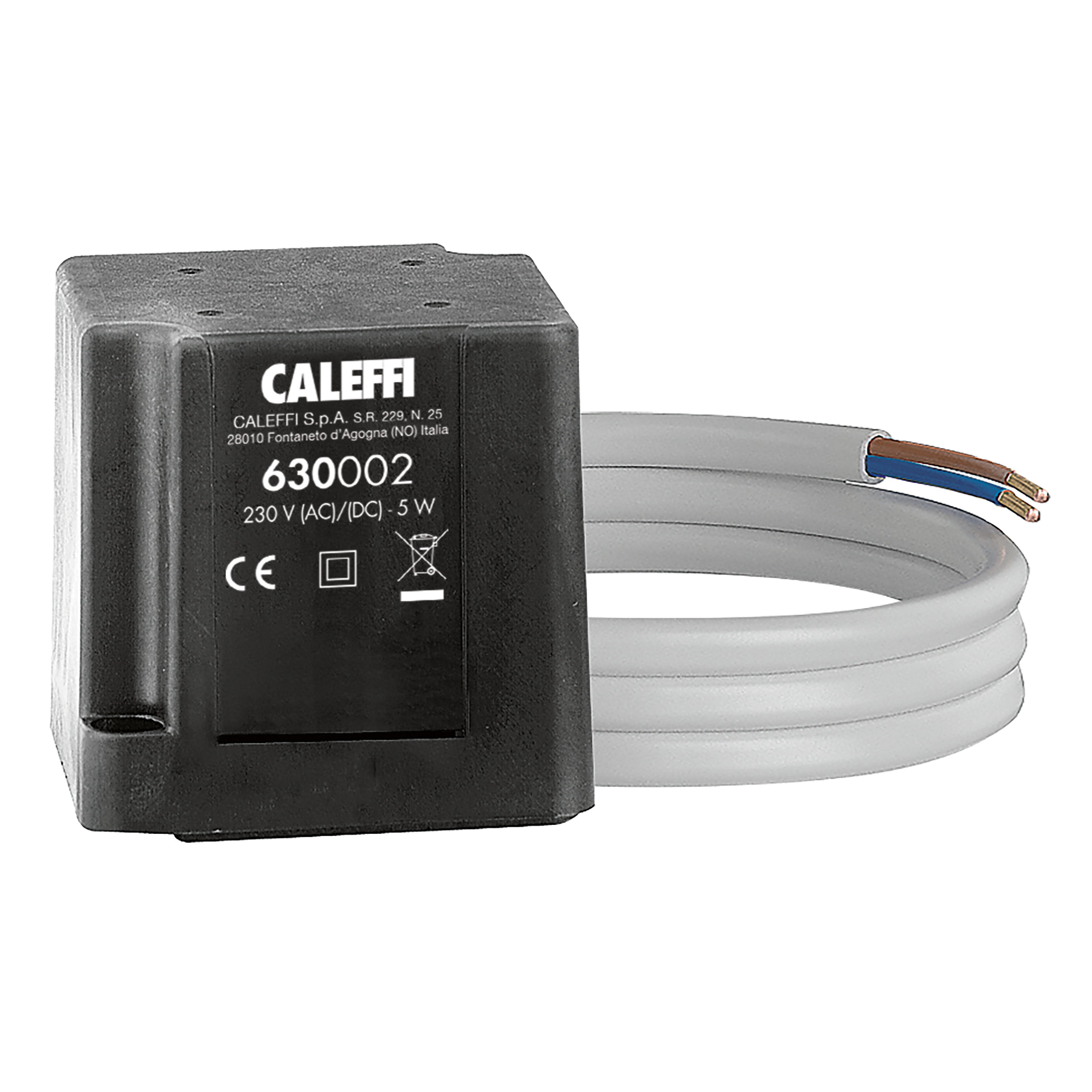

Thermo-electric actuator.

Go to

Download high resolution

Product Description

Thermo-electric actuator.
For zone valves 632 and 633 series.
Normally closed.

Technical data

Ambient temperature range: 0–55 °C

Protection class: IP 42

Certifications

Download

Drawings and specifications

Part number	Electric supply	Running power consumption	Starting current
630002	230 V AC/DC	5 W	≤ 1 A
2D drawings pdf Download this file dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/630002%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/630002%20%28dxf%29.dxf 3D models igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/630002%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/630002%20%28stp%29.stp bim Tender text Thermo-electric actuator. For zone valves 632 and 633 series. Normally closed. Ambient temperature range: 0–55 °C. Electric supply: 230 V AC/DC. Running power consumption: 5 W. Protection class: IP 42. Starting current: ≤ 1 A. SCIP code 957237bb-bf79-45bc-b0a7-38ee27802a52
