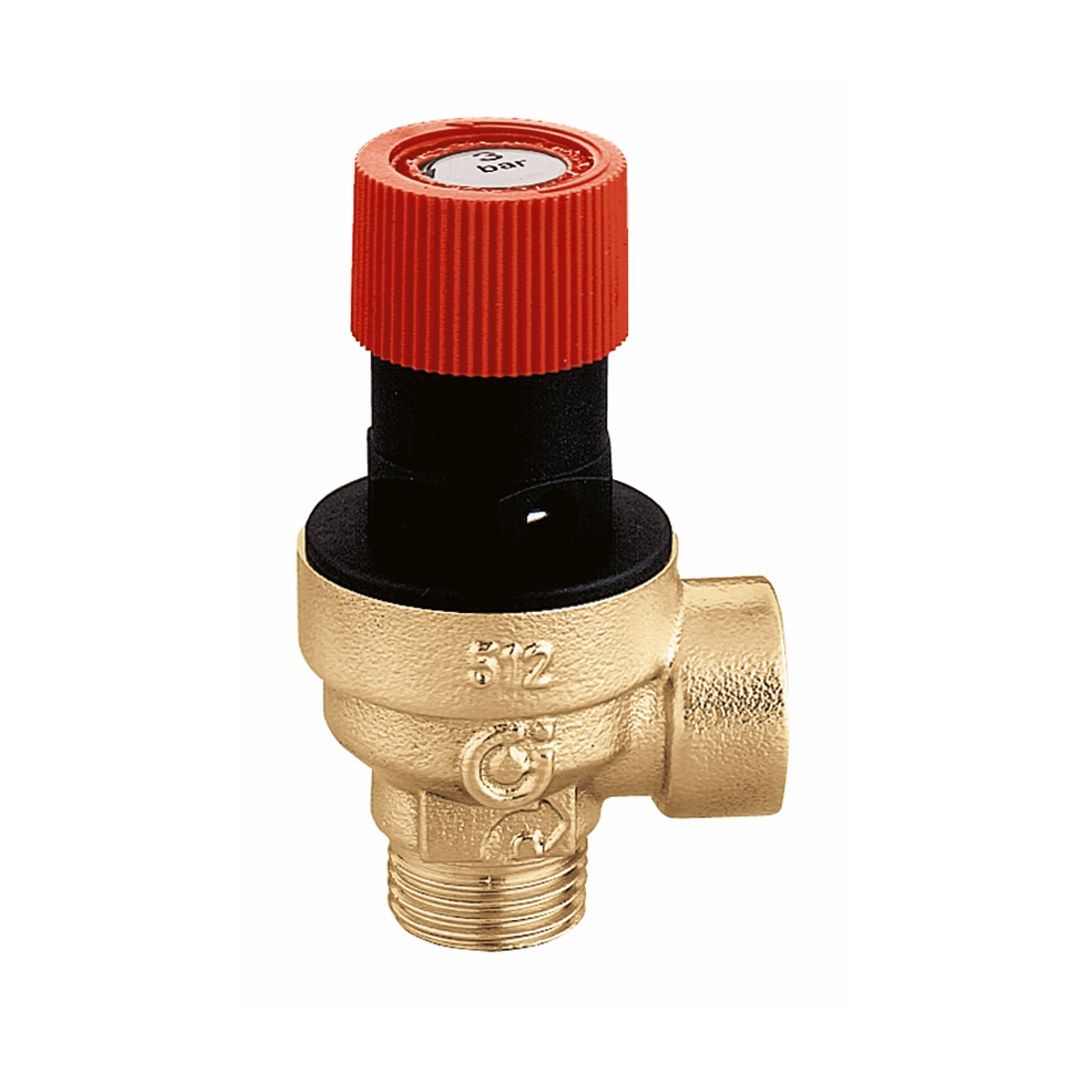

Safety relief valve, male - female connections.
Product Description
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %.
Technical data
Nominal pressure:
PN 10
Medium temperature range:
5–110 °C
Certifications
pdf
Drawings and specifications
| Part number | Connection | Drain connection | Pressure setting | Actions |
|---|---|---|---|---|
| 514420 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
2 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 514420.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 2 bar. Nominal pressure: PN 10.
SCIP code
166a139e-da87-45a8-bc08-053402516c16
|
||||
| 514425 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
2,5 bar | |
|
2D drawings
dxf
Share this file
Download this file
dwg
Share this file
Download this file
3D models
Tender text
CALEFFI, 514425.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 2,5 bar. Nominal pressure: PN 10.
SCIP code
c1020c9a-3c8b-42a8-b070-89726e6522a2
|
||||
| 514430 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
3 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 514430.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 3 bar. Nominal pressure: PN 10.
SCIP code
5e5d92b0-1427-4855-98ad-768710c5f140
|
||||
| 514435 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
3,5 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 514435.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 3,5 bar. Nominal pressure: PN 10.
SCIP code
2716b301-44a0-4588-a2e4-aeb7e029aefb
|
||||
| 514440 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
4 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 514440.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 4 bar. Nominal pressure: PN 10.
SCIP code
30a29881-8a9b-4060-8f94-d2686b4f7176
|
||||
| 514450 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
5 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 514450.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 5 bar. Nominal pressure: PN 10.
SCIP code
5c283db5-9c71-4459-9a92-97fc697b8235
|
||||
| 514460 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
6 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 514460.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 6 bar. Nominal pressure: PN 10.
SCIP code
b8459c77-4e8e-4e69-a1ed-d8d9bd8a89d1
|
||||
| 514470 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
7 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 514470.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 7 bar. Nominal pressure: PN 10.
SCIP code
c9f3e3a2-bd19-4814-98d7-ff8034fed820
|
||||
| 514480 | G 1/2" A (ISO 228-1) M |
G 1/2" (ISO 228-1) F |
8 bar | |
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
CALEFFI, 514480.
Safety relief valve, male - female connections.
Discharge overpressure: 20 %.
Closing differential: 20 %. Connection: G 1/2" A (ISO 228-1) M. Drain connection: G 1/2" (ISO 228-1) F. Medium temperature range: 5–110 °C. Pressure setting: 8 bar. Nominal pressure: PN 10.
SCIP code
d00545f8-31a6-479b-aa29-ed504a09edee
|
||||
