Series 626

Flow switch.

Download high resolution

Product Description

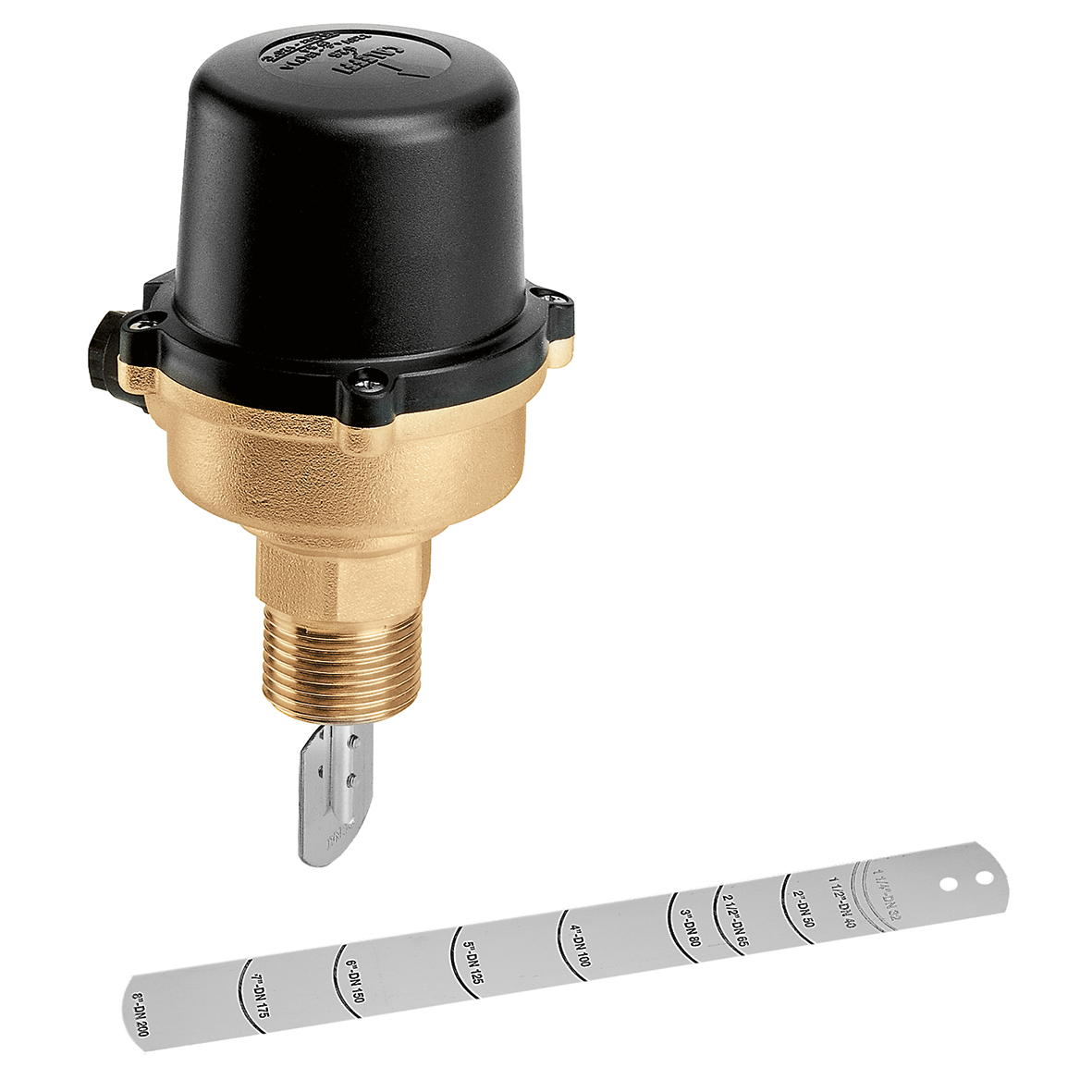

Flow switch.
For pipes from 1" to 8".

Technical data

Maximum working pressure: 10 bar

Medium temperature range: -30–120 °C

Protection class: IP 54

Contact rating (250 V): 15 (5) A

Certifications

Download

Application diagrams

10.10 - CHS with null flow rate boiler and built-in outside compensated thermal…

10.15 - CHS with 2 null flow rate boiler and built-in outside compensated therm…

10.35 - CHS with 2 thermal moduls and built-in outside compensated thermal regu…

20.40 - CHS with biomass and traditional fuel boilers with DHW production in CH…

20.45 - CHS with biomass and traditional fuel boilers without DHW production in…

Drawings and specifications

Part number	Connection	Note
626600	G 1" A (ISO 228-1) M	-
2D drawings pdf Download this file dwg Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/626600%20%28dwg%29.dwg dxf Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/626600%20%28dxf%29.dxf 3D models stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/626600%20%28STP%29.stp igs Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/626600%20%28igs%29.igs stp Share this file Download this file Share Facebook Linkedin Twitter https://www.caleffi.com/sites/default/files/media/external-drawing/626600%20%28stp%29.stp bim Tender text Flow switch. For pipes from 1" to 8". Connection: G 1" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: -30–120 °C. Protection class: IP 54. Contact rating (250 V): 15 (5) A. SCIP code e9b55fcb-c9c2-4a1a-9ed1-bb10a6bb65c0
