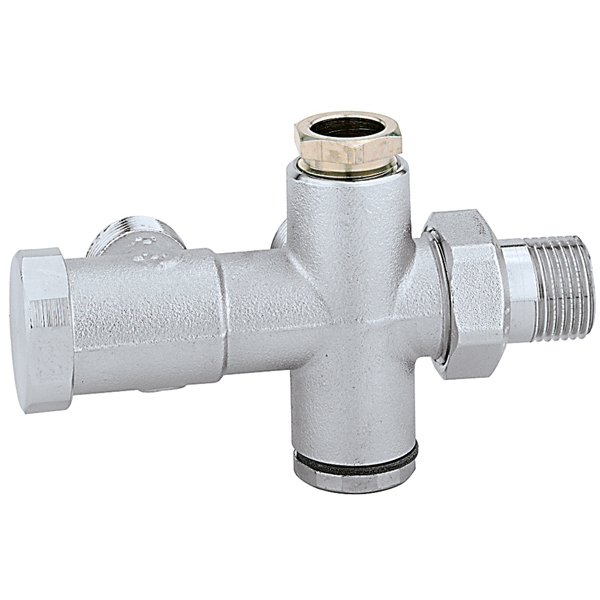

Radiator valve for one-pipe systems.
Product Description
Radiator valve for one-pipe systems.
Complete with:
- template;
- wall-covering plate;
- probe connection.
For outside probe Ø 15 mm (454 Series). For copper, plastic and multilayer plastic pipes.
Wall connections.
Flow rate to the radiator: 50 %.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
5–100 °C
Outlet centre distance:
40 mm
Finish:
chrome plated
Material:
brass
pdf
Drawings and specifications
| Part number | Radiator connection | Pipe connection | Kv |
|---|---|---|---|
| 452400 | G 1/2" A (ISO 228-1) M end outlet |
23 p. 1,5 inlet |
2,2 m³/h |
|
3D models
Tender text
Radiator valve for one-pipe systems. Complete with:
- template;
- wall-covering plate;
- probe connection.
For outside probe Ø 15 mm (454 Series). For copper, plastic and multilayer plastic pipes.
Wall connections.
Flow rate to the radiator: 50 %. Radiator connection: G 1/2" A (ISO 228-1) M, end outlet. Pipe connection: 23 p. 1,5, inlet, Connection for Caleffi fittings. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Outlet centre distance: 40 mm. Finish: chrome plated. Kv: 2,2 m³/h. Material: brass.
