Pair of fast-plug pressure/temperature test ports.
Product Description

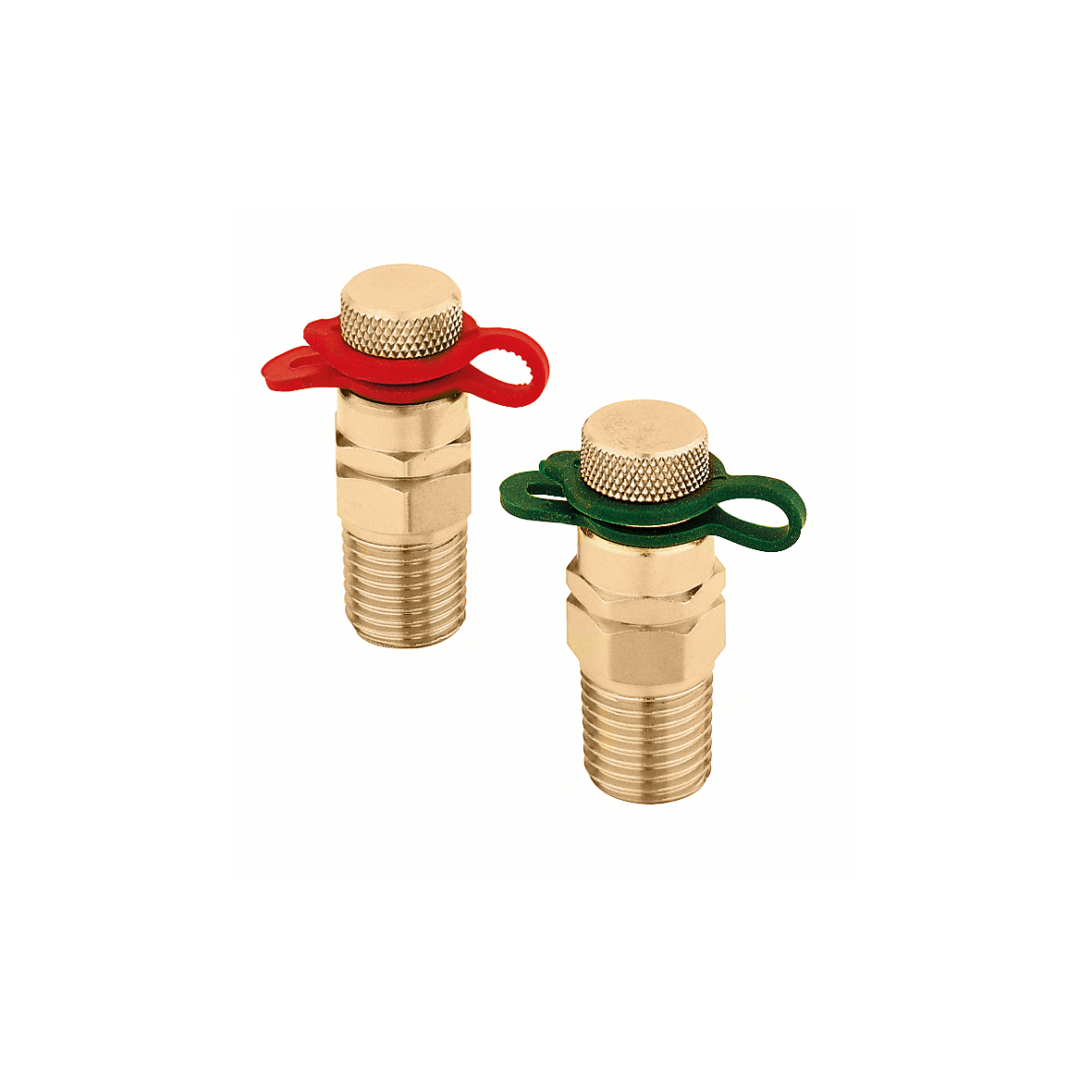

Pair of fast-plug pressure/temperature test ports.
Cap cover facing available in:
- Red for upstream pressure test port.
- Green for downstream pressure test port.
EPDM seals.
Technical data
Maximum working pressure:
30 bar
Medium temperature range:
-5–130 °C
Material:
brass
Note
Their special construction allows rapid and accurate measurements while ensuring leaktightness.
Can be used for:
- checking the working range of AUTOFLOW®;
- checking the clog degree of strainers;
- checking the heat output of the terminals.
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 100000 | G 1/4" A (ISO 228-1) M |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Pair of fast-plug pressure/temperature test ports. Cap cover facing available in:
- Red for upstream pressure test port.
- Green for downstream pressure test port.
EPDM seals. connection: G 1/4" A (ISO 228-1) M. Maximum working pressure: 30 bar. Medium temperature range: -5–130 °C. Material: brass.
|
|||
igs
stp
bim
Pipe Sizer Caleffi
This application allows for sizing and making calculations for pipes and conduits carrying water or air, respectively for hydraulic or aeraulic plants.
