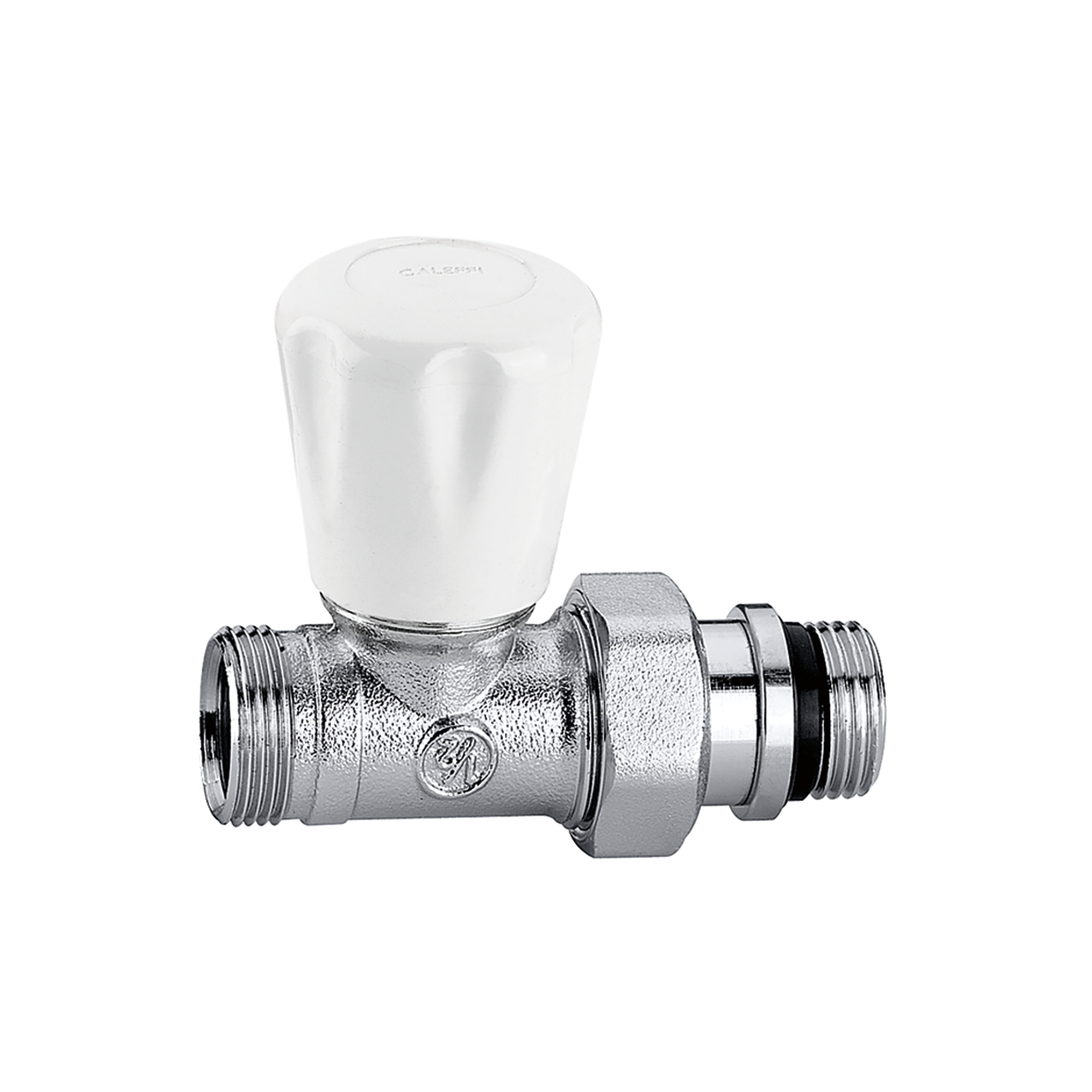

Manual radiator valve. Straight version.
Product Description
Manual radiator valve. Straight version.
For copper, plastic and multilayer plastic pipes.
Technical data
Maximum working pressure:
10 bar
Medium temperature range:
5–100 °C
Finish:
chrome plated
Material:
brass
pdf
Drawings and specifications
| Part number | Radiator connection | Pipe connection | Kv |
|---|---|---|---|
| 341302 | G 3/8" A (ISO 228-1) M end outlet, straight connection |
23 p. 1,5 inlet, straight connection |
1,32 m³/h |
|
3D models
Tender text
CALEFFI, 341302.
Manual radiator valve. Straight version.
For copper, plastic and multilayer plastic pipes. Radiator connection: G 3/8" A (ISO 228-1) M, end outlet, straight connection. Pipe connection: 23 p. 1,5, inlet, straight connection, Connection for Caleffi fittings. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Finish: chrome plated. Kv: 1,32 m³/h. Material: brass.
SCIP code
8331da42-b020-454e-9866-c1fed61bcd37
|
|||
| 341402 | G 1/2" A (ISO 228-1) M end outlet, straight connection |
23 p. 1,5 inlet, straight connection |
2,17 m³/h |
|
3D models
Tender text
CALEFFI, 341402.
Manual radiator valve. Straight version.
For copper, plastic and multilayer plastic pipes. Radiator connection: G 1/2" A (ISO 228-1) M, end outlet, straight connection. Pipe connection: 23 p. 1,5, inlet, straight connection, Connection for Caleffi fittings. Maximum working pressure: 10 bar. Medium temperature range: 5–100 °C. Finish: chrome plated. Kv: 2,17 m³/h. Material: brass.
SCIP code
7ac9f108-dd57-4fbc-8db2-74ace13cbc0f
|
|||
