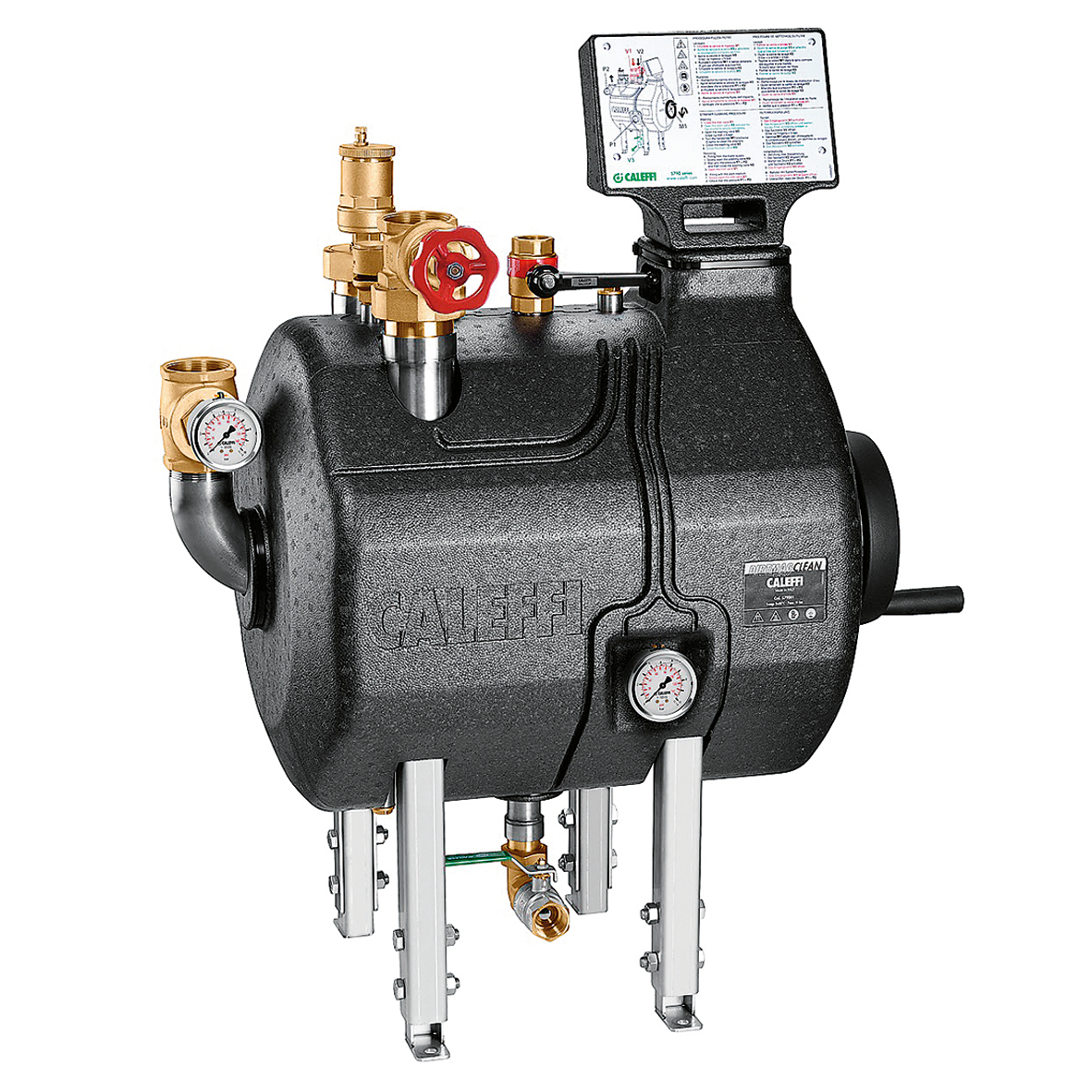

DIRTMAG®CLEAN, Manual cleaning dirt separator filter with magnet.
Product Description
Manual cleaning dirt separator filter with magnet.
Body and support feet in stainless steel AISI 304.
Particle separation rating down to 2 μm.
Suitable for the addition of chemical additives.
With insulation.
PATENT PENDING
Technical data
Medium temperature range:
5–85 °C
Maximum working pressure:
10 bar
pdf
Drawings and specifications
| Part number | Inlet connection | Outlet connection | Drain connection | Actions |
|---|---|---|---|---|
| 579001 | G 2" (ISO 228-1) F |
G 2" (ISO 228-1) F |
G 1" (ISO 228-1) F |
|
|
Flushing connection
G 1" A (ISO 228-1) M
|
Kv
45 m³/h
|
|||
|
2D drawings
3D models
Tender text
CALEFFI, 579001, DIRTMAG®CLEAN.
Manual cleaning dirt separator filter with magnet.
With insulation.
Body and support feet in stainless steel AISI 304.
Particle separation rating down to 2 μm.
Suitable for the addition of chemical additives. Inlet connection: G 2" (ISO 228-1) F. Outlet connection: G 2" (ISO 228-1) F. Drain connection: G 1" (ISO 228-1) F. Flushing connection: G 1" A (ISO 228-1) M. Maximum working pressure: 10 bar. Medium temperature range: 5–85 °C. Kv: 45 m³/h.
