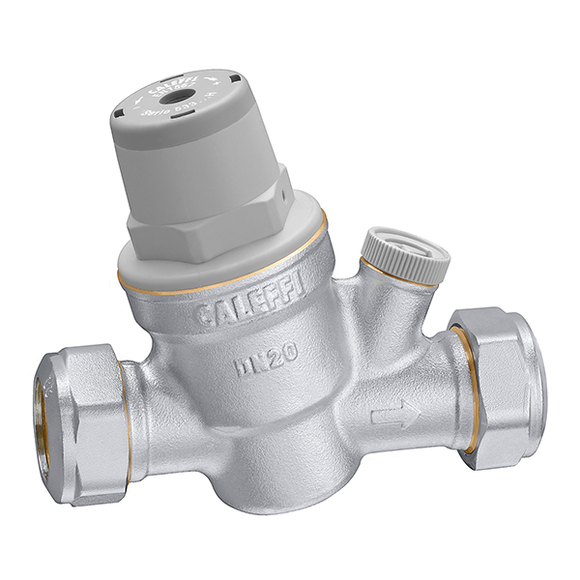

Inclined pressure reducing valve with compression ends.
Product Description
Inclined pressure reducing valve with compression ends.
Replaceable cartridge and strainer.
For high temperature.
With 1/4” F pressure gauge connection.
Certified to EN 1567 standard.
Technical data
Maximum upstream pressure:
16 bar
Medium temperature range:
2–80 °C
Adjustment pressure range:
1–5,5 bar
Finish:
chrome
Material:
dezincification resistant brass DR
Certifications
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 533741H | Ø 15 |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
igs
Share this file
Download this file
Tender text
Inclined pressure reducing valve with compression ends. Replaceable cartridge and strainer.
For high temperature.
With 1/4” F pressure gauge connection. Certified to EN 1567 standard. connection: Ø 15. Maximum upstream pressure: 16 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 1–5,5 bar. Finish: chrome. Material: dezincification resistant brass DR.
|
|||
| 533751H | Ø 22 |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
igs
Share this file
Download this file
Tender text
Inclined pressure reducing valve with compression ends. Replaceable cartridge and strainer.
For high temperature.
With 1/4” F pressure gauge connection. Certified to EN 1567 standard. connection: Ø 22. Maximum upstream pressure: 16 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 1–5,5 bar. Finish: chrome. Material: dezincification resistant brass DR.
|
|||
| 533761H | Ø 28 |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
igs
Share this file
Download this file
Tender text
Inclined pressure reducing valve with compression ends. Replaceable cartridge and strainer.
For high temperature.
With 1/4” F pressure gauge connection. Certified to EN 1567 standard. connection: Ø 28. Maximum upstream pressure: 16 bar. Medium temperature range: 2–80 °C. Adjustment pressure range: 1–5,5 bar. Finish: chrome. Material: dezincification resistant brass DR.
|
|||
