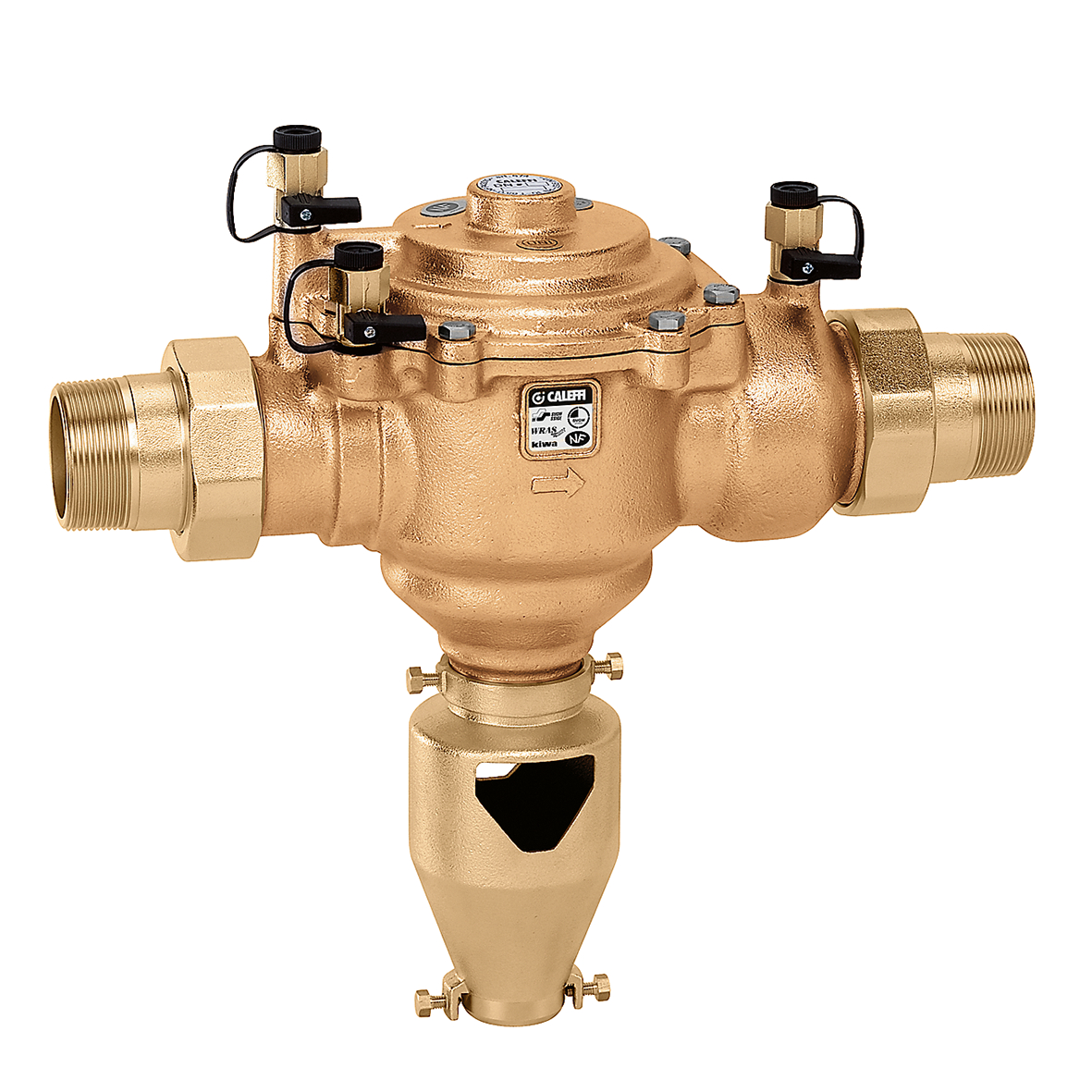

Controllable, reduced pressure zone backflow preventer, standard version. Bronze body.
Product Description
Controllable, reduced pressure zone backflow preventer, standard version. Bronze body.
Upstream of the backflow preventer is mandatory to install a strainer 577 series.
BA type.
Certified to EN 12729.
Technical data
Differential operating pressure:
14 kPa
Medium temperature range:
5–65 °C
Nominal pressure:
PN 10
Material:
bronze
Certifications
pdf
Drawings and specifications
| Part number | Connection | ||
|---|---|---|---|
| 574800 | R 1 1/2" (EN 10226-1) M union |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Controllable, reduced pressure zone backflow preventer, standard version. Bronze body.
Upstream of the backflow preventer is mandatory to install a strainer 577 series.
BA type. Certified to EN 12729. Connection: R 1 1/2" (EN 10226-1) M, union. Differential operating pressure: 14 kPa. Medium temperature range: 5–65 °C. Nominal pressure: PN 10. Material: bronze.
SCIP code
8a8af457-2ed8-4257-9c6b-1fee74114111
|
|||
| 574900 | R 2" (EN 10226-1) M union |
||
|
2D drawings
dwg
Share this file
Download this file
dxf
Share this file
Download this file
3D models
Tender text
Controllable, reduced pressure zone backflow preventer, standard version. Bronze body.
Upstream of the backflow preventer is mandatory to install a strainer 577 series.
BA type. Certified to EN 12729. Connection: R 2" (EN 10226-1) M, union. Differential operating pressure: 14 kPa. Medium temperature range: 5–65 °C. Nominal pressure: PN 10. Material: bronze.
SCIP code
6c4fdce8-a73d-4eb6-b187-2c649f875d47
|
|||
